Overview

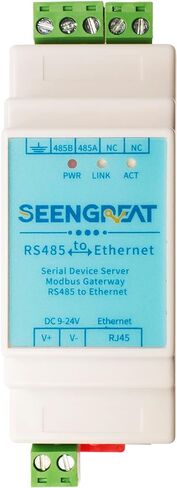

RS485 TO ETH RAIL is a kind of RS485 device collector/IoT gateway specifically designed for industrial environments, which is multi-functional, such as integrating serial server, Modbus gateway, MQTT gateway, RS485 to JSON.
It features an RS485 interface and an Ethernet interface.

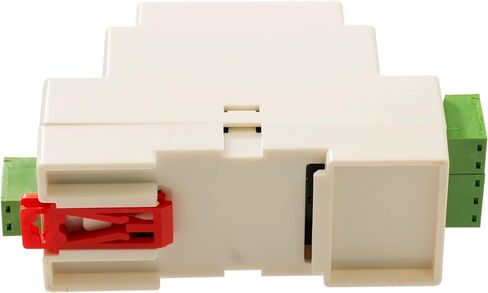

It uses the guide-way type installation way, which is small and easy to install.
Terminal type power supply access, 9~24V wide voltage input.
Since there is only an RS485 interface, the RS232 interface, which is not commonly used on industrial instruments, is canceled, saving cost and volume, and is low-cost and higher performance ration compared with ordinary products.

Specifications

Communication Interface: Terminal, Network Port
Power Supply:Terminal
Maximum Size: L × W × H = 10.6cm × 3.6cm × 5.9cm
Ethernet: RJ45 interface, 2KV surge protection

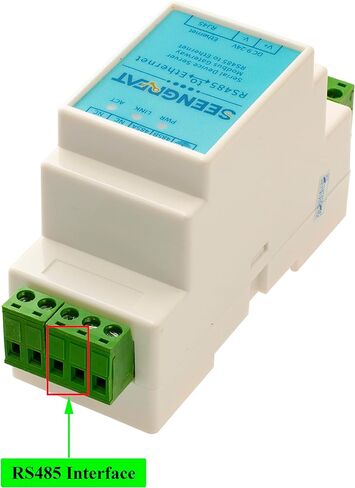

Serial: RS485×1: RXD, TXD, GND

Baud Rate: 300~115200bps
Data Bits: 5~9

Parity: None, Odd Check, Even Check, Mark, Space
Flow Control: None
Protocol: ETHERNET、IP、TCP、UDP、HTTP、ARP、ICMP、DHCP、DNS
Setting Method: VirCOM, WEB Browse, Device Management Library
Communication Method: TCP/IP direct communicate, Virtual Serial

Work Mode: TCP Server, TCP Client（coexisting with TCP serer), UDP, UDP multicast
Power Voltage: 9~24V DC
Running Temperature: -40~85℃

Package contents:
RS485 TO ETH x1

Note: Power supply is not included, it is recommended to use a 12V Industrial DIN-Rail Power Supply.
