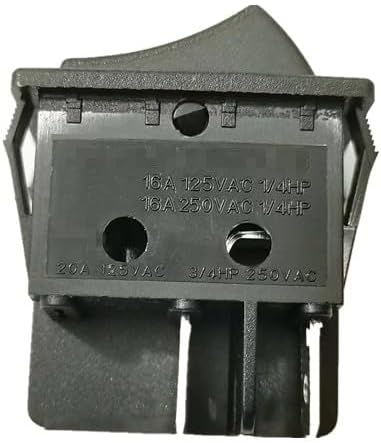

On Off الروك التبديل DPST 20A 16A 125 250VAC لقناة R سلسلة Hongju Taiheng TH3 Defond DRH-2415-3

KWD 6
– 1 +

مميزات خاصة

  • Ideal Replacement Switch: Works In Proofer Boxes and Fans, Boat Rocker Switch Is An Ideal Replacement For A Variety Applications. Works In A Variety of Appliances Including Proofer Boxes, Fans Etc. Replaces With Hongju R Series, Taiheng TH3, Defond DRH-2415-3.
  • Rating:16A 125/250VAC, 1/4HP(UL/CUL); 20A 125/250VAC, 3/4 HP(UL/CUL); 16(4)A 250VAC~T125/55(VDE/ENEC10/CQC).
  • Electrical Life: 6000(UL); 10000(VDE) Cycles.
  • Nylon PA66 Material: The Switch Made of High Quality Nylon PA66 Material. Rugged Mini Boat Rocker Switch Can Corrosion Resistant, Acid Resistant And High Silver Resistant Terminals.
  • Easy Installation Snaps Conveniently Into Appliance, Quick Connect Terminals.

وصف

* Material: PA66
* Color: Black
* RATING: 16A 125/250VAC, 1/4HP(UL/CUL); 20A 125/250VAC, 3/4 HP(UL/CUL); 16(4)A 250VAC~T125/55(VDE/ENEC10/CQC)
* Initial contact resistance: 20m ohm max.
* Insulation resistance: 100M ohm min, at 500VDC
* Dielectric strength: 1,000 VAC(UL), 3000VAC(VDE)for 1 minute
* Electrical life: 6000(UL); 10000(VDE) cycles
* UL recognized component, VDE & ENEC10 in Europe, CQC in Asia DPST Quick-connect terminals 105 Celcius
* Panel cut-out roughly: 22mm x 30mm (7/8" x 1 1/4")
* Bezel: 32mm x 25mm
Features:
-- It Is Made of High Quality Nylon PA66.
-- Replaces: Hongju R Series, Taiheng TH3, Defond DRH-2415-3.
-- NOTE: TOLERANCES UNLESS OTHERWISE SPECIFIED:
±0.12/0.3(in/mm).
Package Include:
* 1PC Black Switch
