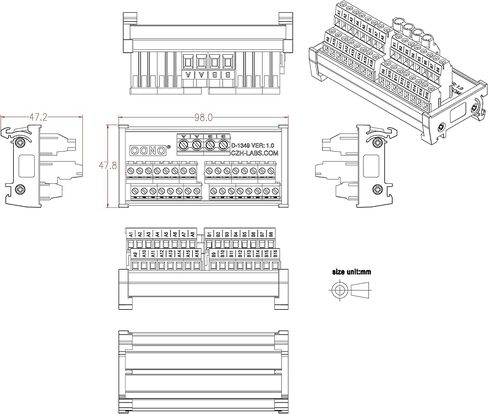

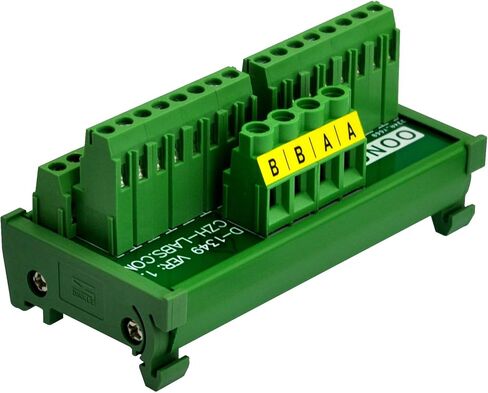

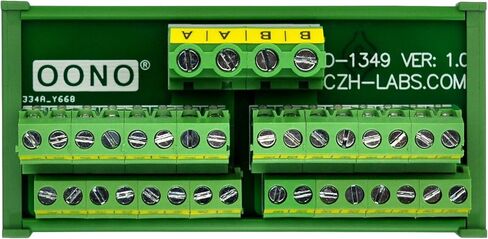

وحدة توزيع الطاقة للكتلة الطرفية اللولبية (موضع 2 × 16، حامل السكك الحديدية DIN)

KWD 7.500
ماركة
OONO
وزن
133 g
مقاسموقف 2x16
أسلوبجبل السكك الحديدية DIN
– 1 +

مميزات خاصة

  • Maximum Voltage: 250Vac/dc, Maximum Current Rating 40A(per channel).
  • Input terminals(A, B): pitch - 7.62mm/0.3", current 30A for per position(total 40A for A or B channel), wire size 26~10 AWG / 4.0mm square, stripping length 8mm, Metric M3 slotted screw.
  • Output terminals(A1~A16, B1~B16): pitch - 5.08mm/0.2", current 16A for per position(total 40A for A or B channel), wire size 28~12 AWG / 2.5mm square, stripping length 7mm, Metric M2.5 slotted screw.
  • FR-4 fiber glass PCB, dual copper layers.
  • High quality Taiwan fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm rail.

وصف

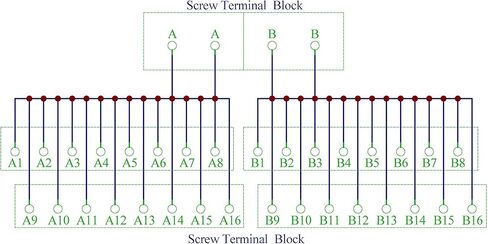

1, Maximum Voltage: 250Vac/dc, Maximum Current Rating 40A(per channel).
2, Input terminals(A, B): pitch - 7.62mm/0.3", current 30A for per position(total 40A for A or B channel), wire size 26~10 AWG / 4.0mm square, stripping length 8mm, Metric M3 slotted screw.

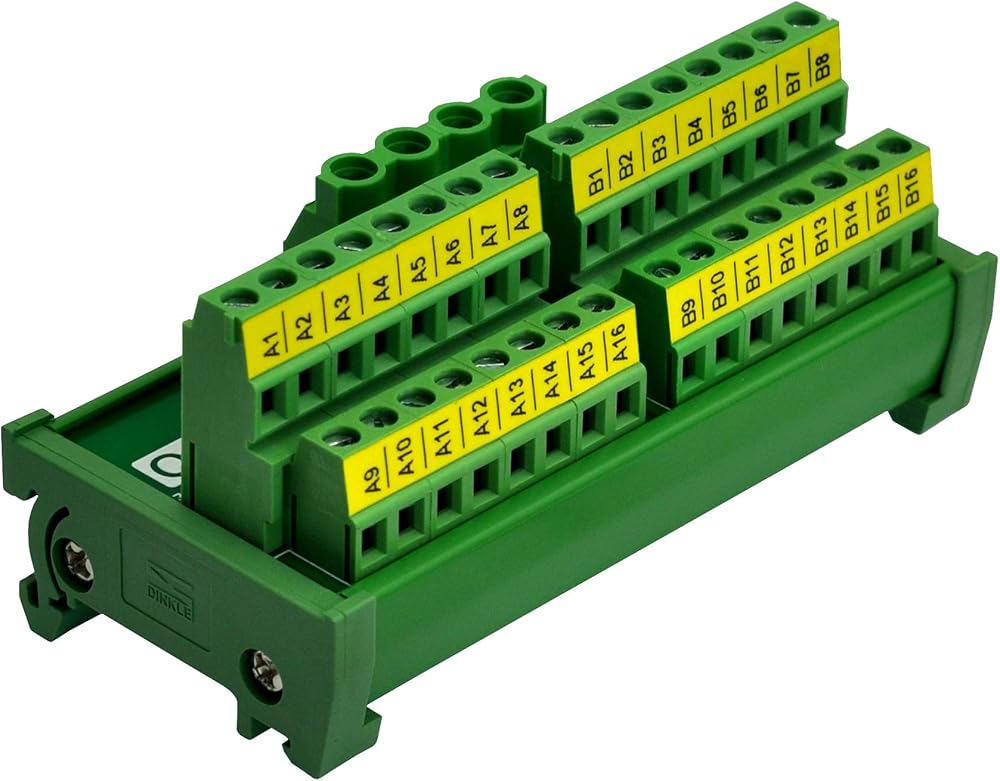

3, Output terminals(A1~A16, B1~B16): pitch - 5.08mm/0.2", current 16A for per position(total 40A for A or B channel), wire size 28~12 AWG / 2.5mm square, stripping length 7mm, Metric M2.5 slotted screw.
4, FR-4 fiber glass PCB, dual copper layers.

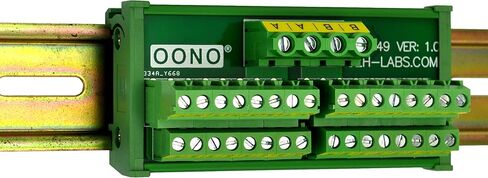

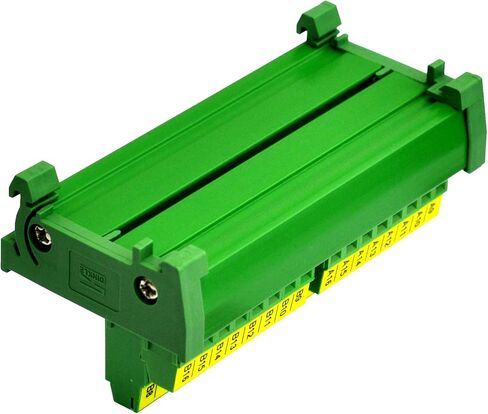

5, High quality Taiwan fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm rail.
