JIFETOR AC R134A Adjustable Quick Coupler Adapter and Refrigerant Can Tap Valve Tool Kit, Auto HVAC High Low Connectors with 1/4 inch Male Flare, Refrigerant Bottle Opener Dispenser with Tank Adapter
Adjustable AC R134A Quick Coupler: Adjustable function allows you to open and close easily by twisting the red/blue knob on the quick coupler adapters, rather than take them off from the service ports, reduces the wear for the schrader valve and prevent leakage when connect and disconnect. At the bottom of automotive air conditioner coupler, quick interface is designed for R134A service port, with accurate snap lock and knurled grip ring, easy to connect and disconnect.

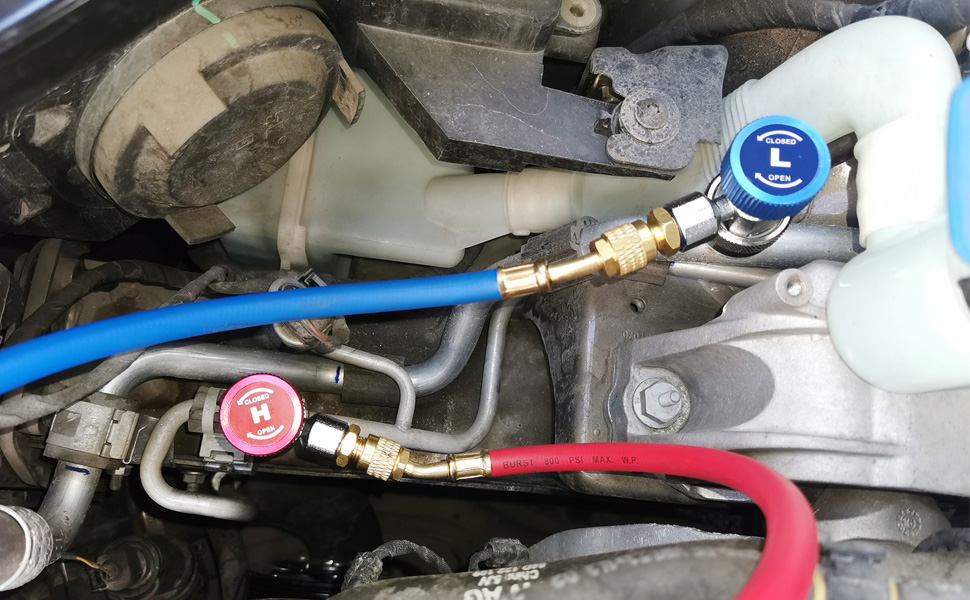

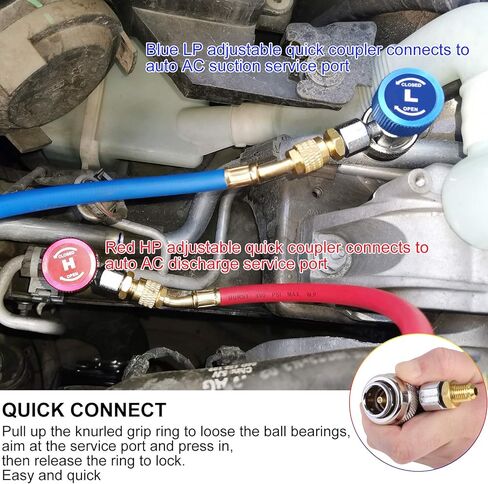

Usage of Refrigerant Coupler Connector: Red blue color coded high low couplers fit for all models with standard R134A service port. Connect blue coupler to AC suction service port and red one to discharge service port. Use 1/4 inch male flare to match 1/4 inch female fittings of AC manifold gauge hose, red to red, blue to blue. Clockwise for open and anticlockwise for close. Ideal fittings for AC evacuation (vacuum), diagnostic check, refrigerant charging and recovery work.

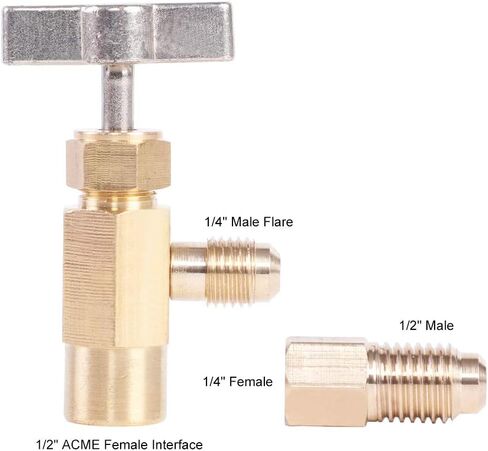

R134A Can Tap: 1/2 inch female interface on the bottom can be screwed to fix on 1/2 inch male thread refrigerant bottle opening. T type knobs, easy to operate by fingertips. Internal pin with sharp tip help to pierce R134A bottle easily and quickly. Use 1/4 inch male flare on the side to hook to 1/4 inch female fittings of AC manifold gauge hose directly, and use the included tank adapter (1/4 inch female to 1/2 inch male) to hook 1/2 inch female fittings of manifold gauge hose.
Usage of Self-Piercing Type Refrigerant Can Tap: Anticlockwise twist T handle of the ac dispenser to retract internal pin, fix on R134A can opening and hook to R134A charging hose. Then clockwise twist T handle until the pin punctures sweet spot of bottle opening, anticlockwise twist T handle let R134A fill the hose, and charge air conditioning. If nothing comes out, please try to loosen the hex nut under the T knobs.
What are Included: This is a air conditioning charging tool kit. You will get 1 red high side R134A adjustable quick coupler, 1 blue low side R134A adjustable quick coupler, 2 1/4" male flare adapters, 2 plastic caps for Male flare, 1 R134A ac self-piercing type can tap dispenser, 1 tank adapter (1/4" female to 1/2" male). Premium brass and aluminum material features with high hardness, wear resistance, anti-corrosion, with rubber sealing ring, ensure the gas tightness with no leak.
