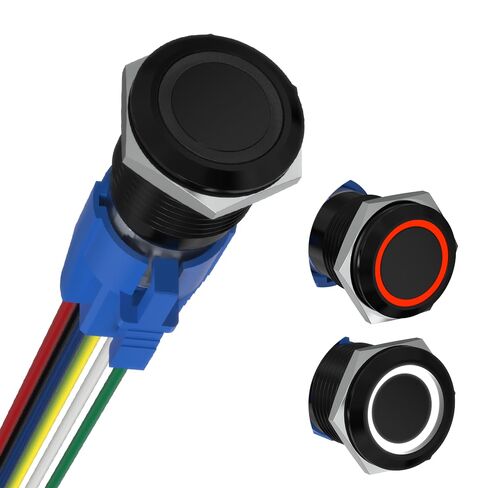

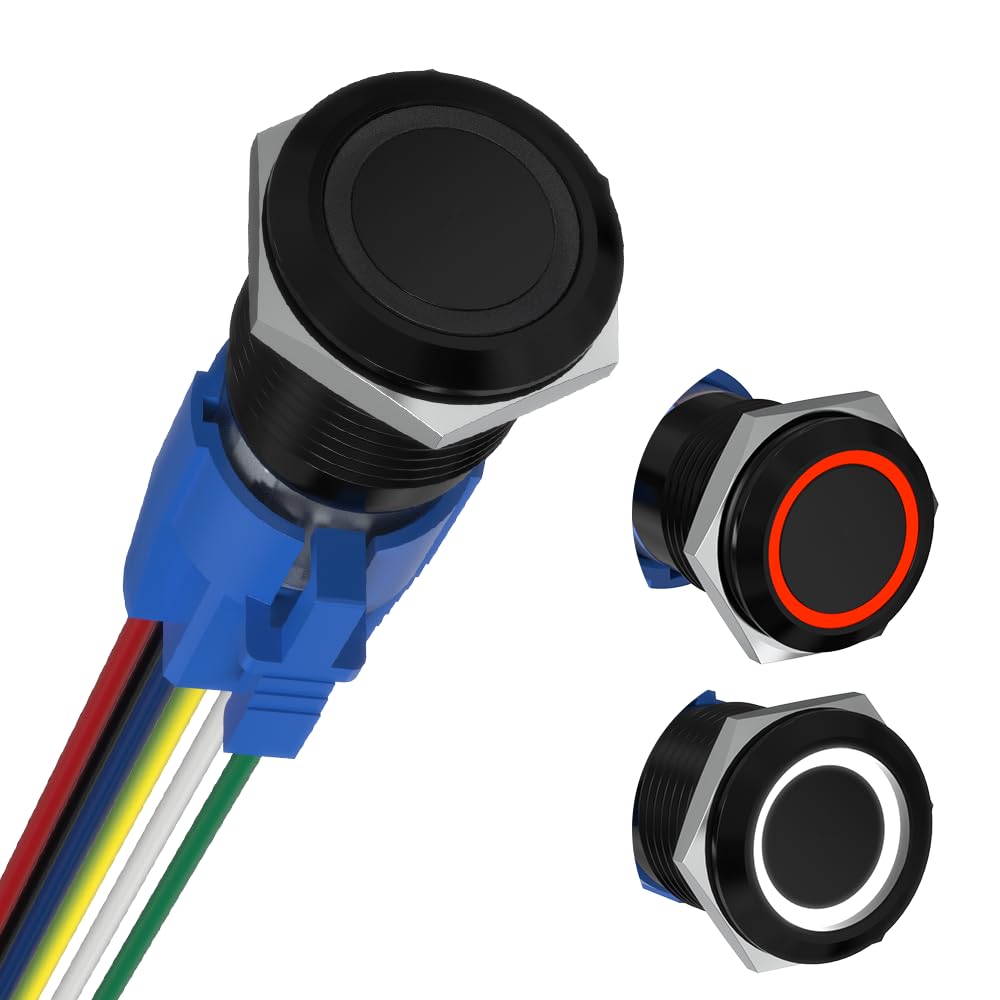

WERKI 16mm Latching Push Button Switch Red Green LED Light 5/8" Mounting Hole 1NO1NC SPDT IP67 Waterproof Black Finish Self-Locking Push Button Switch 12v(Red＆White/Black Finish)

Special Features

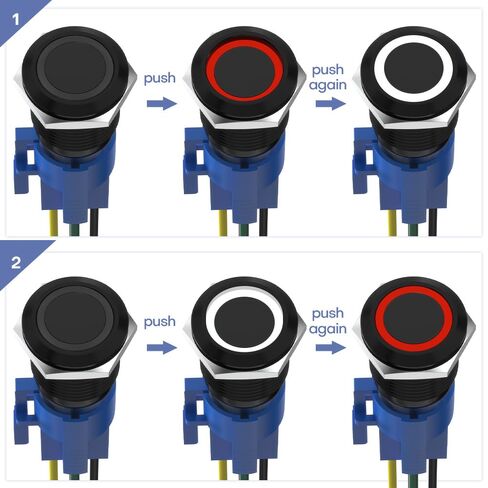

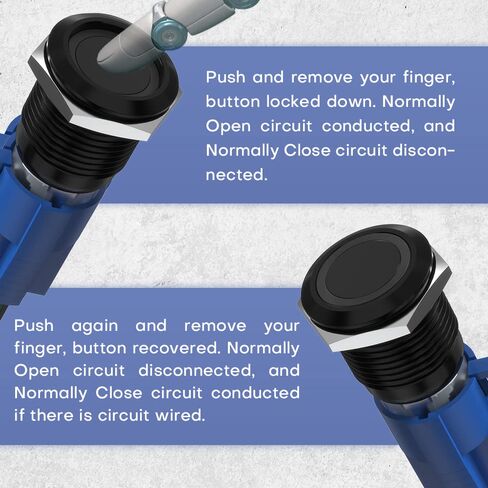

[Working Mode]: Push and Release, button locked, Normally Open Circuit ON. Push and Release again, button recovered, Normally Open Circuit OFF. Contact Configuration: 1NO1NC; SPDT ON/OFF Self-Locking. Used in Single circuit switch or DUAL circuit change-over.

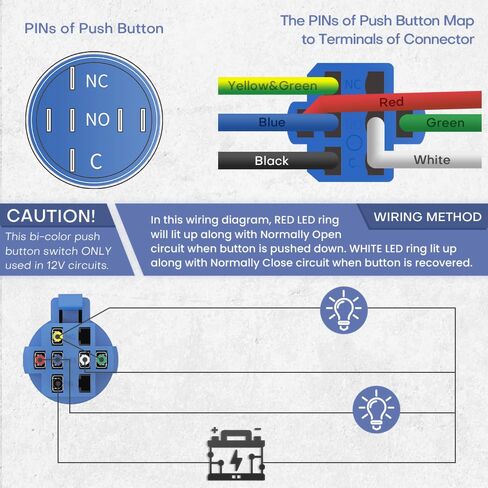

[LED Indication]: DC12V LED Ring. DO NOT connect to circuit voltage over 12V which will short the LED indicator. Indicator can be ALWAYS-ON or ON/OFF along with circuit.

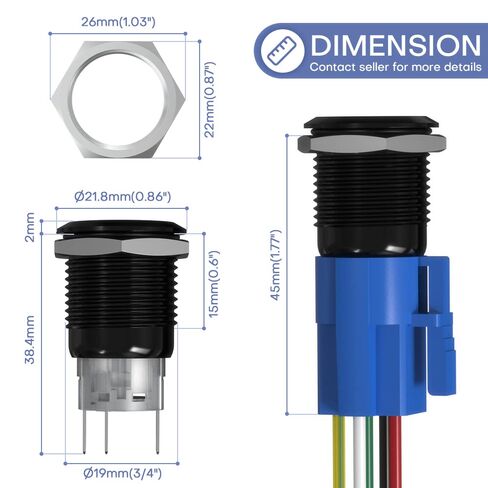

[Mounting]: Diameter size:19mm. Mounting hole diameter should be at least 19mm(0.75”) and Smaller than 19.2mm(0.76”).

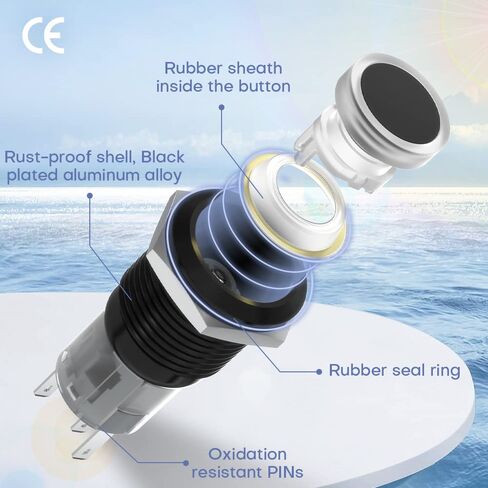

[Reliable Material]: Black finish aluminum alloy and tough plastic shell. 100,000 times electrical lifelong internal silver contact.
[Protection]: With IP67 grade protection, waterproof and anti-dust. The switch can work in wet condition but NOT under water.
[Quality Caring]: CE certified and 3-Year Care. Get a replacement if product does not work in 3 year except wrong wiring, overload device connected and physical damage.

Description

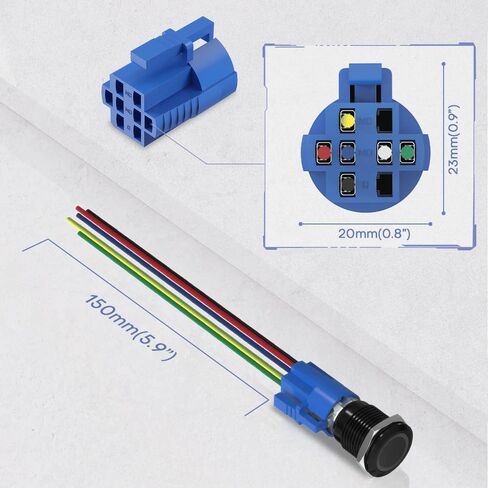

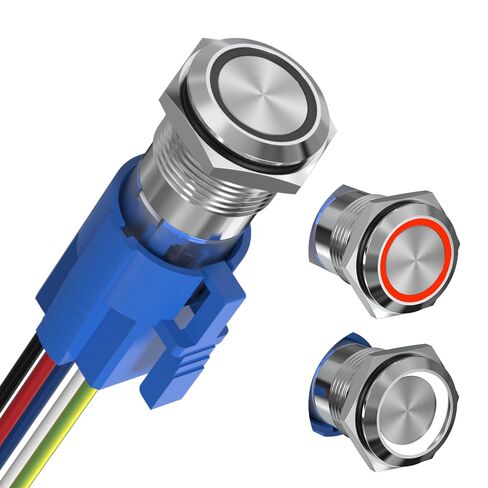

Button working type: Latching / Self-Locking. Mounting Hole Diameter: at least 19mm(0.75”) and Smaller than 19.2mm(0.76”). LED indicator: 12V DC/AC, DO NOT connect to circuit voltage over 12V which will short the LED indicator. Material: Stainless steel 304 or Black finish aluminum alloy; And plastic. Contact amps: 5 Amps. Contact Configuration: 1 Normally Open and 1 Normally Close. Contact Material: Silver alloy. Protection grade: IP67 & IK08. 100,000 Times Electric Work Life. Operating Temperature : -17℉ to 149℉. Package including: 1 x Push button switch 1 x Mounting nut 1 x Rubber seal ring 1 x Pigtail connector 1 x Wiring instruction
