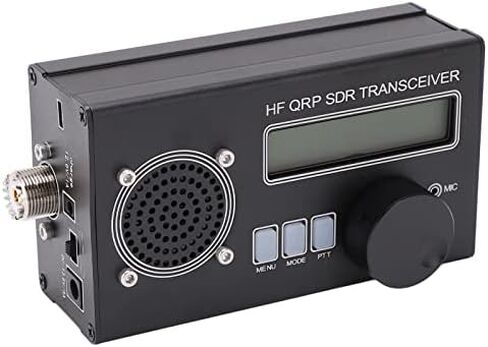

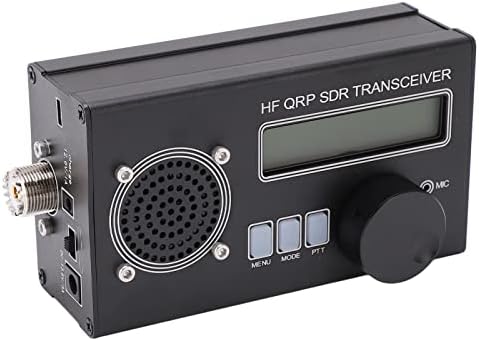

SDR Transceiver Radio Receiver HF QRP 8 Band SSB CW Shortwave Radio Receiver Transmitter Aluminium Alloy for DIY Radio Communication(US Plug)

KWD 66
Brand
Walfront
Category
Portable radios
Weight
0.9 kg
– 1 +

Special Features

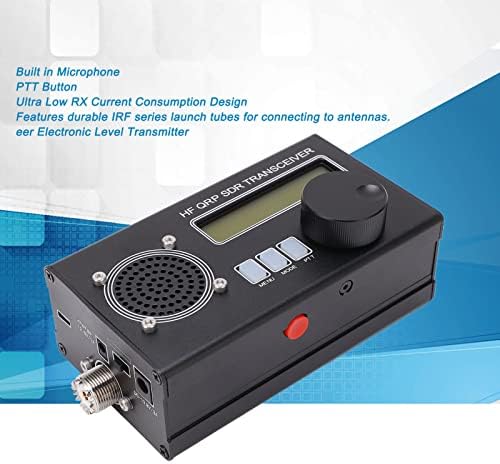

  • Reliable Work: A pocket sized 8 band SSB CW QRP transceiver designed with built in lithium battery, built in microphone, PTT button and extremely low RX current consumption, it is a good partner for SOTA, POTA or any other portable activities.
  • Better Design: This QRP SSB CW shortwave transceiver has a large screen, built in battery, charger, built in microphone and speaker. It can be connected to an automatic button. It can also be decode CW coding.

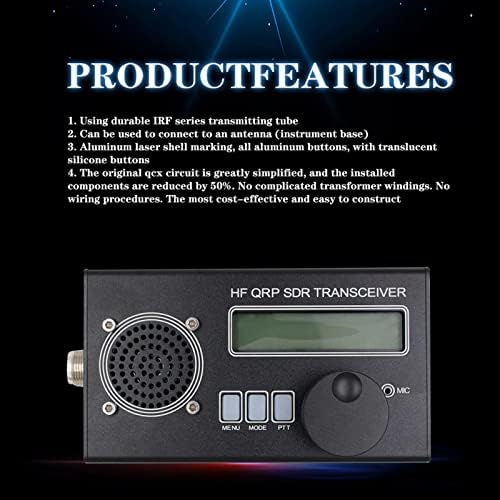

  • IRF Launch Tube: With IRF series launch tube, can be used to connect antenna, which is on the instrument base.
  • Simple Structure: All aluminum buttons and translucent silicone buttons, the original transformer qcx circuit is greatly simplified, and the installation components are reduced by 50%. No complicated windings. There is no wiring procedure.
  • High Efficiency: High power efficiency and simple design, thanks to eer electronic level transmitters, also very convenient to carry.

Description

Specification:
Item Type: SDR Transceiver
Material: Aluminium Alloy
Battery: 1 x 3500mAh lithium battery 605585, delivery with built in battery.

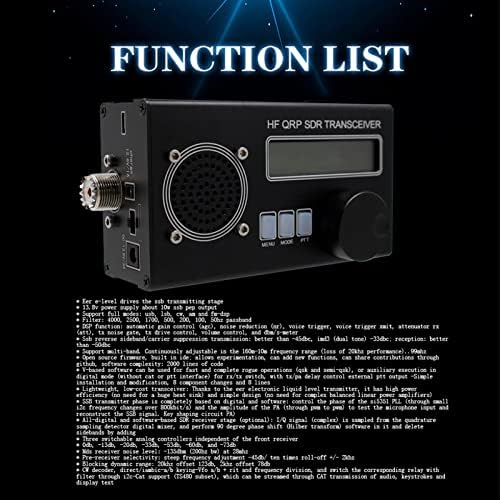

Function:
Radio Transceiver: A QRP SSB HF transceiver with embedded DSP and SDR functions.
Launch: EER E level driven SSB launch stage.
Output: 13.8V power supply provides about 10W PEP SSB output.
Full Mode Support: USB, LSB, CW, , FM
DSP Filter: 4000, 2500, 1700, 500, 200, 100, 50Hz passband.
DSP Function: Automatic gain control (AGC), noise reduction (NR), voice trigger, voice trigger Xmit (VOX), RX attenuator attenuator (ATT), noise gate, driver control, volume control, dBm S meter
SSB Reverse Sideband and Carrier Suppression Transmission: Better than -45dBc
Receiver Noise Level MDS: -135 dBm (200Hz BW) at 28MHz.
Receiver Front End Selectivity: Steep tuning frequency -45dB, ten times roll off +/- 2kHz
Blocking Dynamic Range: 20kHz offset 123dB, 2kHz offset 78dB.
CW Decoder: Straight, Iambic-A, B keyer, VFO A/B + RIT and Split, and switch the corresponding relay band filter through I2C

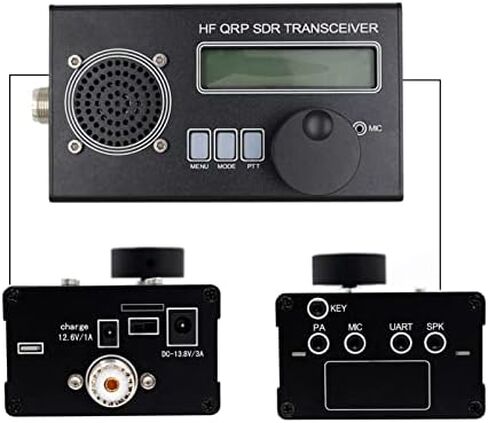

Switch: OFF to shut down.
BAT: Built in battery power supply.
13.8: External power supply
DC 13.8V 3A: External power supply port
KEY: Automatic key body connection, A, B, single key.
PA: External power amplifier, PTT .
MIC: External microphone port.
UART: Serial communication port, command compatible with TS-480.
SPK: External speaker.

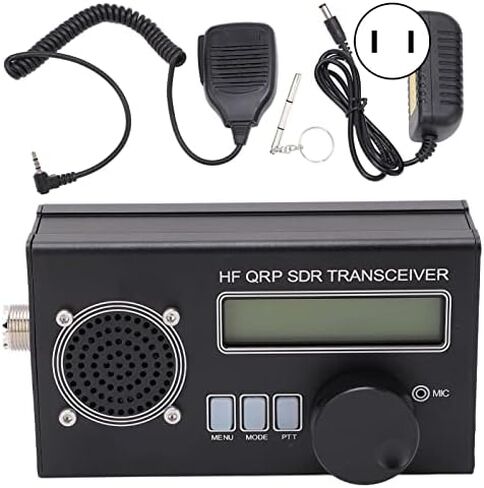

Package List:
1 x SDR Transceiver

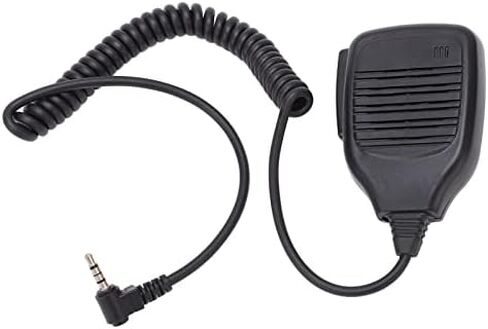

1 x Mic
1 x Charger
1 x 3 in 1 Screwdriver
