مميزات خاصة

This digital RC servo comes with metal gear and dual-ball bearings, which are well-made with exceptional performance, stability, and minimal noise output.
35kg Large Torque: This servo boasts an impressive maximum torque of 25KG.CM 7.4V, enhanced by its accompanying metal servo arm.
180°Rotation: The controllable angle range of the steering gear is 180 degrees, with good linearity and accurate control.

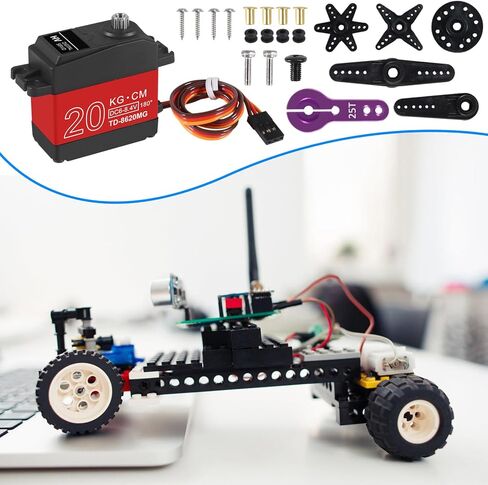

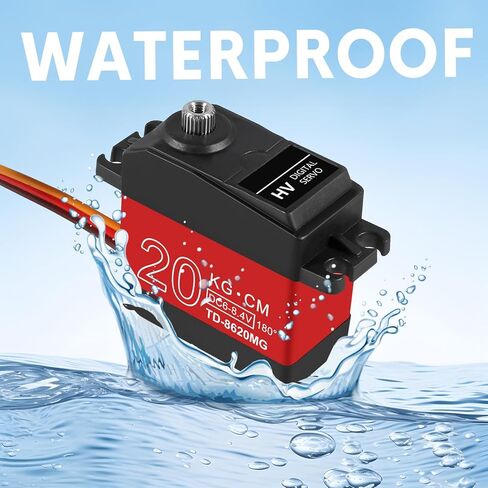

you will get 2PACK 25KG RC Servo High Torque Servo Motors, Waterproof Full Metal Gear Steering Servo for 1/6 1/8 1/10 1/12 RC Car Robot DIY, Digital Servo with 25T Servo Horn, Control Angle 180°
Great Compatible Servos : It fits 1/6 1/8 1/10 1/12 RC cars, robots. rc servo metal gear is compatible with car, trucks, robotic arms, mechanical arms, crawler, aircraft, boat.

وصف

25KG Servo Motors High Torque Digital Servo Metal Waterproof Servo for R/C Car Robot
Specification:
Product weight: 0.15Ib / 60g

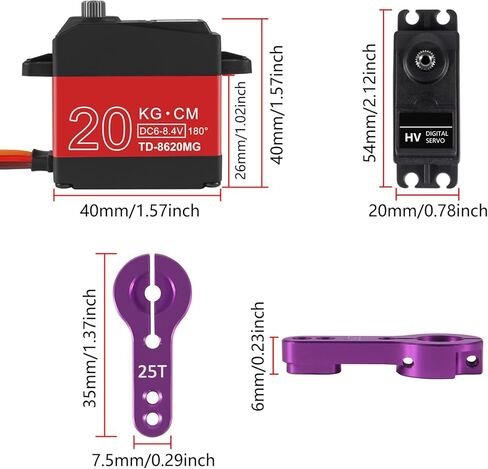

Product size: 1.57*0.8*1.50inch / 40*20*38mm
Operating speed (at no load):0.16 sec/60°(5V)/0.14sec/60°(7.4V)
Stall torque: 20 kg·cm (277.6 oz·in) @7.4V
Working Voltage: 6-8.4V
Stall current: 2.4~3A
No-load Current: 100mA
Servo Horn: 25T
Servo Wire: 30cm(11.8inch) in length
Control Method: PWM pulse width control
PWM pulse width range: 500~2500us,corresponding to 0~180°
Duty Ratio: 0.5ms~2.5ms
Pulse Period: 20ms
Rotation range: 0~180°
Servo accuracy: 0.3°

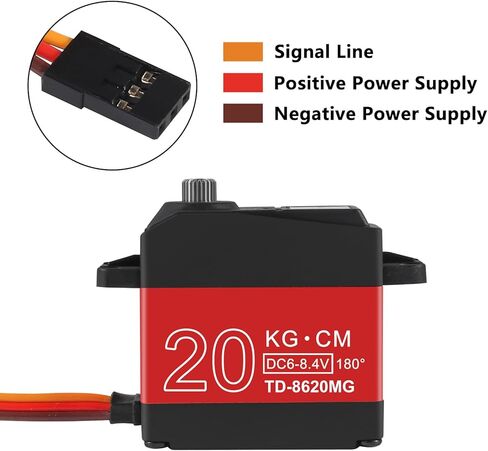

Wire Layout:
red wire: +;
black wire: GND;
white wire: PWM/signal

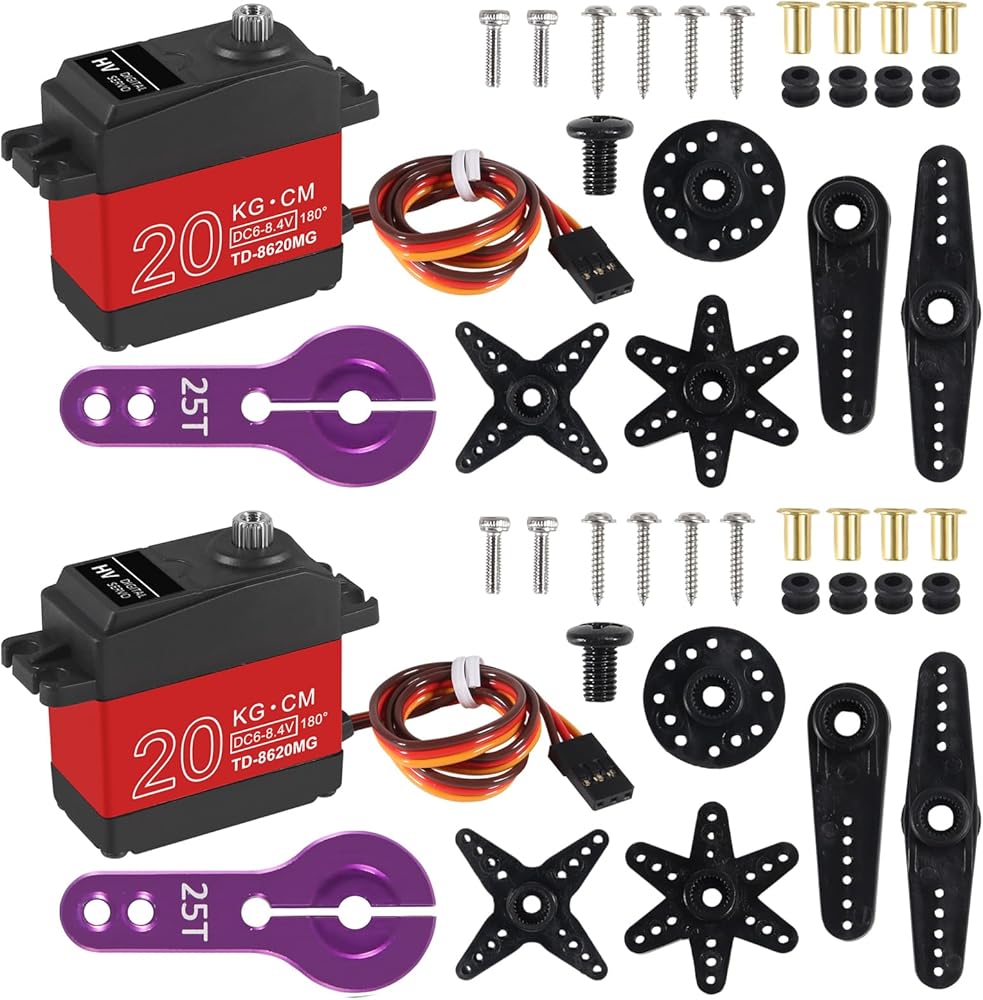

Package： 2PACK 25KG RC Servo High Torque Servo Motors
