BSIDE DC Clamp Meter 1mA Current True RMS Auto-Ranging 6000 Counts Digital Multimeter Hz Temp Cap Ohm Live Check V-Alert Low Impedance Voltage Tester with Back Clip

KWD 20.500

Brand
BSIDE
Category
Testers & Timers
Weight
137 g
ColorBlack
1 +

Special Features

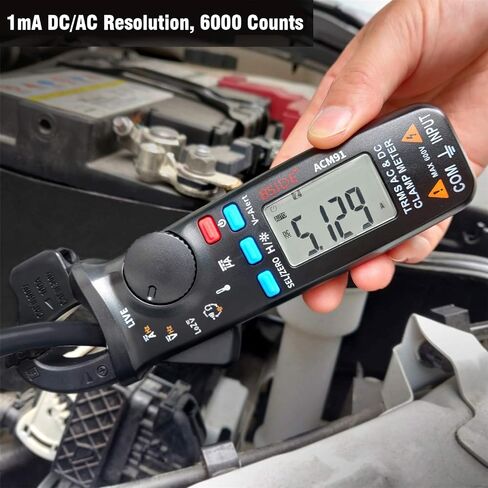

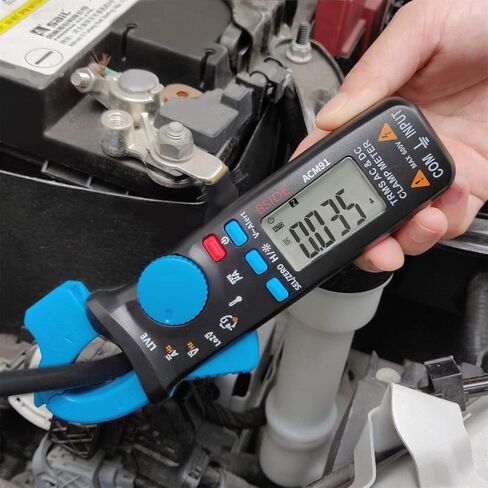

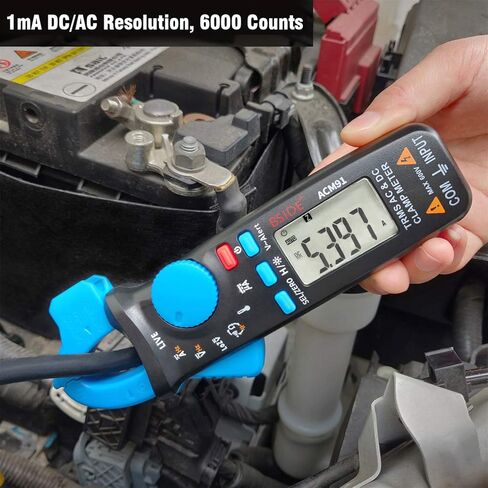

  • [1mA Resolution]: Delivers 1mA AC/DC resolution and sensitivity, which make it a great a tool for measuring such as parasitic draws.

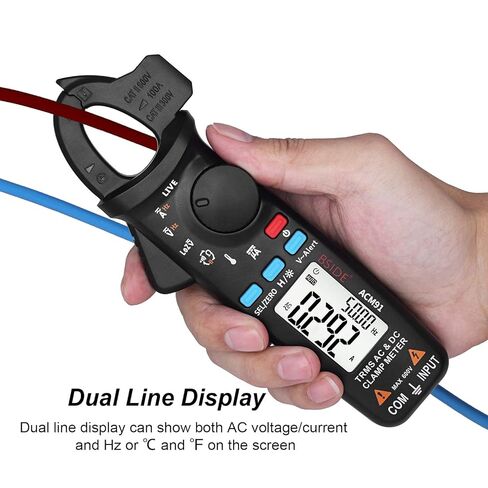

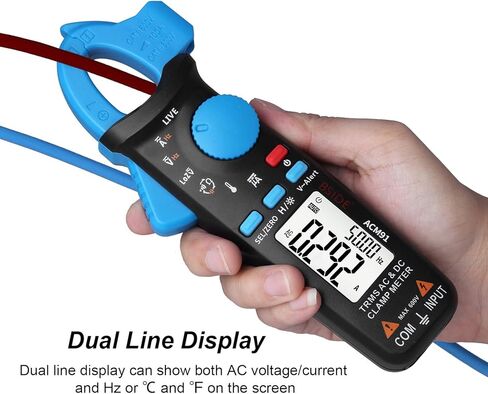

  • [Dual Line Display]: Dual line display can show both AC voltage/current and frequency or Celsius and Fahrenheit on the screen.
  • [Low Impedance Mode]: Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages.

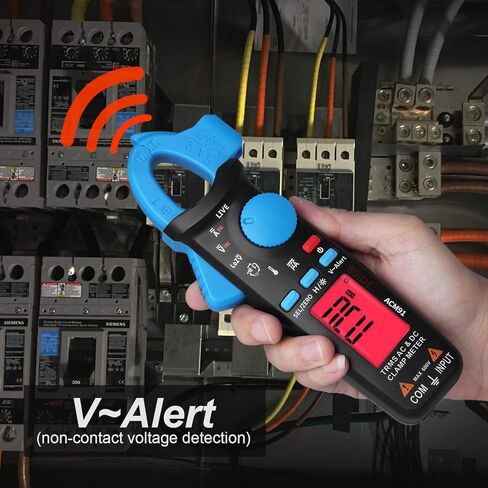

  • [Activate V-Alert at Any Function]: V-Alert function can be activated at any function not only greatly enhance testing experience, but also let you not worry voltage detector consumes too much space.

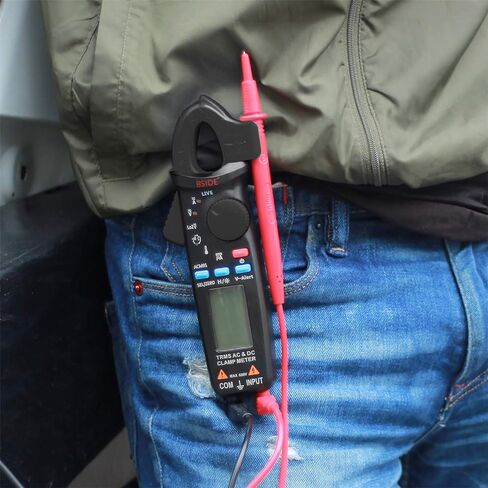

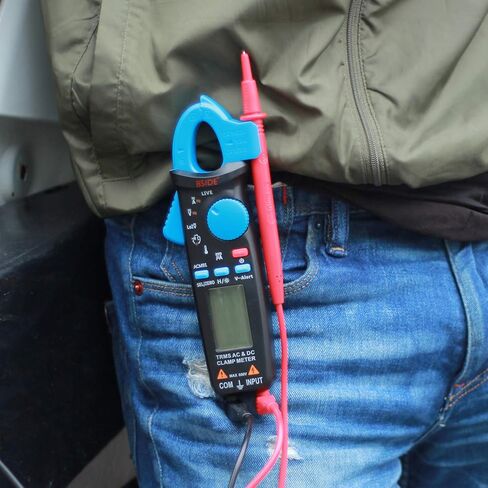

  • [Probe Holder]: Side probe holder make measurement more convenient, especially for narrow or tight space environment.
  • [Notice]: Before measuring DC current, zero out the readings several times and hold the meter in the same orientation when taking readings. Because clamp meter is use the Hall effect sensor to detect dc current.

Description

Features:
Measure AC/DC current (minimum 1mA by jaws)
Measure microamps μA (minumum 0.1μA by terminals)
Measure AC/DC voltage

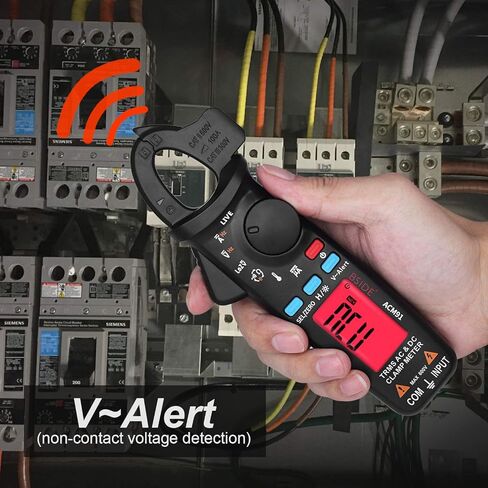

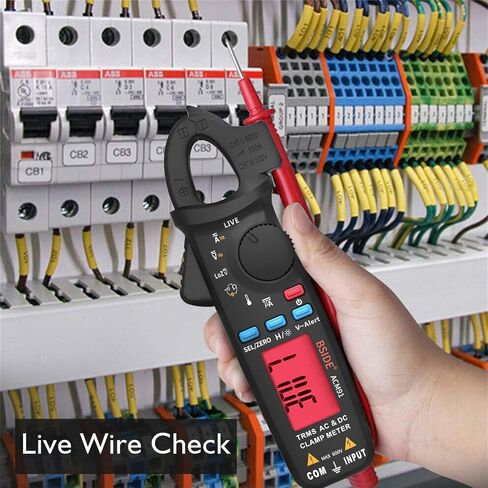

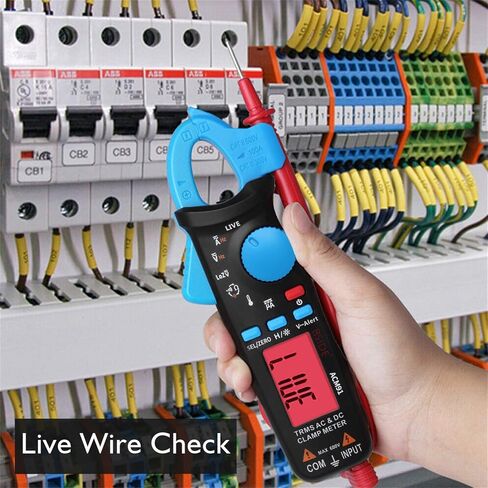

V-alert measurement, live-wire check
Measure frequency, temperature, resistance, continuity and capacitance
Low impedance voltage measurement
Clamp on frequency function
Auto range, Auto power off, data hold, low battery indication with backlight
Conform to the IEC-61010-1, IEC-61010-2-030, IEC-61010-2-032, IEC-61010-2-033 standards
Over-voltage protection class CAT III 300V, CAT II 600V, pollution degree II

Specifications:
Display: 6000 counts
DC current: 6A/60A/100A 0.001A/0.01A/0.1A ±(3.0%+5counts)
DC current(μA): 0-200μA 0.1μA ±(0.8%+5counts)
AC current: 6A/60A/100A 0.001A/0.01A/0.1A ±(2.5%+5counts)
DC voltage: 6V/60V/600V 0.001V/0.01V/0.1V ±(1.0%+3counts)
AC voltage: 6V/60V/600V 0.001V/0.01V/0.1V ±(1.0%+3counts)
Low impedance LOZ: Max 600V Resolution 0.1V
Resistance:
600Ω/6kΩ/60kΩ/600kΩ/6MΩ 0.1Ω/0.001KΩ/0.01KΩ/0.1KΩ/0.001MΩ ±(1.0%+3counts)
60MΩ 0.01MΩ ±(1.2%+20counts)
Capacitance: 600µF/6000µF 0.1µF/1µF ±(4.0%+3counts)
Frequency: 60Hz/1000Hz 0.1Hz/1Hz ±(1.0%+5counts)
Frequency(by jaws): 60Hz/1000Hz 0.1Hz/1Hz ±(1.0%+5counts)
Buzzer: If the resistance is less than 30Ω, the continuity beeper sounds
Temperature: -20℃~500℃ 1℃/2℉ ±(2.0%+2counts)
Jaw Capacity: 20mm

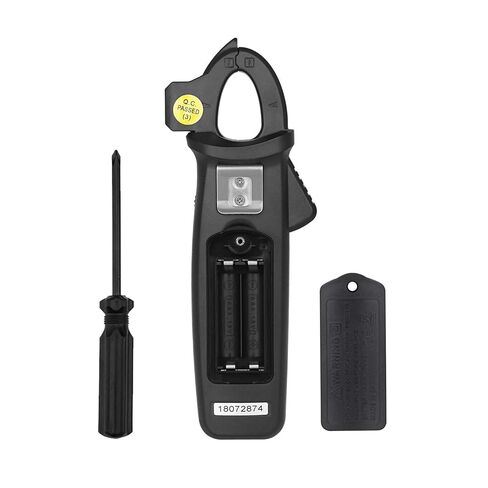

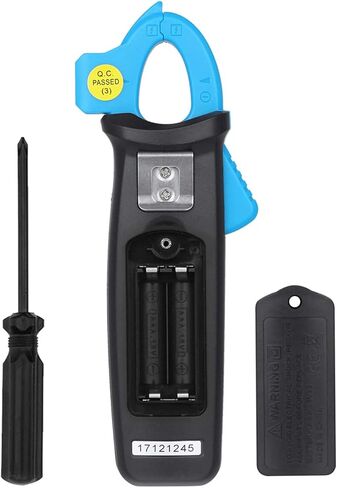

Power: 1.5V (AAA) x 2
Size: 179 x 67 x 36 mm
Weight: 137g

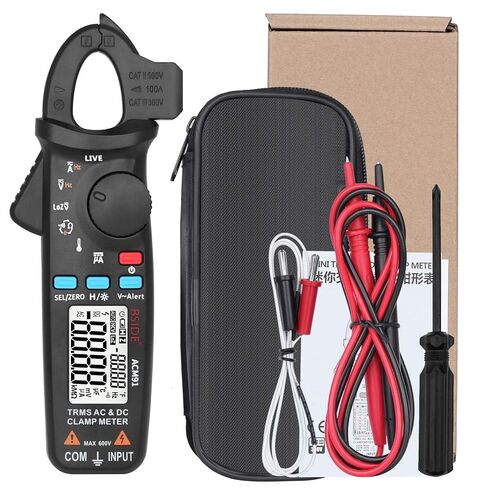

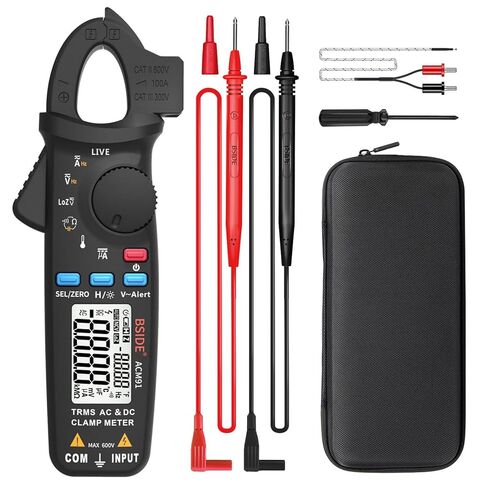

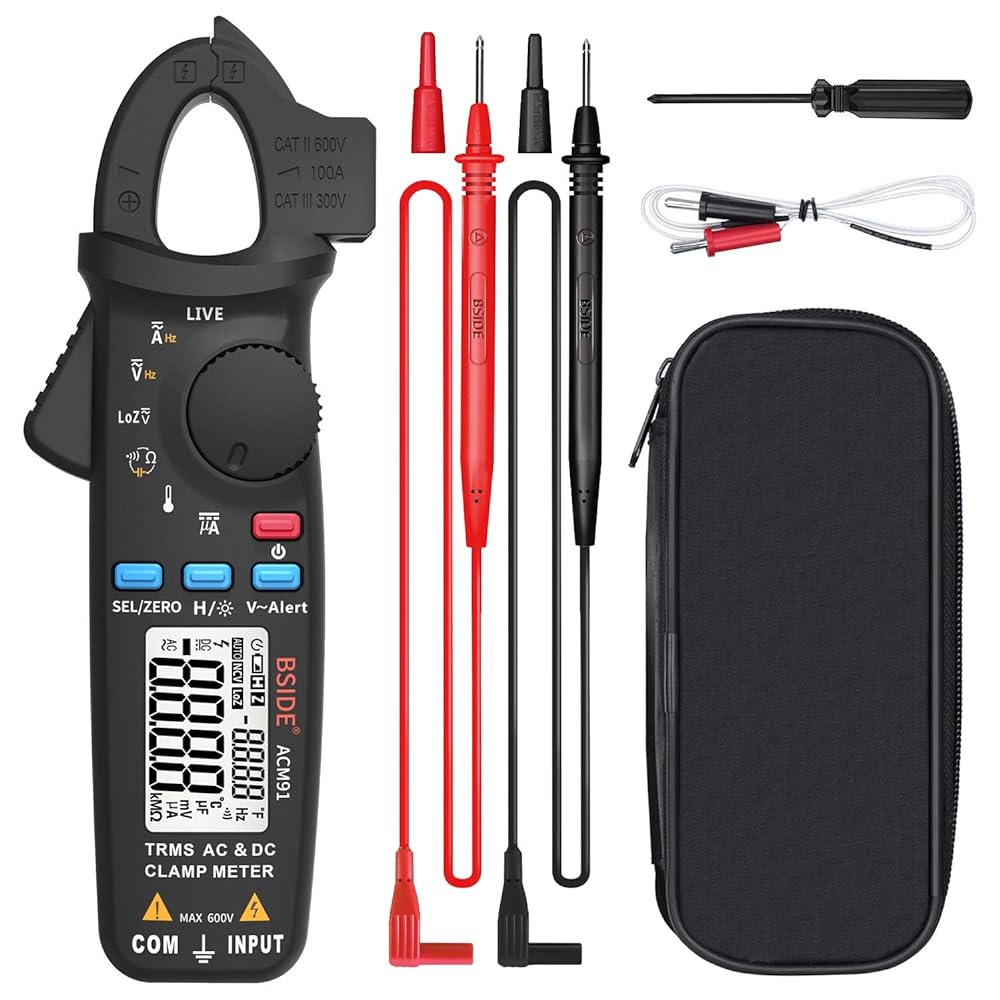

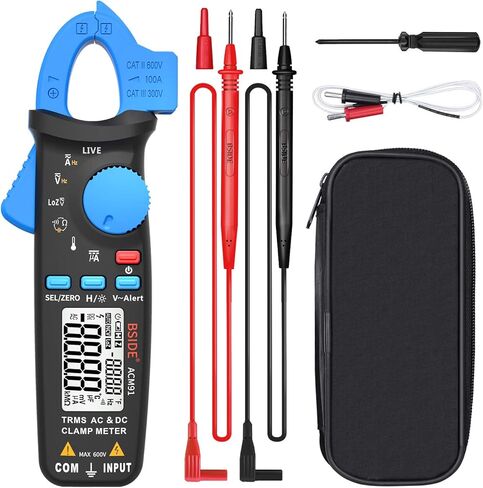

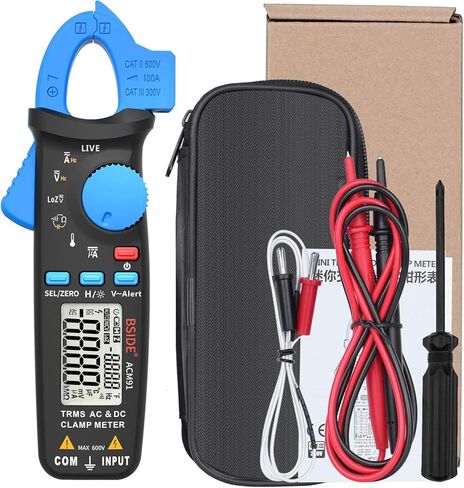

Package Includes:
1 x Clamp Meter
1 x Test Leads
1 x Thermocouple
1 x Carrying Case
1 x Screwdriver
1 x User Manual

Note:
The batteries are not included in the package due to Aviation Security Check
