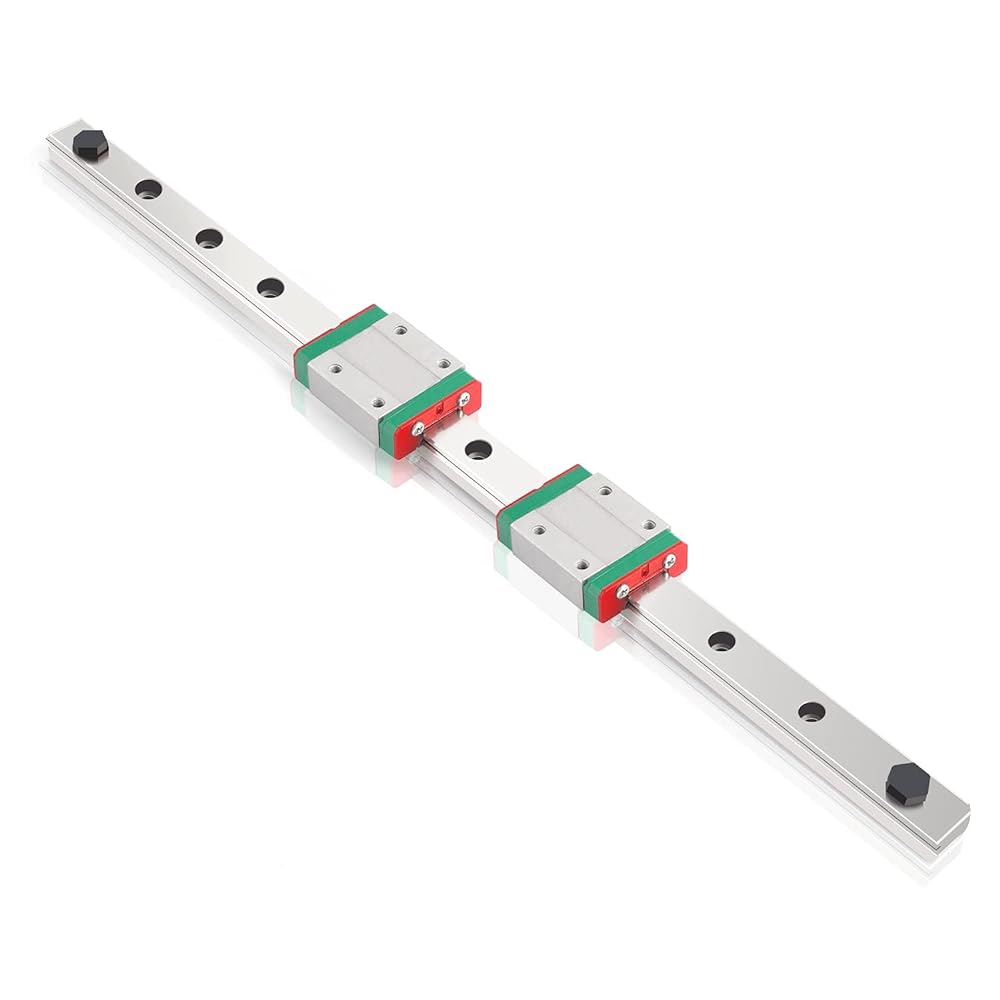

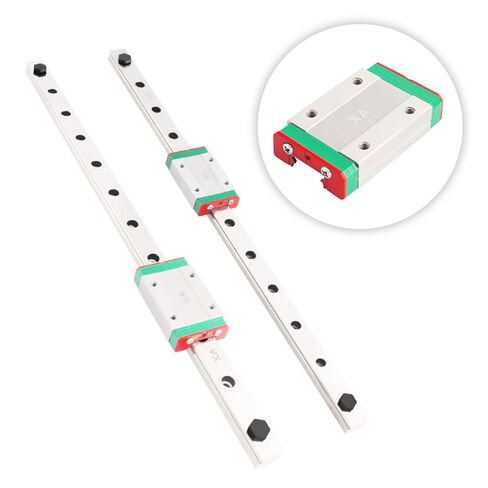

[2pcs of Pack] Linear Rail Sliding Block,HGH12H Rail Slider Block Guide Rail Slider Bearing Steel Rail Carriage

Special Features

【Product Parameter】300mm MGN12H Rail Guide(including 12 Holes), MGN12C Linear Guide Slider Block. Suggest to use M3 T nut and screws if fixing it to 20 series EU Al-profile.
【Quality Assurance】Full body polishing of rail to increase surface smoothness. No resistance when the block works on the rail. Special design to prevent block beads missing. Made of low friction coefficients bearing steel.Rail is fully oiled.
【High Compatibility】Even the place of installation is not very smooth, the rail can work smoothly because the beads in the block is able to accept a little smoothness deviation. 78 beads is used on the block to highly improve the load capacity of rail. Able to satisfy most user needs.
【Wide Application】Applied in semiconductor manufacturing equipment, printed circuit boards, IC assembly equipment, medical equipment, robotic arms, precision measurement machine and other small linear motion device.
【100% QUALITY ASSURANCE】1-Year Warranty, if you are not satisfied with the product, please contact us in time, we will solve your problem within 24 hours and provide a 1-year warranty.

Description

Specifications:
MGN12H 300MM
Combined height: 10mm
Slider threaded hole: M3*3.5
Guideway bolt: M3*8
MGN12H slider: 78 beads
300mm slide rail 12 holes

Features:
High module accuracy
Low noise
Stronger wear resistance
Self-aligning
The cylindrical guide rail is composed of the main guide rail and the aluminum support, which can stabilize the original guide rail.
Linear guides can help build economical linear guide systems.
Linear guides are suitable for large transmission equipment, including industrial robots, biscuit machines,
Ultrasonic cleaning equipment, solar energy and clothing support equipment, etc.

Packing List
2pcs MGN12H 300mm Linear rail guide
2pcs MGN12H block

Hello,

Search

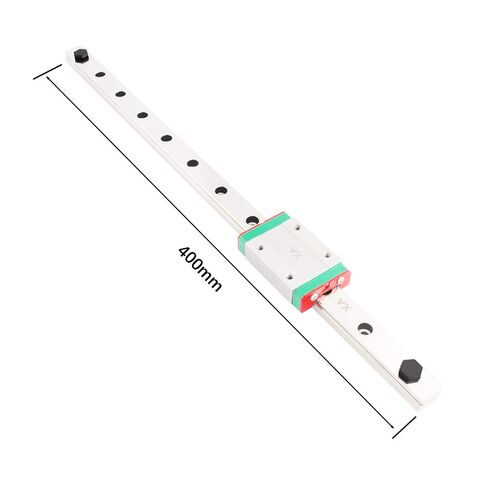

400mm H-Block x2+Rail x1
