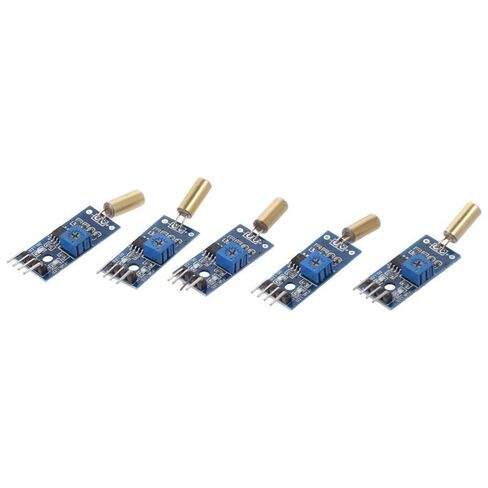

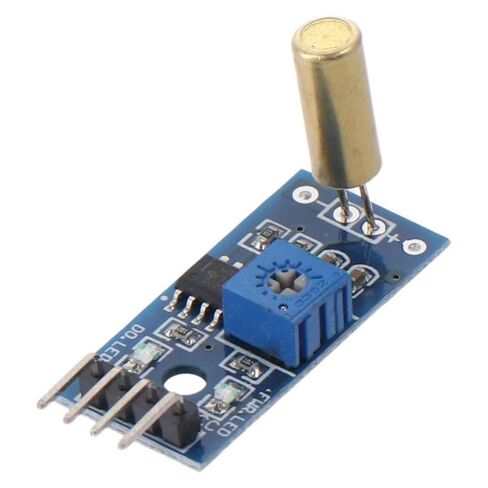

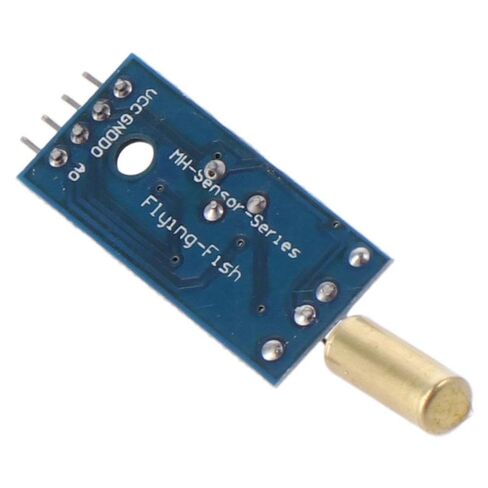

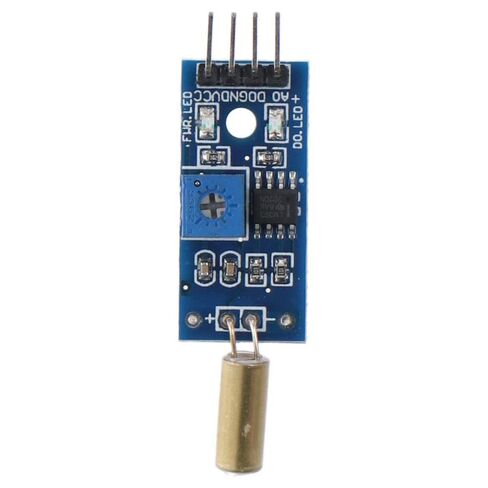

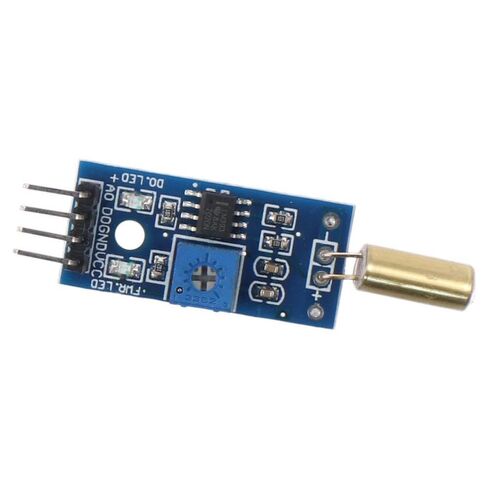

5pcs Angle Sensor Module, 4 Needles Tilt Sensor Module, SW-520D Ball Vibration Switch Golden Tilt Sensor Ball Switch 3.3V-5V

KWD 3
Brand
SHUATI
Category
Sensors
Weight
10 g
– 1 +

Special Features

  • Wide Voltage Range: The Angle Sensor Module operates on a wide voltage range of 3V to 5V, allowing for compatibility with different power supply systems. This flexibility makes it suitable for a variety of electronic projects.
  • Digital Switch Output: The module provides a digital switch output, which means it produces a binary signal of either 0 or 1. This output form simplifies the integration and interpretation of the sensor data in your projects.
  • Body Angle Sensing: The Angle Sensor Module is designed to sense changes in body angle. It utilizes the highly sensitive switch SW-520D as the angle sensor, enabling accurate detection and measurement of angular changes.
  • Easy Installation: The module features fixed bolt holes, making it easy to install and mount securely in your projects. This convenient design ensures a hassle-free setup and integration into your electronic systems.
  • LM393 Comparator: The module incorporates a LM393 comparator, which is a widely used and reliable comparator chip. The comparator output provides a clean signal with a good waveform and strong driving ability, capable of delivering a current of more than 15 mA.

Description

100% Brand and NEW
Working Voltage: 3.3V - 5V
Output Form: Digital Switch Output (0 and 1)
Small Board PCB Size: 37mm x 14mm x 7mm
Total Length: 51mm
Module Wiring Instructions:
1.VCC: Power Supply +
2.GND: Power Supply -
3.DO: Digital Signal Output
4.AO: This function is invalid with this vibration sensor

Package Content:

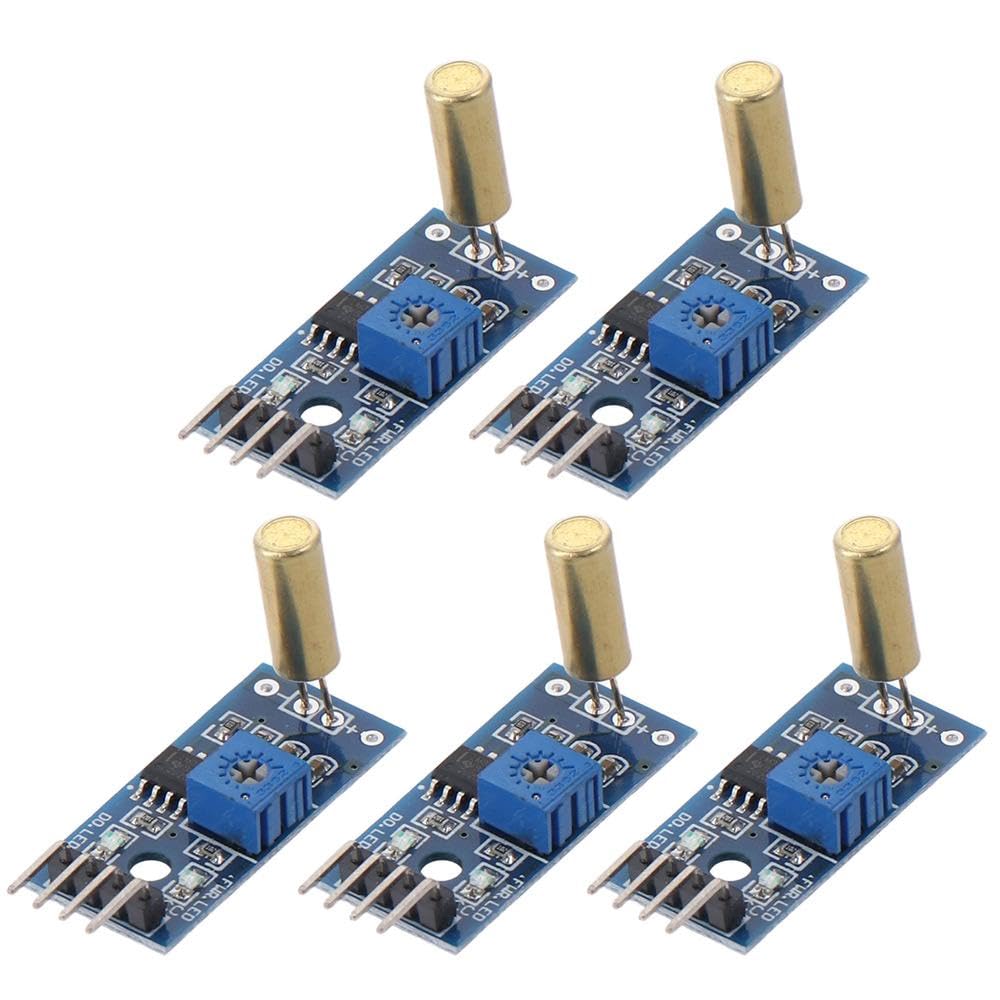

5pcs x Angle Sensor Module
