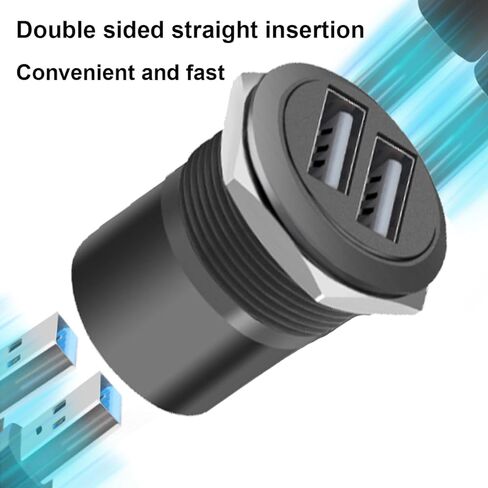

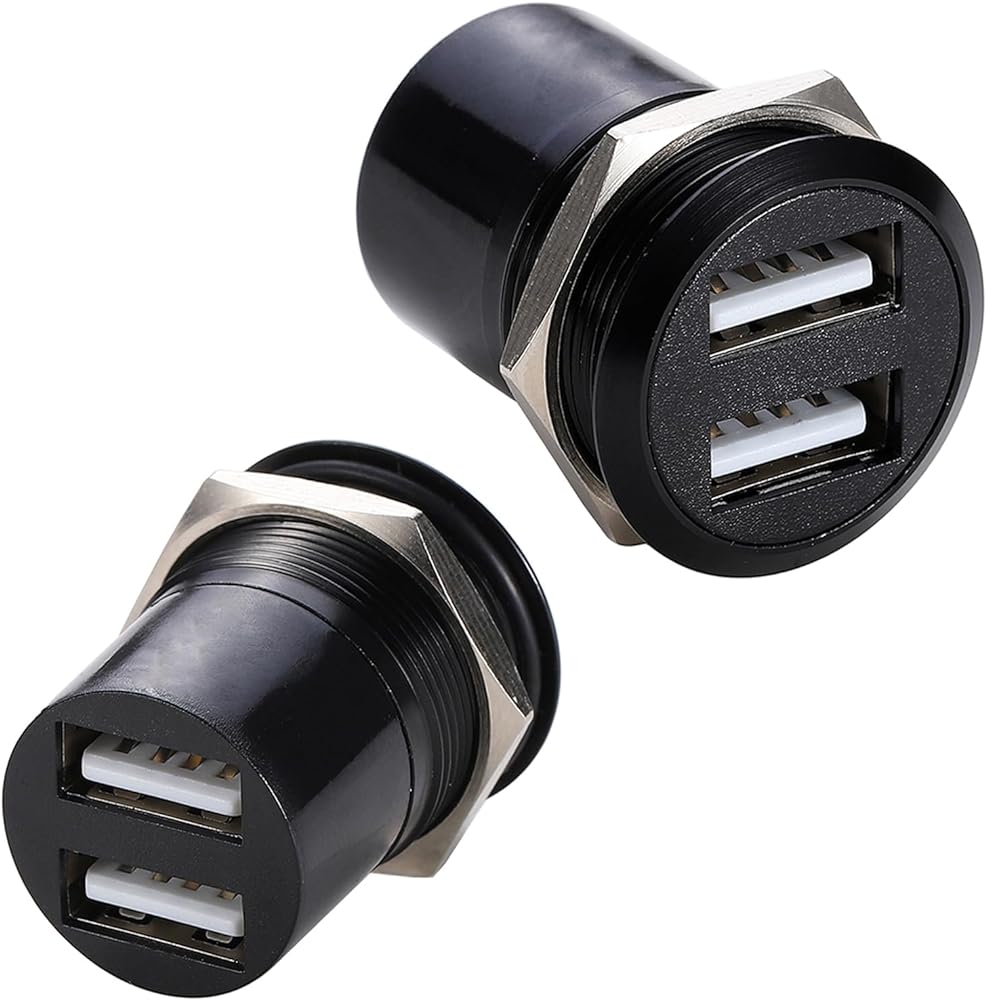

PENGLIN USB 2.0 Panel Mount Connector, Dual USB Pass Through Adapter Female to Female, USB Port Extender Socket for Data Transfer/Charge

Special Features

【USB 3.0 COUPLER】This two ports Dual USB 3.0 connector is a Female/Female Couple.Dual channel independent operation without interfering with each other. Save time and space.
【EASY INSTALLATION】Standard Connector for Panel-Mount Installations, dual-channel USB signal connection, and save installation space, USB female to female field installable coupler, no soldering, no installation tools, just plug the standard USB head directly for quick installation.

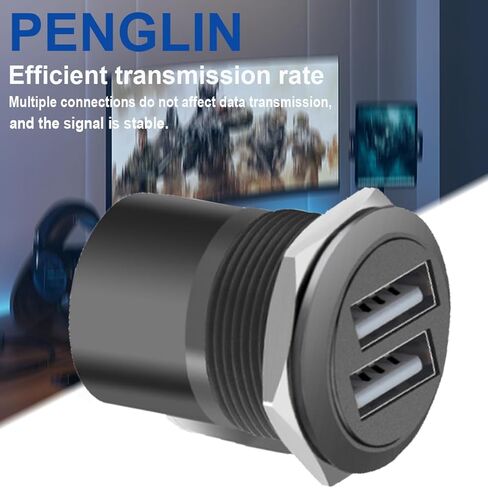

【Data Transfer and Charging】Dual USB3.0 data connector compatible with USB 2.0 and 1.1 devices.Supports 5 Gbps data transfer speed and 5V/1A charging.

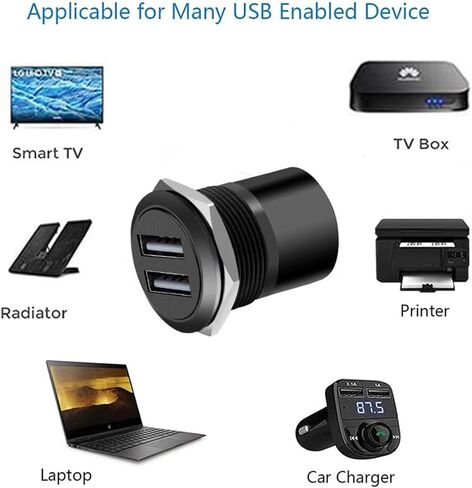

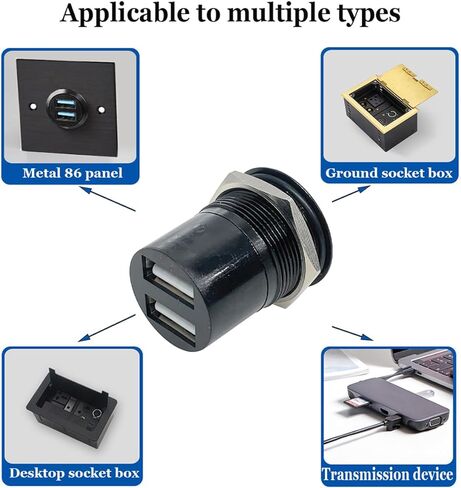

【WIDELY APPLICATION】Connects equipment with USB ports like a PC, Mac, desktop, laptop, notebook, media player, USB external hard drive, AV receiver or other equipment with USB ports with the cables concealed behind the wall via wall plates.
【DURABLE QUALITY】 USB female to female coupler,zinc alloy material shell, scratch resistance, flame retardant, UV resistant, and anti-aging.Copper gold-plated contacts for stable transmission.

Description

Technical Specifications:
Connection
Type: USB3.0
Rated current: 0.5A
Rated voltage: 50V
Insulation resistance: ＞500MΩ
Dielectric strength: DC1000V
Contact resistance: ＜10mΩ
Material:
Shell: Zinc diecast
Contact material: Bronze
Insulator material: PBTP 15% GR
Environmental conditions:
Working temperature: -40～120Celsius
Storage temperature: -25～85Celsius
Atmospheric pressure: 86～106kPa
Relative humidity: ≤90% RH
Installation panel thickness: min 2.0mm-max 10mm
Base shape: Round type

Package includes:
2 xDual Port USB3.0 Connector
