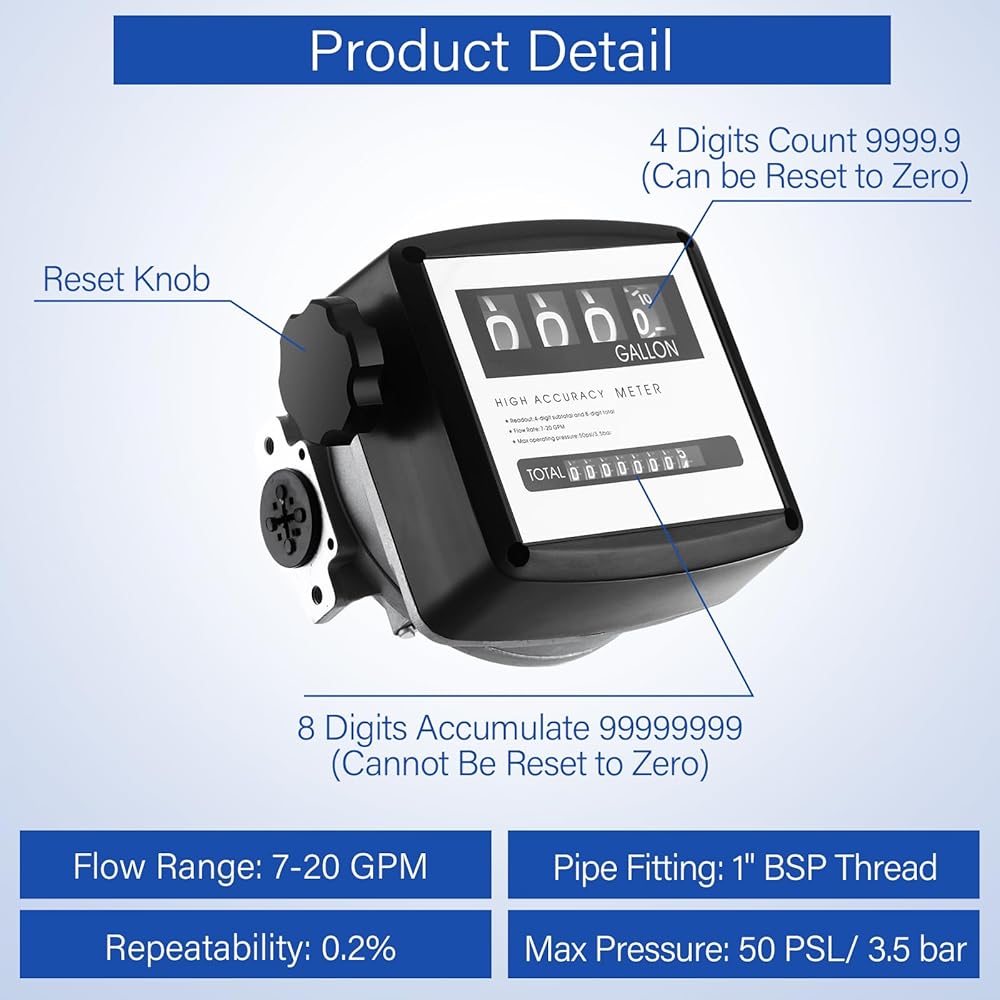

Product Information: flow range: 7-20 GPM; Pipe fitting: 1" BSP thread; Accuracy level: ±1%; Maximum working pressure: 50 PSL/ 3.5 bar; Product form: mechanical; Repeatability: 0.2%; Counting method: four digits count 9999.9 (can be reset to zero), eight digits accumulate 99999999 (cannot be reset to zero
Adjustable Measuring: when the measuring liquid medium is different, the accuracy of the fuel flow meter can be adjusted, first, remove the outer sealing screw, then you can choose to tighten the inner screw to make the fuel meter run faster, or loosen the inner screw to make the fuel meter run slower, finally, remember to turn back the outer sealing screw
High Accuracy: the 1 inch mechanical fuel flow meters can accurately measure the flow rate moving during fuel transfer, they feature high accuracy, strong stability, and easy calibration and installation, and can be flexibly installed horizontally or vertically to meet strict requirements and precise monitoring
Quality Materials: the 4 digital display fuel flow meter is made of quality aluminum on the back and quality plastic on the front, has reliable quality and good corrosion resistance, which can serve you for a long time, its screen is large that can clearly display data, making it very convenient to read
Wide Application: the transfer tank fuel flow meter is widely applied and can measure the viscosity of liquid media, engine oil and other lubricants; It is applied in oil transfer pumps and can be applied in oil warehouses, ships, factories, farmland and other places

وصف

Easy to reset:
The tank transfer pump counter can achieve high precision measurement at a relatively low cost. It has a large handwheel that can be manually adjusted to zero. Moreover, it has precise 4 digit measurement (can be manually reset to zero) and 8 digit cumulative measurement (cannot be manually reset to zero).

Packing quantity:

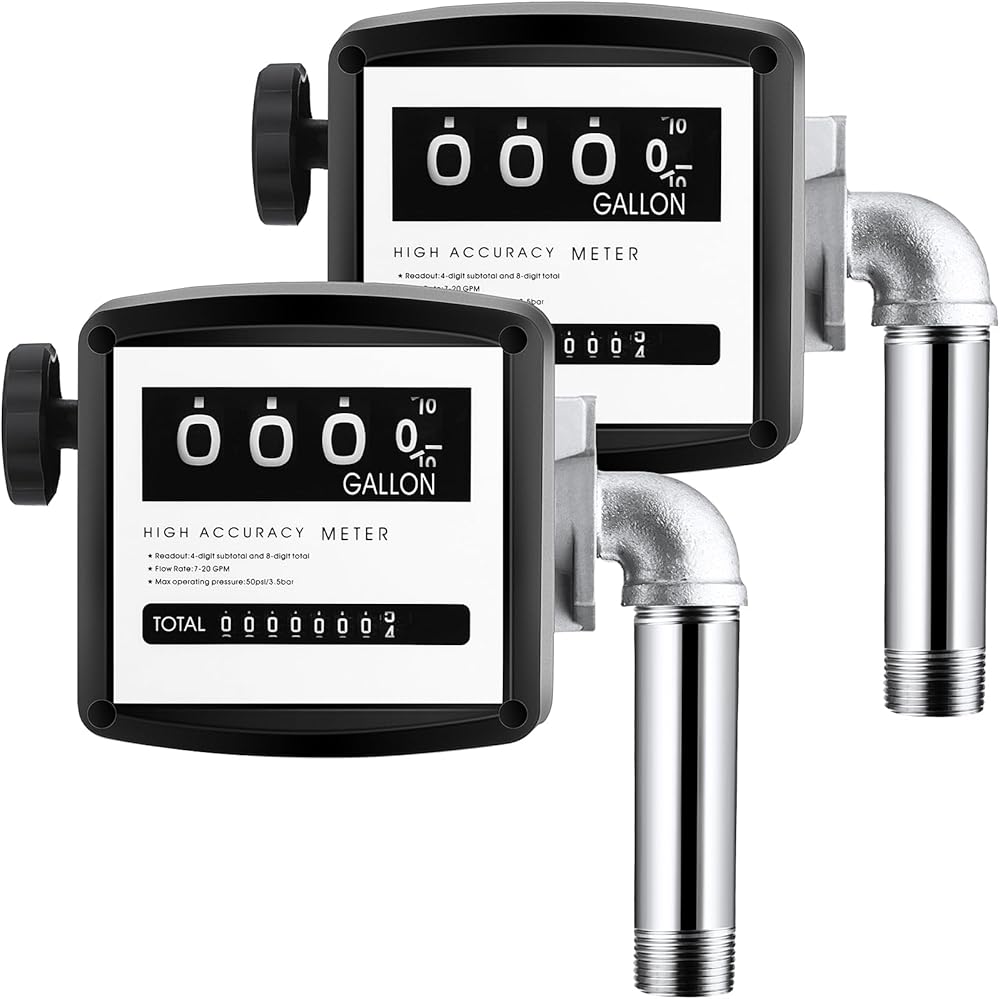

The package you received contains 2 pcs mechanical fuel flow meters, which are packed in boxes and foam to ensure safety during transportation. Our fuel flow meters come with installation accessories, including elbows and raw material tapes, to achieve a sealing effect. You can install and use them directly after receiving them.

Precautions for use:
The flow meter will undergo functional testing before leaving the factory, so there may be some oil stains on the surface of the product, but it will not affect use.
A filter device must be installed during installation to prevent the oil meter from being stuck by impurities and affecting accuracy (if there is no filter device, please purchase a filter before installation, the filter device is not included).

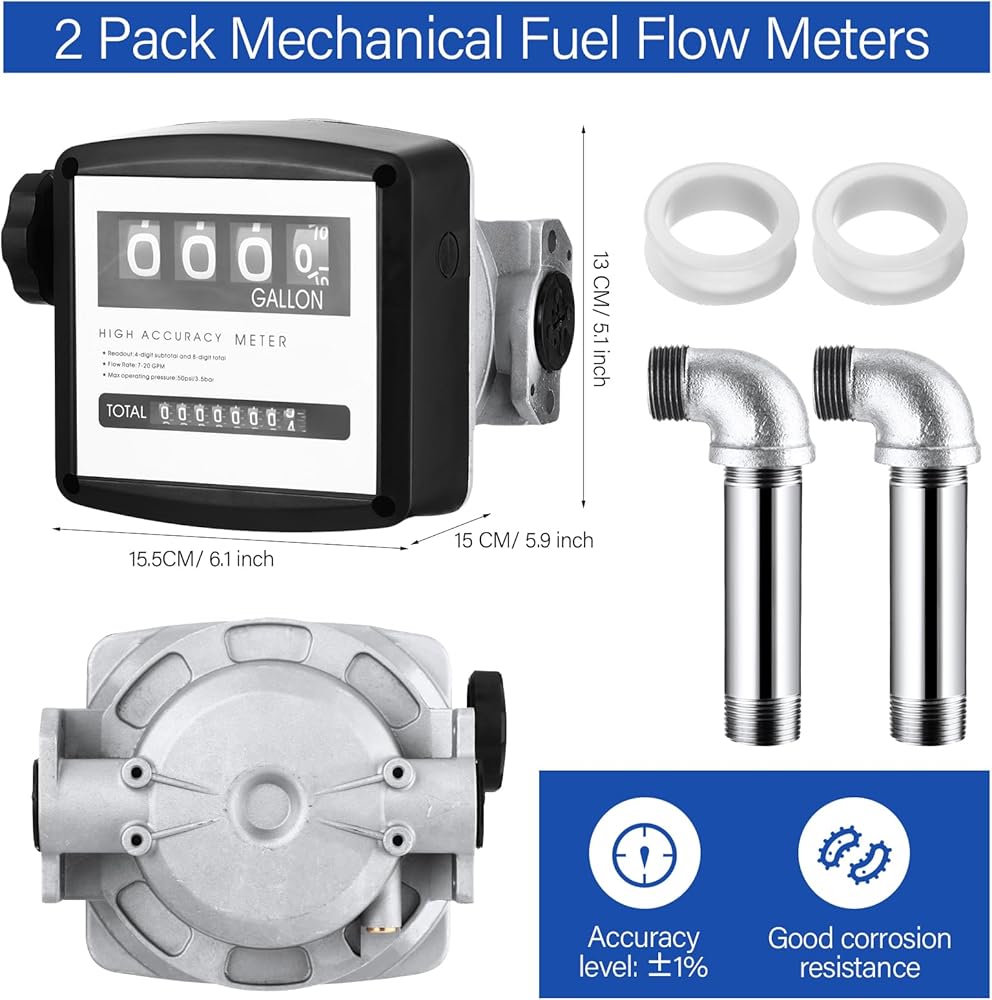

Specifications:
Quantity: 2
Material: aluminum and plastic
Size:
Inlet size: 1 inch
Outlet size: 1 inch
Digital: 4 digital

Package includes:
2 x Fuel meters
2 x Accessories

Warm notes:
Please allow a little error on the size due to manual measurement.
The color may exist a slight difference due to different screen displays.
