Overview

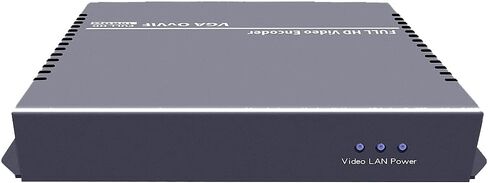

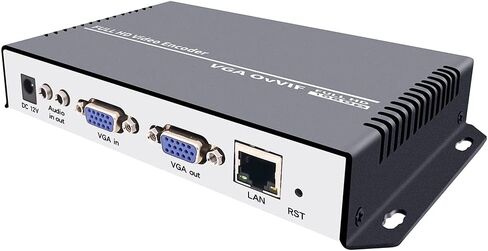

H.264 VGA Video Encoder IPTV Encoder RTMP Live Encoder is a professional HD audio & video encoding device. From any VGA input source, it generates H.264/MPEG-4 video encoding and AAC/MP3 audio code streams compliant with SRT/RTMP/RTMPS/RTSP/UDP/RTP/HTTP/HLS/FLV/TS protocols.

Applications

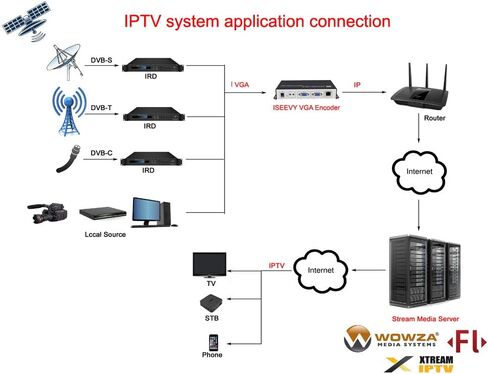

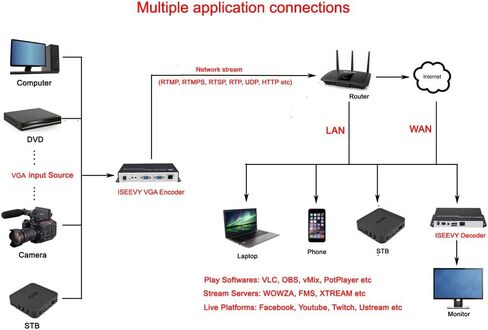

It can be widely applied in IPTV, live stream, broadcast, video conference, remote education, network video record.

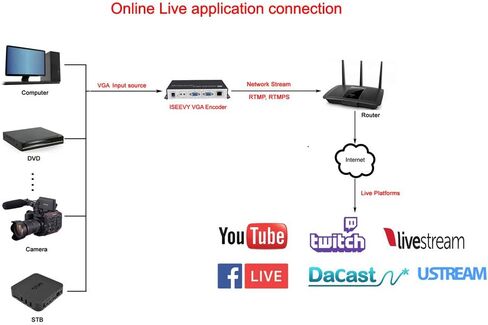

Have been compatible with most of streaming platforms, you can go live at any time you like ,such as Ustream, Livestream, Facebook Live, and YouTube Live or even build your own using WOWZA Streaming Server..

Specifications

Video
Video Input

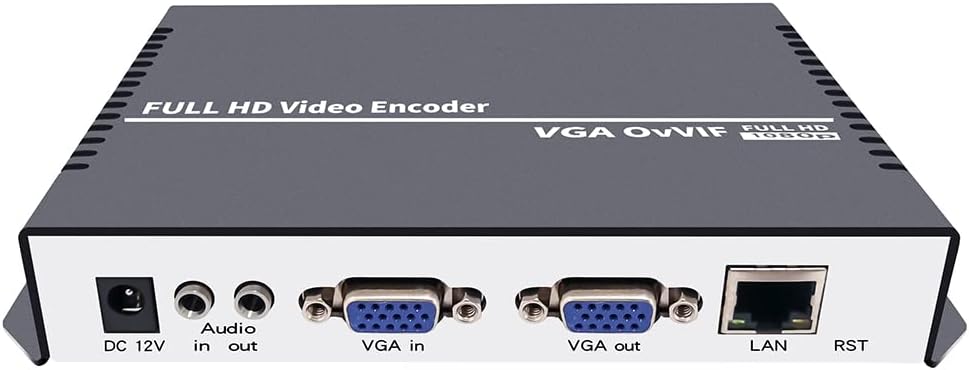

1 channel VGA input
Resolution
Max 1920×1080
Frame Rate
60fps
Video Encoding
H.264 High/Main/Baseline Profile
Code Bit Rate
0.16Mbps~12Mbps
Bit Rate Control
CBR/VBR
GOP Type
IBBP
Video Advanced Pretreatment
De-interlacing, Noise Reduction, Sharpening
Audio

Audio Encoding
AAC,MP3
Sampling Rate
32K/48K/64K/96K/128K/160K/192K/256K
Sampling Accuracy
24 bit
Audio Bit Rate
64Kb/s~384Kb/s

System
RJ45
1000 Base-T Ethernet interface
Protocol
SRT, HTTP, UDP, RTP, RTSP, RTMP, RTMPS, HLS, FLV, TS

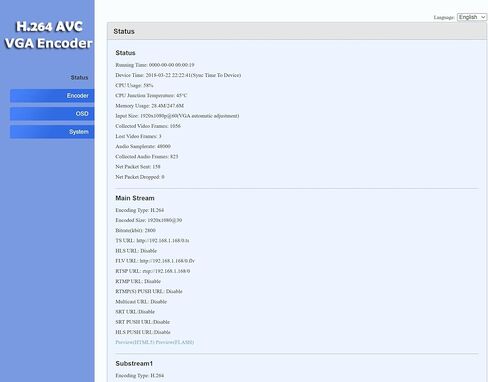

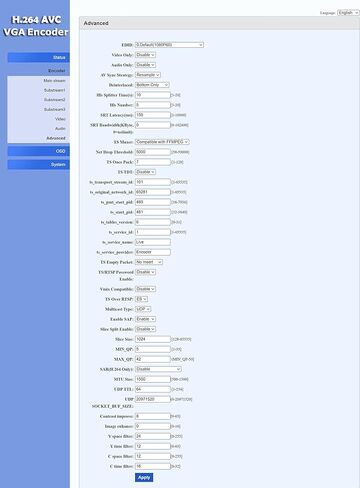

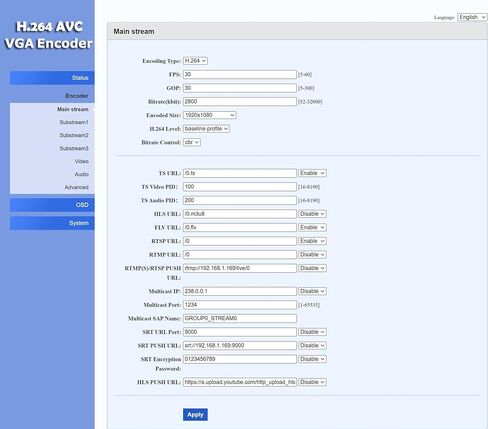

Configuration Interface
WEB operation
Upgrading
Can be upgraded by Internet

Others
Dimension
170*130*30mm
Weight
0.5kg
Temperature
0~45℃(work),-20~80℃(storage)
Power
12V/DC
Consumption
5W
