6FT USB to RS232 Serial RJ45 Console Adapter Cable for Cisco Huawei TP-Link Routers/Switches to Connect Laptop PC Support Win10 Mac Red FT232RL

KWD 7.500
Weight
68 g
– 1 +

Special Features

  • FT232+ZT213 Chipset The length: 6ft Compatible for windows win7 win8 xp mac linux android etc
  • Connects from a USB port on your laptop/desktop computer directly to a console port, No adapters needed to get it working
  • It is an essential accesory of those branded firewalls, routers and switches with CONSOLE port, such as for Cisco, Ubiquiti, Juniper, Fortigate, Mikrotik, TP-Link, Huawei, HP Procurve devices and more
  • It is a flawless replacement of RS232 (DB25/DB9) to RJ45 console cable. Premium Quality, perfect length, and ultra-durable
  • 32 and 64 bit operating systems, MAC, Linux and Android are both supported by the highly regarded FTDI FT232RL chip. If the drivers can't be automatically installed, please ask us to provide installation guidance. For detailed supported OS information, please see 'product description' by scrolling down the page

Description

for Cisco Auxiliary port for Cisco 1000, 1600, 2500, 2600, and 3600 series routers
pinout USB2.0, USB1.1 compatible
USB RS232 serial console cable
Chipset ID FTDI - FT232RL Serial Protocol RS-232 Max Baud Rate 921.6 Kbps Data Bits 7, 8 FIFO 256 Bytes Parity None, Odd, Even, Mark, Space Stop Bits 1, 2 Software OS Compatibility Windows 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP (32/64), 2000, 98SE, XP Embedded, CE (4.2+) Windows Server? 2012, 2008 R2, 2003 Mac OS? 10.x (Tested up to 10.9) Linux 2.4.x / 2.6.x

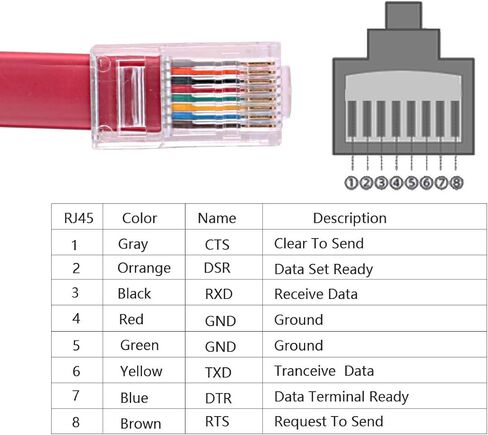

Pin assignment: 1-CTS, 2-DSR, 3-RXD, 4-GND, 5-GND, 6-TXD, 7-DTR, 8-RTS
Flat cable, 28AWG*8 core, bare copper. 1.8m Integrated 1024 EEPROM,
support Vendor ID re-write support Mprog3.5 programming
Support FTDI VCP driver and D2XX driver upgrading for cisco db9 RJ45 console cable

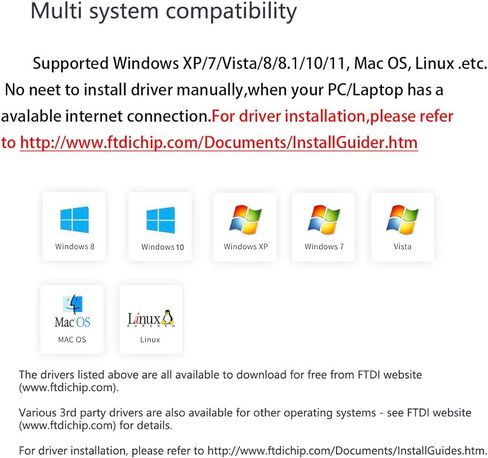

Operating system support

Windows 8.1
Windows 8.1 x64
Windows 8
Windows 8 x64
Windows Server2012
Windows Server 2008 R2
Windows 7
Windows 7 x64
Windows Server 2008
Windows Server 2008 x64
Windows Vista
Windows Vista x64
Windows Server 2003
Windows Server 2003 x64
Windows XP
Windows XP x64
Windows ME
Windows 98
Linux
Mac OS X
Mac OS 9
Mac OS 8
Windows CE.NET (Version 4.2 and greater)
Android
Windows RT

Benefits

1.No adapters needed to get it working
2.No more DB-9 Adapters
3.No more Mickey Mouse Prolific driver problems
4.No more fake Prolific chips
32 and 64 bit operating systems are both supported

Package included

1* FTDI USB to RJ45 cable
