Home / EPLZON / Passive Components
EPLZON B102 1K Ohm Carbon Film Rotary Taper Potentiometer with A03 knob and dial RV24YN20S Potentiometer Single Turn Carbon Film Rotary Taper Potentiometer Used for Inverter Speed Regulation in Kuwait EPLZON B102 1K Ohm Carbon Film Rotary Taper Potentiometer with A03 knob and dial RV24YN20S Potentiometer Single Turn Carbon Film Rotary Taper Potentiometer Used for Inverter Speed Regulation in Kuwait EPLZON B102 1K Ohm Carbon Film Rotary Taper Potentiometer with A03 knob and dial RV24YN20S Potentiometer Single Turn Carbon Film Rotary Taper Potentiometer Used for Inverter Speed Regulation in Kuwait EPLZON B102 1K Ohm Carbon Film Rotary Taper Potentiometer with A03 knob and dial RV24YN20S Potentiometer Single Turn Carbon Film Rotary Taper Potentiometer Used for Inverter Speed Regulation in Kuwait EPLZON B102 1K Ohm Carbon Film Rotary Taper Potentiometer with A03 knob and dial RV24YN20S Potentiometer Single Turn Carbon Film Rotary Taper Potentiometer Used for Inverter Speed Regulation in Kuwait EPLZON B102 1K Ohm Carbon Film Rotary Taper Potentiometer with A03 knob and dial RV24YN20S Potentiometer Single Turn Carbon Film Rotary Taper Potentiometer Used for Inverter Speed Regulation in Kuwait EPLZON B102 1K Ohm Carbon Film Rotary Taper Potentiometer with A03 knob and dial RV24YN20S Potentiometer Single Turn Carbon Film Rotary Taper Potentiometer Used for Inverter Speed Regulation in Kuwait EPLZON B102 1K Ohm Carbon Film Rotary Taper Potentiometer with A03 knob and dial RV24YN20S Potentiometer Single Turn Carbon Film Rotary Taper Potentiometer Used for Inverter Speed Regulation in Kuwait EPLZON B102 1K Ohm Carbon Film Rotary Taper Potentiometer with A03 knob and dial RV24YN20S Potentiometer Single Turn Carbon Film Rotary Taper Potentiometer Used for Inverter Speed Regulation in Kuwait EPLZON B102 1K Ohm Carbon Film Rotary Taper Potentiometer with A03 knob and dial RV24YN20S Potentiometer Single Turn Carbon Film Rotary Taper Potentiometer Used for Inverter Speed Regulation in Kuwait EPLZON B102 1K Ohm Carbon Film Rotary Taper Potentiometer with A03 knob and dial RV24YN20S Potentiometer Single Turn Carbon Film Rotary Taper Potentiometer Used for Inverter Speed Regulation in Kuwait EPLZON B102 1K Ohm Carbon Film Rotary Taper Potentiometer with A03 knob and dial RV24YN20S Potentiometer Single Turn Carbon Film Rotary Taper Potentiometer Used for Inverter Speed Regulation in Kuwait

B502 5K ohm

KWD 4
Brand
EPLZON
Weight
40 g
ColorB502 5K ohm
– 1 +

Special Features

  • 🔺Resistance Value:1K Ohm;Resistance Tolerance:±10;Percent shaft Size:6 x 10mm/ 0.24" x 0.4"(D*l);Mechanical angle:300°

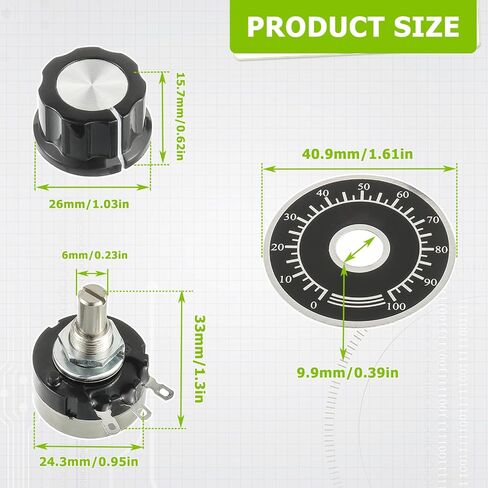

  • 🔺Potentiometer Body Size:24 x 14mm / 0.9" x 0.55"(D*H);Potentiometer Total Height:34mm/1.3";Screw Thread Dia:8.6mm / 0.33";Shaft Diameter:6mm / 0.24"; Shaft Length:10mm / 0.4"

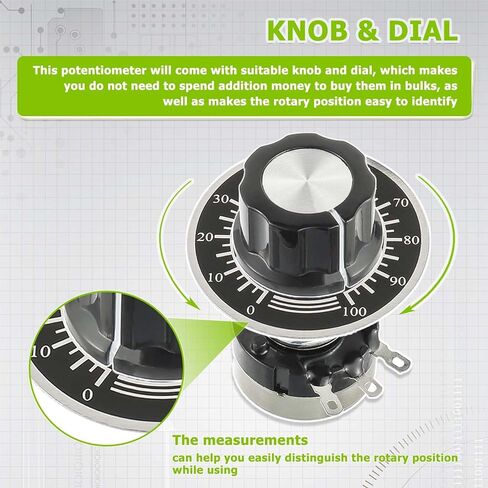

  • 🔺Rotary Knob size:15 x 27mm/0.6" x 1.1"(H*Max.D);Dial size:40 x 38mm/1.6" x 1.5"(d*h);color:black

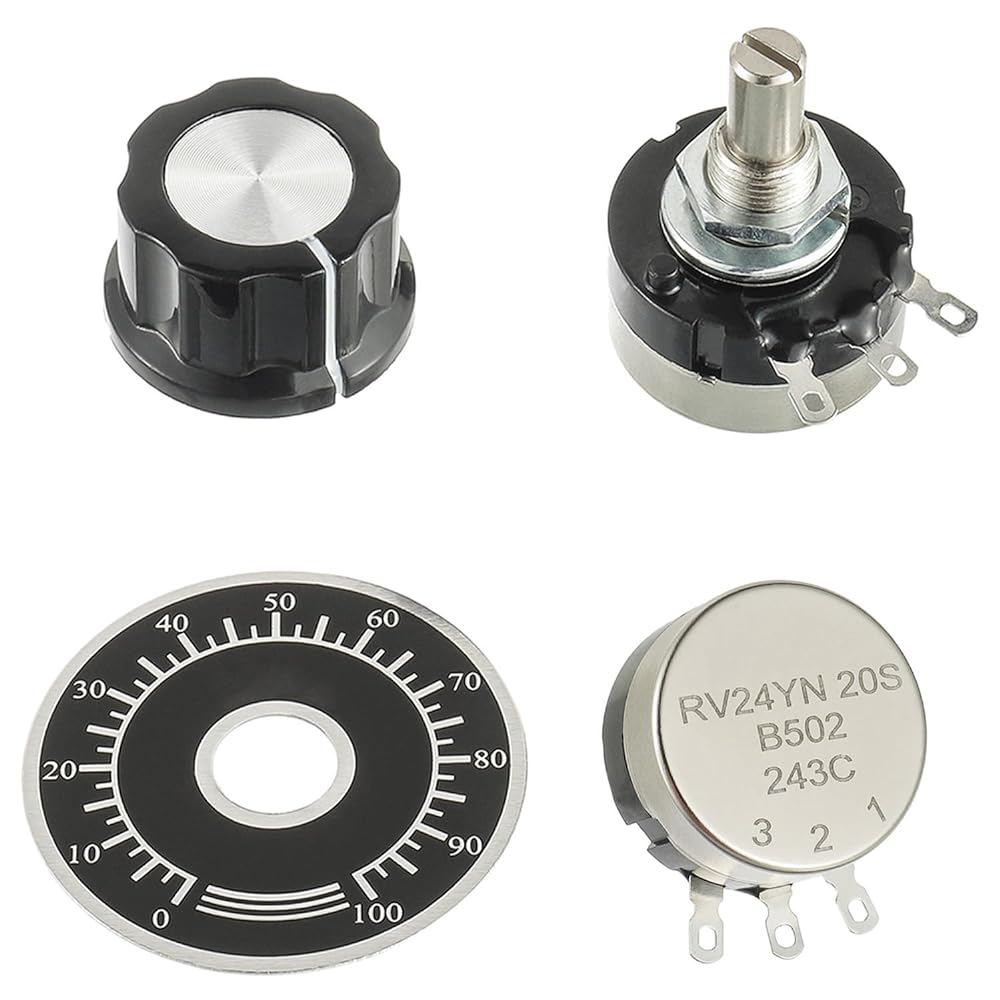

  • 🔺Package content: 1 x Potentiometer + 1 x A03 knob + 1 x dials
  • 🔺Applications: inverter speed regulation , motor speed control, DIY appliances, etc.

Description

EPLZON B102 1K Ohm Carbon Film Rotary Taper Potentiometer
🔆A rotary encoder, also called a shaft encoder, is an electro-mechanical device that converts the angular position or motion of a shaft or axle to digital output signals.

🔆Rotary Adjustable Resistance,adjust the resistance by rotating the shaft, and the product is equipped with a knob for better use

Specifications:
🔸Model: RV24YN20S/B102
🔹Resistance: 10KΩ
🔸Adjustment method: 300°±10° Rotary
🔹Material: metal and carbon film
🔸Rotation life :10000 revolutions
🔹Resistance tolerance: ±10
🔸Temperature range: -10°C - 85°C
🔹Insulation resistance: More than 100MΩ

Package Content:
✔️1PCS * B102 1K Ohm Potentiometer
✔️1PCS * A03 knob
✔️1PCS * Dials
