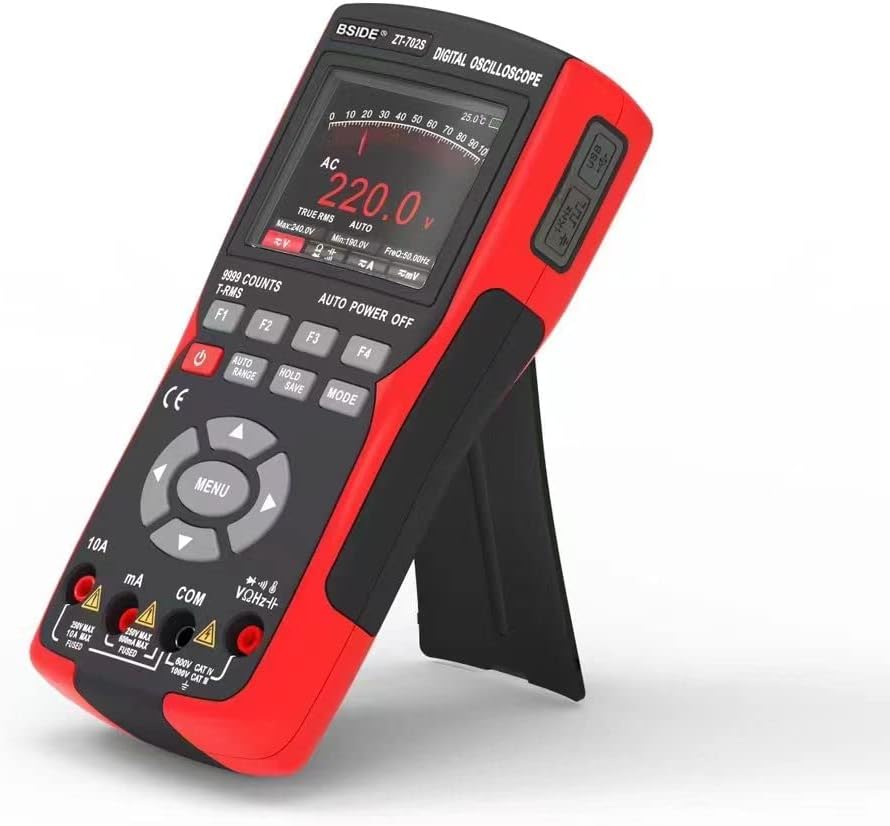

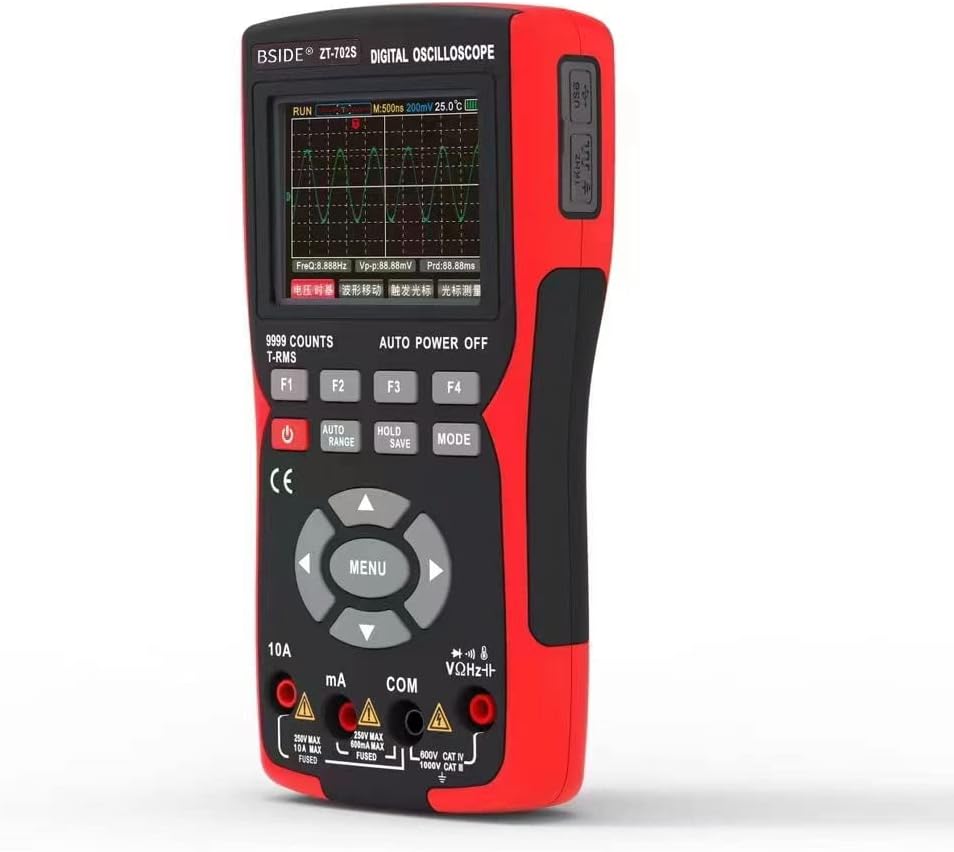

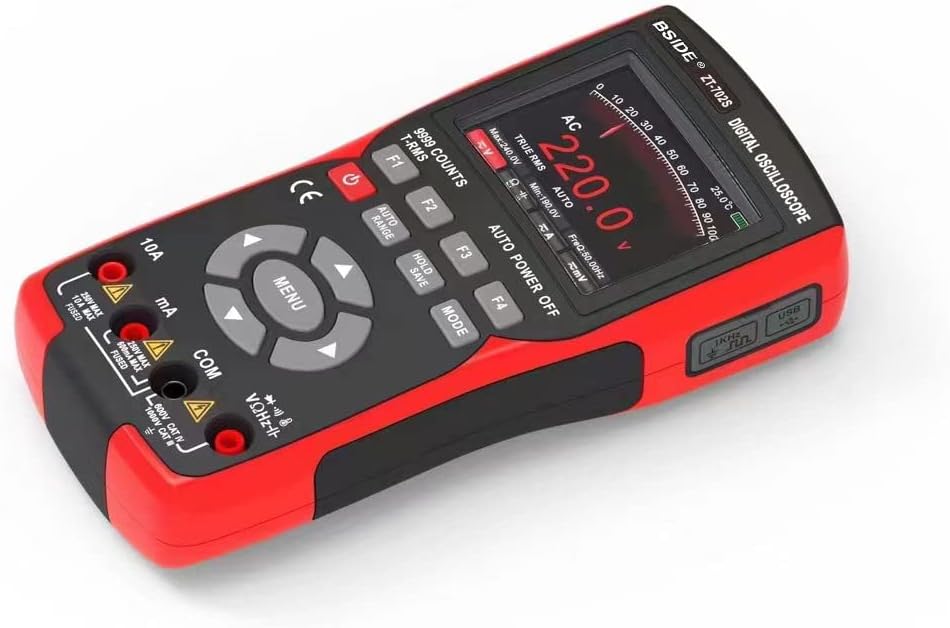

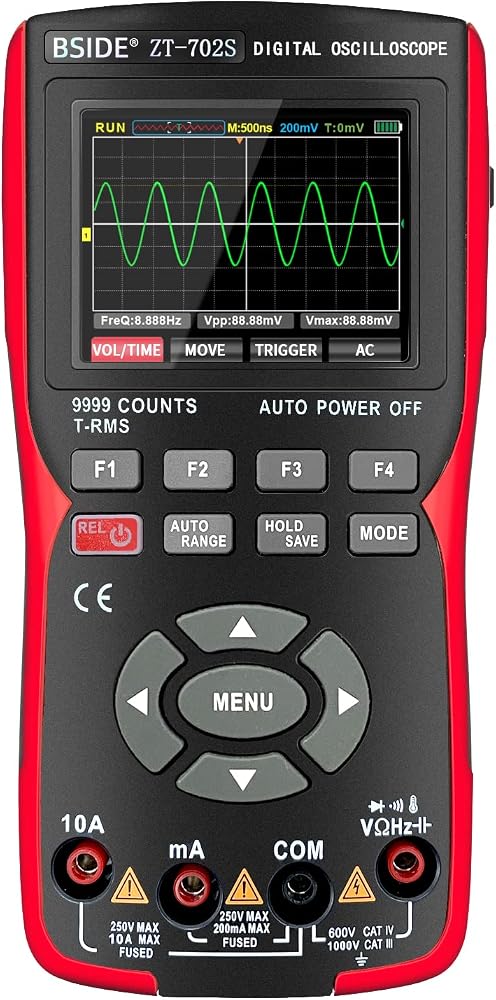

BSIDE Handheld Oscilloscope Multimeter, 10MHz Bandwidth Automotive Oscilloscope, Current Capacitance Frequency Ohm Temperature Diode Voltage Tester in Kuwait BSIDE Handheld Oscilloscope Multimeter, 10MHz Bandwidth Automotive Oscilloscope, Current Capacitance Frequency Ohm Temperature Diode Voltage Tester in Kuwait BSIDE Handheld Oscilloscope Multimeter, 10MHz Bandwidth Automotive Oscilloscope, Current Capacitance Frequency Ohm Temperature Diode Voltage Tester in Kuwait BSIDE Handheld Oscilloscope Multimeter, 10MHz Bandwidth Automotive Oscilloscope, Current Capacitance Frequency Ohm Temperature Diode Voltage Tester in Kuwait BSIDE Handheld Oscilloscope Multimeter, 10MHz Bandwidth Automotive Oscilloscope, Current Capacitance Frequency Ohm Temperature Diode Voltage Tester in Kuwait BSIDE Handheld Oscilloscope Multimeter, 10MHz Bandwidth Automotive Oscilloscope, Current Capacitance Frequency Ohm Temperature Diode Voltage Tester in Kuwait BSIDE Handheld Oscilloscope Multimeter, 10MHz Bandwidth Automotive Oscilloscope, Current Capacitance Frequency Ohm Temperature Diode Voltage Tester in Kuwait BSIDE Handheld Oscilloscope Multimeter, 10MHz Bandwidth Automotive Oscilloscope, Current Capacitance Frequency Ohm Temperature Diode Voltage Tester in Kuwait BSIDE Handheld Oscilloscope Multimeter, 10MHz Bandwidth Automotive Oscilloscope, Current Capacitance Frequency Ohm Temperature Diode Voltage Tester in Kuwait BSIDE Handheld Oscilloscope Multimeter, 10MHz Bandwidth Automotive Oscilloscope, Current Capacitance Frequency Ohm Temperature Diode Voltage Tester in Kuwait BSIDE Handheld Oscilloscope Multimeter, 10MHz Bandwidth Automotive Oscilloscope, Current Capacitance Frequency Ohm Temperature Diode Voltage Tester in Kuwait BSIDE Handheld Oscilloscope Multimeter, 10MHz Bandwidth Automotive Oscilloscope, Current Capacitance Frequency Ohm Temperature Diode Voltage Tester in Kuwait

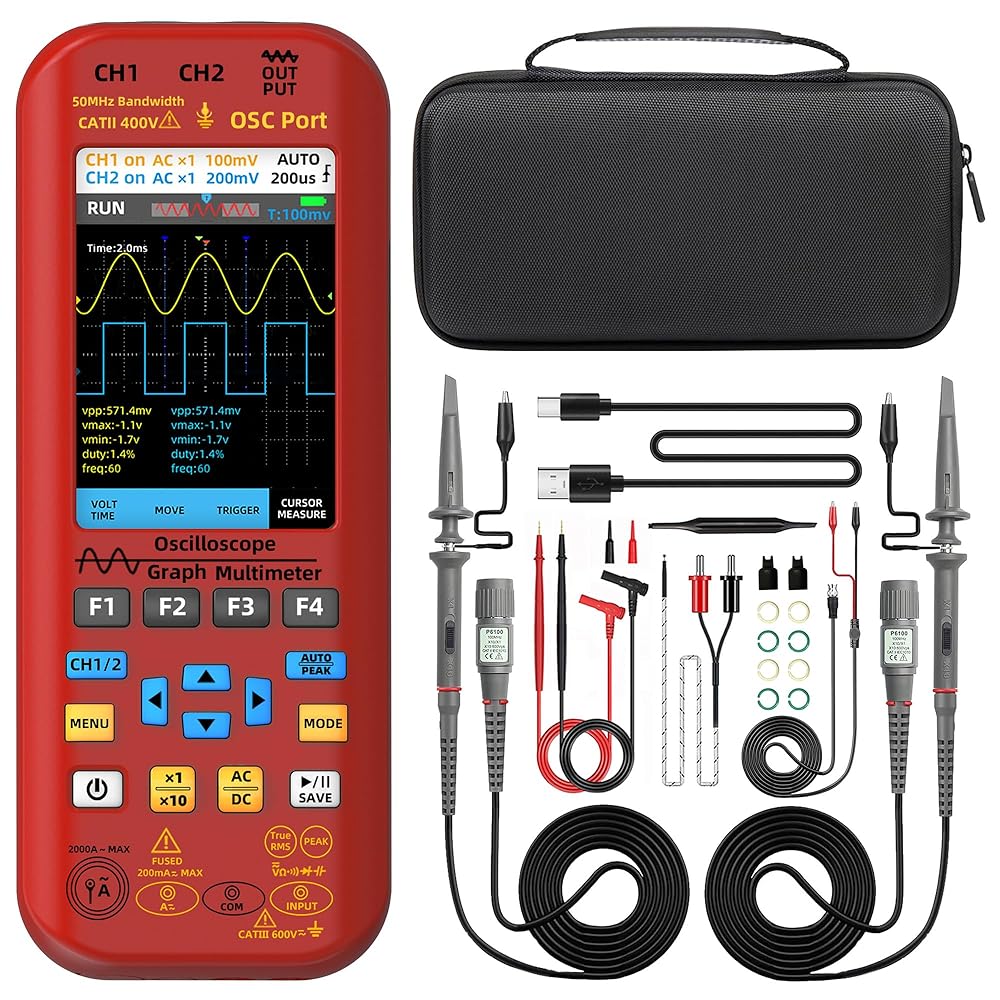

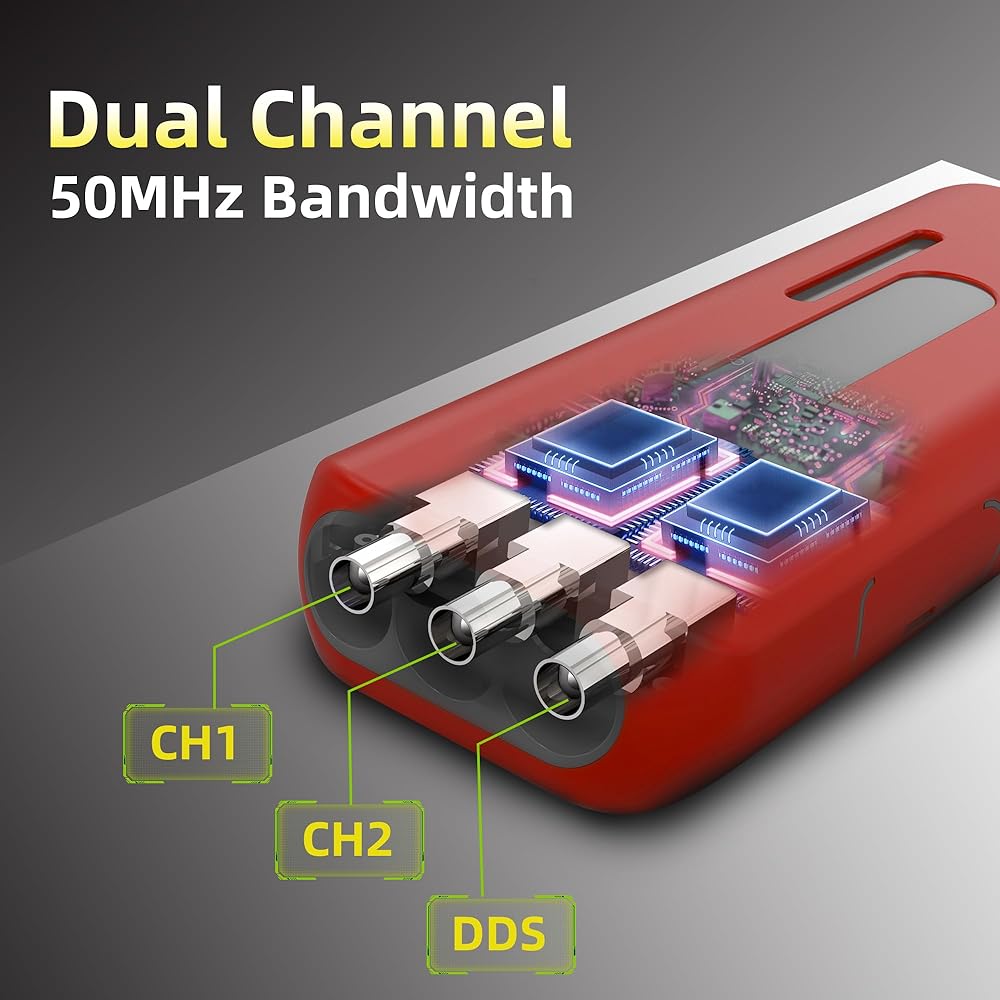

BSIDE Dual Channels Handheld Oscilloscope 50MHz Bandwidth 3.98" Full-Viewing Touch LCD Scope Tester DDS Generator with 3000mAh Rechargeable Battery for Automotive Lab Electronic Repair Motor Control

KWD 33.500

Brand
BSIDE
ColorO2
1 +

Special Features

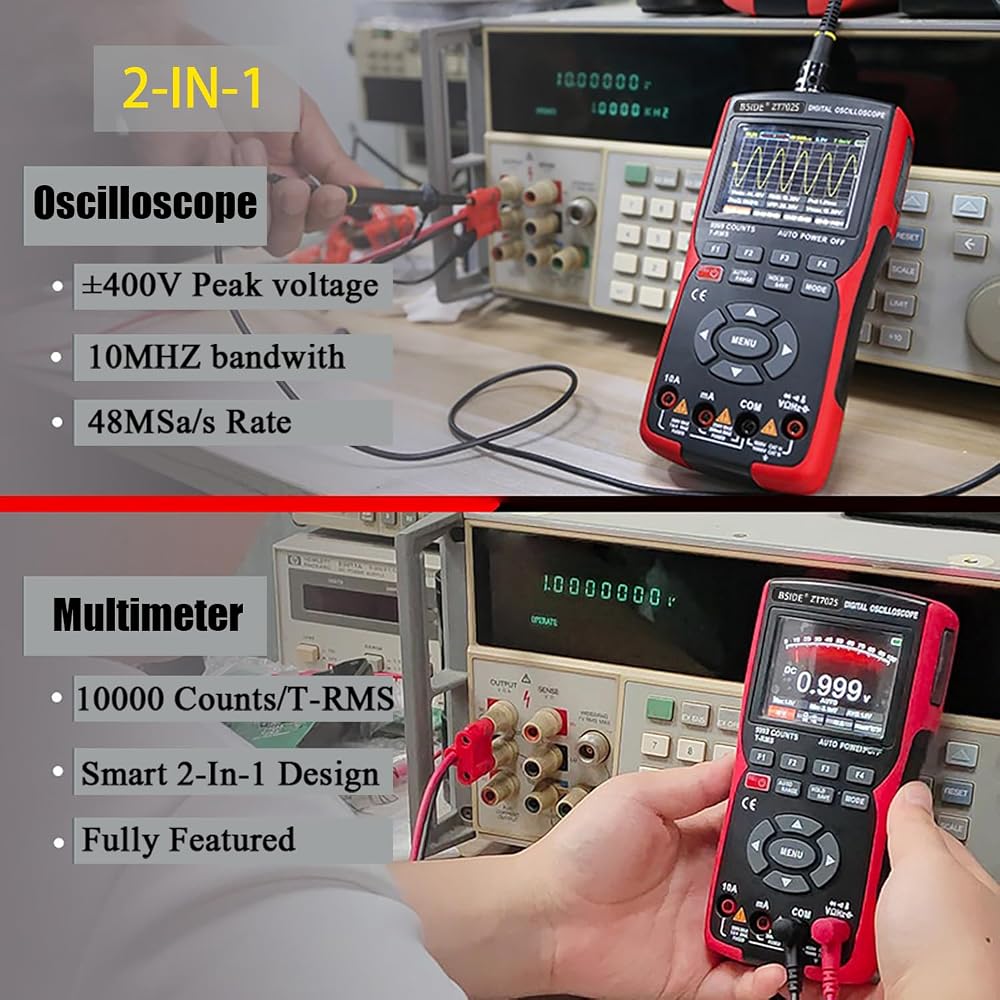

  • [Scope Mode]: 2.8" IPS color LCD oscilloscope, 10MHZ bandwith, 48MSa/s real-time sampling rate, auto-calibration function, memory function, etc.

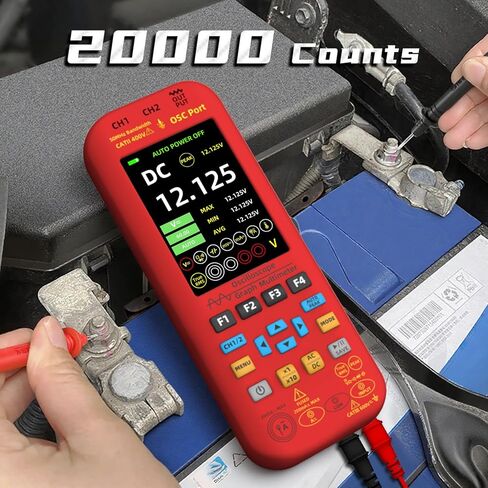

  • [Multimeter Mode]: 9999 counts, MAX/Min value, capacitance, current, temperature, diode, voltage, resistance, frequency, continuity test.

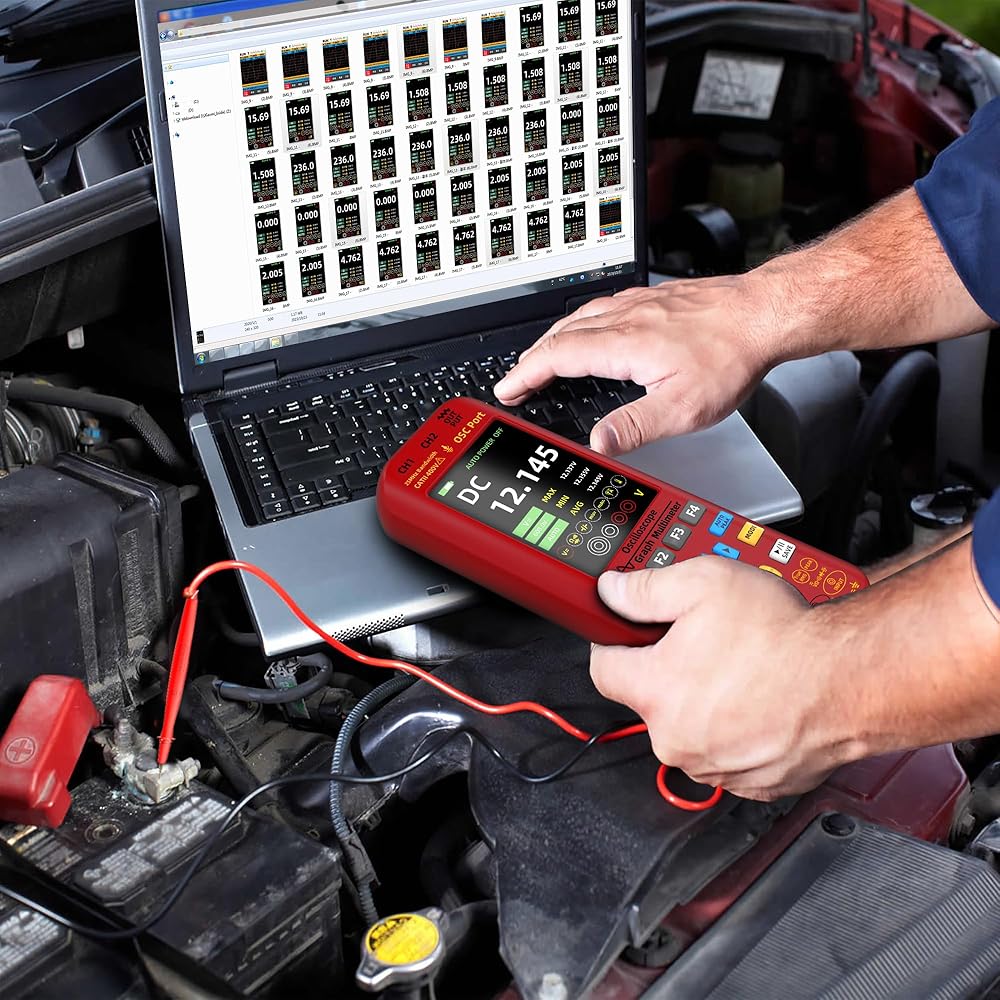

  • [Data Saved and Transfer]: The tested data can be saved and transfered.

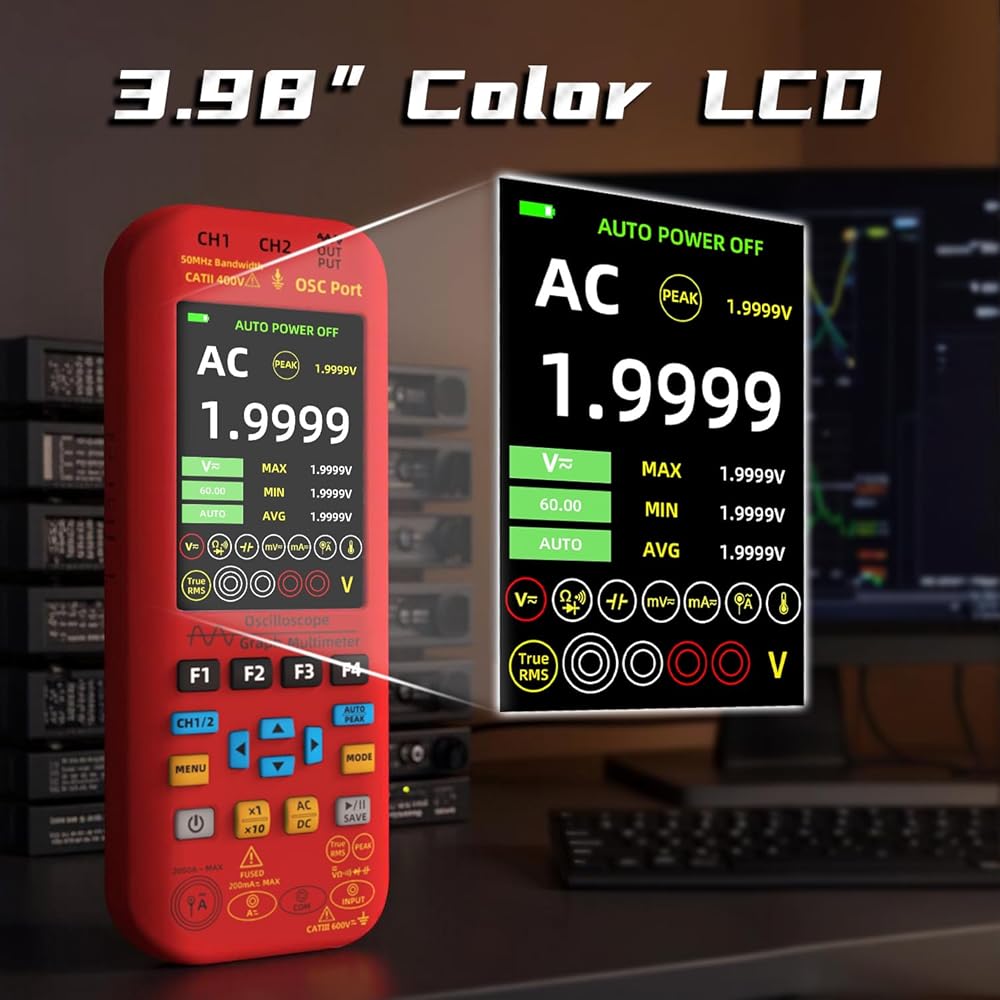

  • [Color LCD Display]: Color LCD display greatly enhance the reading experience, very easy to read, even in bright sunlight or poor light.
  • [Rechargeable]: Come with a rechargeable battery & charging cable, you will never worry about power problem.

Description

Features:

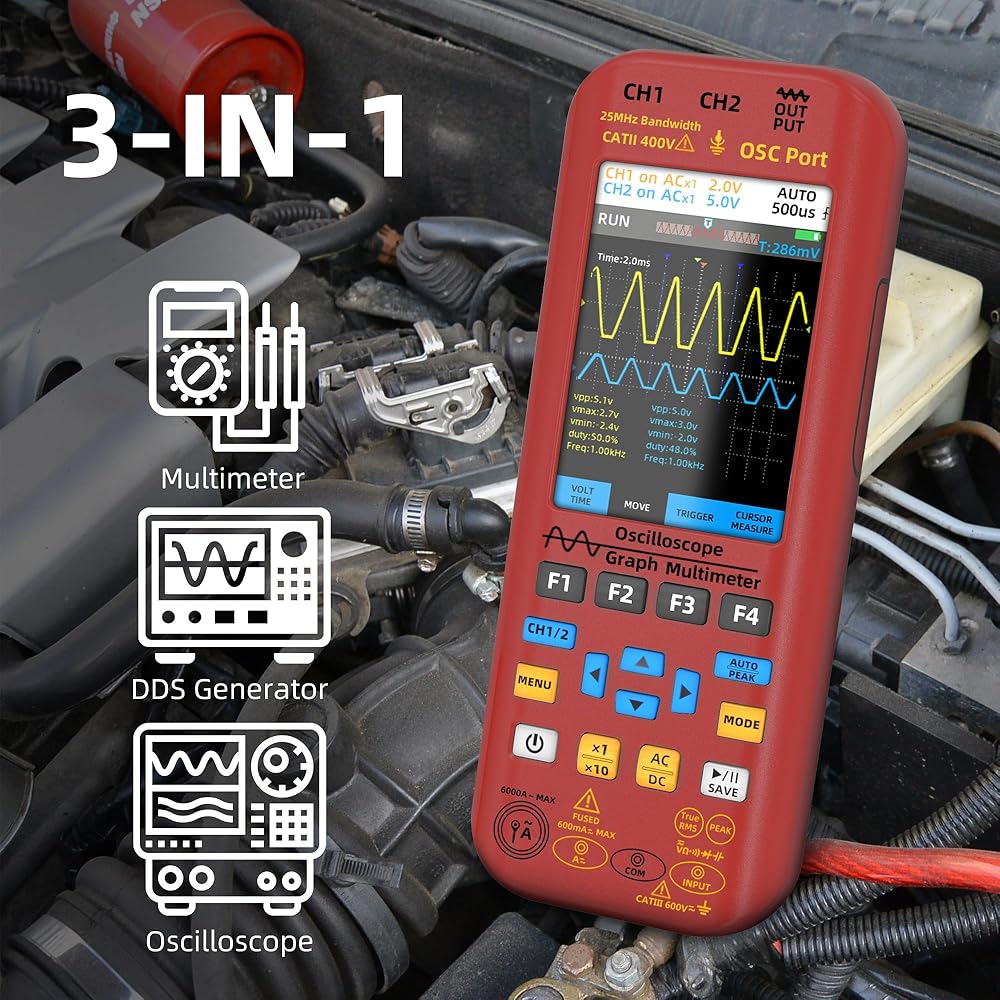

Oscilloscope and multimeter

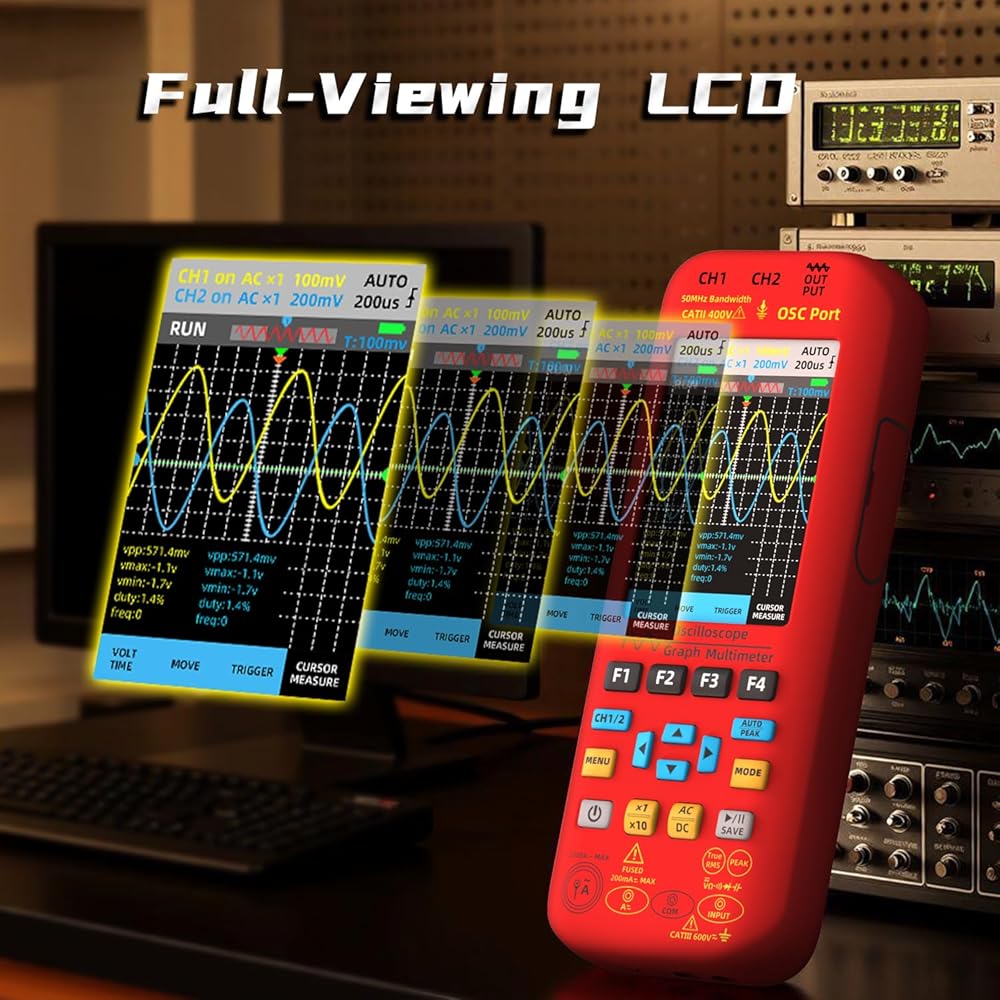

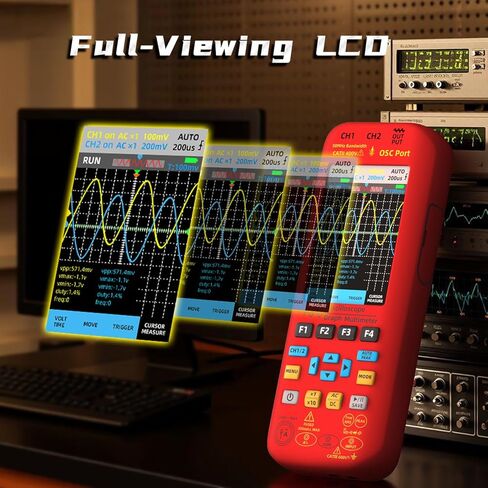

Color LCD display
Automatic test function
Adjustable backlight
rechargeable
Low battery indication

Specifications:
Display: 9999 counts

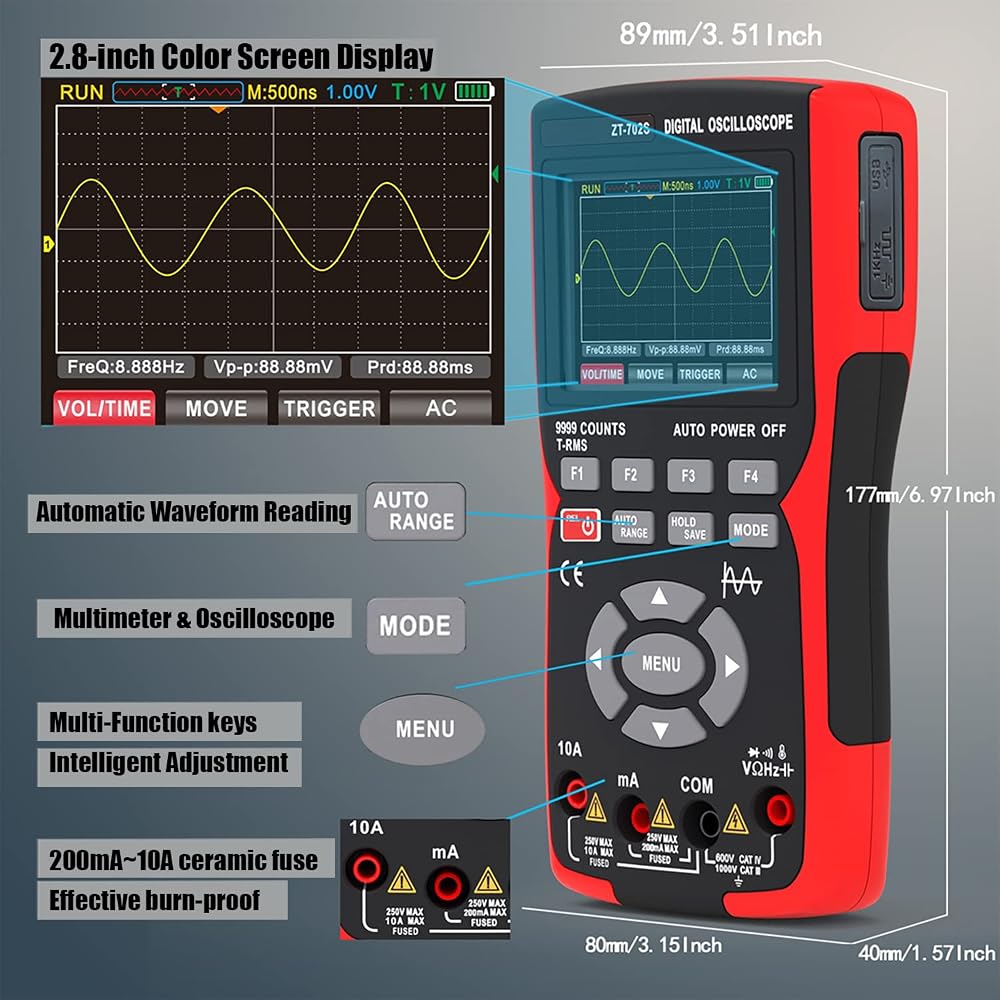

Screen Size: 2.8 inch
Bandwith: 10MHz
Real-time smaple rate: 48MSa/s
Input Impedance: 1MΩ,@16pf
Maximum input voltage: 400V (DC+AC peak)
Horizontal SEC range: 50ns/div -20s/div
Vertical sensitivity: 20mV/div -10V/div
DC voltage:
9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V 0.001mV/0.01mV/0.1mV/0.001V/0.01V/0.1 V ±(0.5%+3)
AC voltage:
9.999mV/99.99mV/999.9mV/9.999V/99.99V/750.0V 0.001mV/0.01mV/0.1mV/0.001V/0.01V/0.1 V ±(1.0%+3)
DC current:
9999μA/99.99mA 1μA/0.01mA ±(0.8%+3); 999.9mA/9.999A 0.1mA/0.001A ±(1.0%+3)
AC current:
9999μA/99.99mA 1μA/0.01mA ±(1.0%+3); 999.9mA/9.999A 0.1mA/0.001A ±(1.2%+3)
Resistance:
99.99Ω0.01Ω ±(1.0%+3); 999.9Ω/9.999kΩ/99.99KΩ/999.9KΩ 0.1Ω/0.001KΩ/0.01KΩ/0.1KΩ ±(0.5%+3);
9.999MΩ 0.001MΩ±(1.5%+3); 99.99MΩ 0.01MΩ ±(3.0%+5)
Capacitance: 9.999nF 0.001nF ±(5.0%+20);
99.99nF/999.9nF/9.999µF/99.99µF/999.9µF 0.01nF/0.1nF/0.001µF/0.01µF/0.1µF ±(2.0%+5);
9.999mF 0.001mF ±(5.0%+5)
Frequency:
99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/5.000MHz 0.01Hz/0.1Hz/0.001kHz/0.01kHz/0.1kHz/0.001MHz ±(0.1%+2) Temperature: -20℃-1000℃/-4℉-1832℉ ±(2.5%+5)
Diode: Yes
Continuity: Yes
Power: rechargeable battery

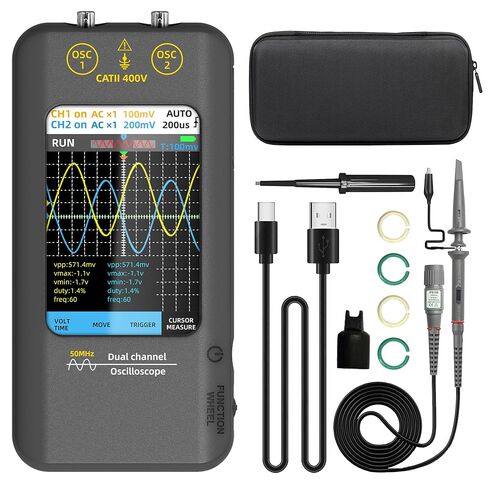

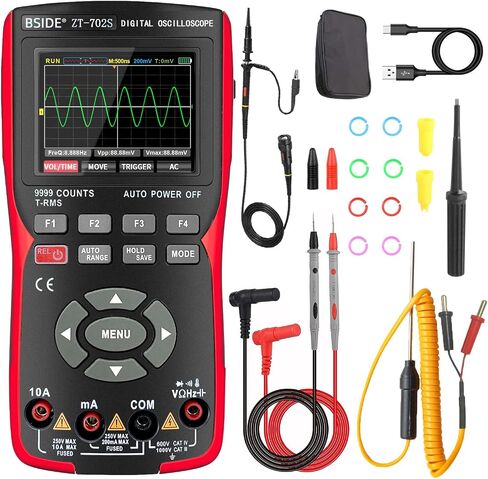

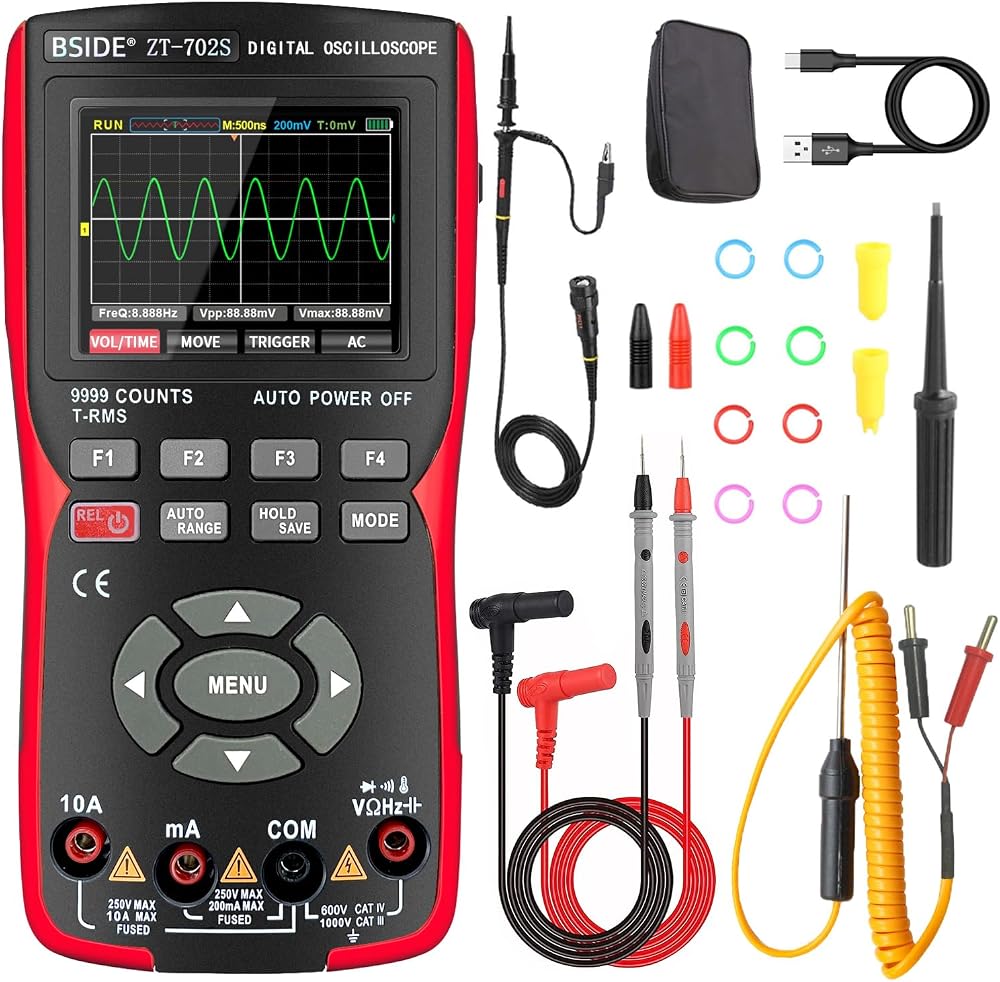

Package Includes:
1 x Oscilloscope
1 x Test Leads
1 x Oscilloscope probe
1 x Thermocouple
1 x Carrying Case
1 x Screwdriver
1 x User Manual
