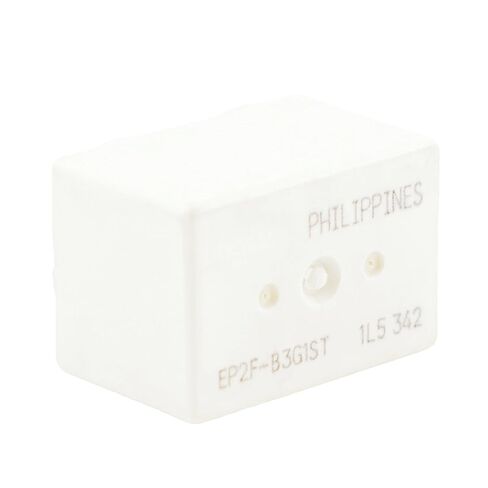

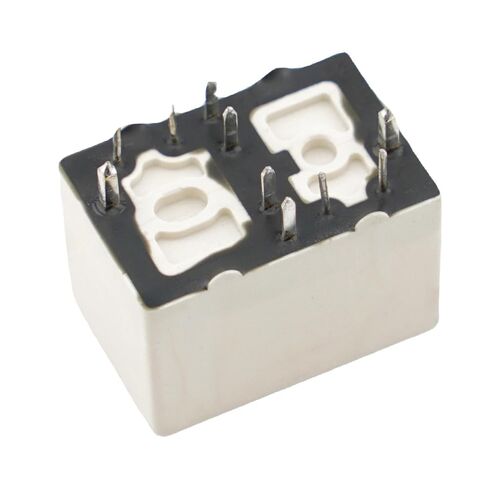

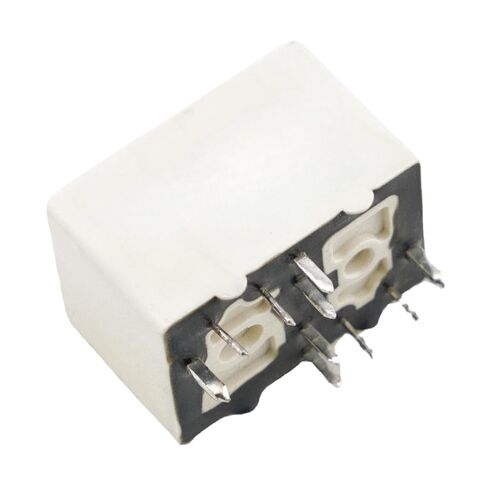

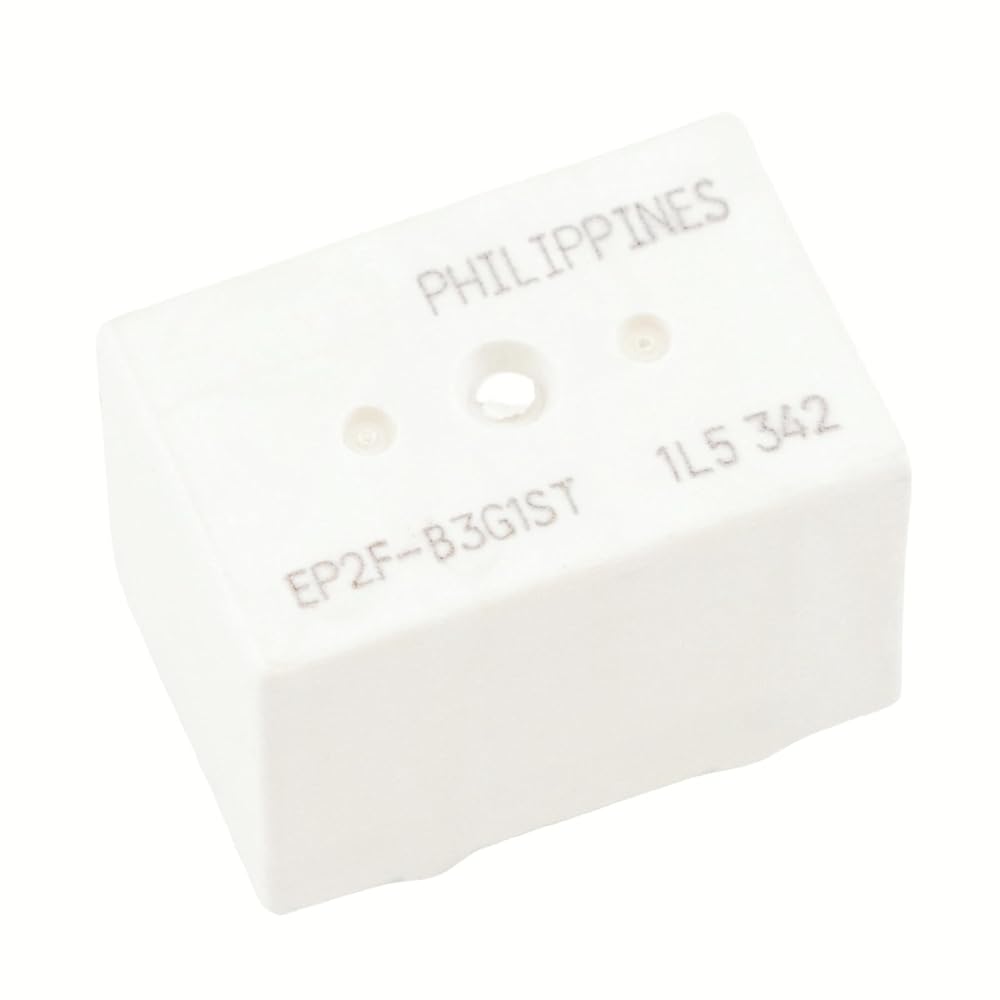

EP2F-B3G1ST 12V 30A 10Pin Automotive Power Relay with Silver Oxide Complex Alloy Type II

KWD 7
Brand
Song Chuan
– 1 +

Special Features

  • Twin relay for motor and solenoid reversible control.
  • 50% Iess relay space than conventional two relays.
  • Contact switching current of 30 A max.
  • High performance and productivity by unique symmetrical structure.
  • Delivered in stick-tube for automatic insertion machine.

Description

Nominal Coil Voltage: 12VDC
Contact From:1 From C X2
Contact material: Silver oxide complex alloy
Resistive load: 30A
Operate time : Approx. 5 ms (at 12 Vdc)
Release time : Approx. 7 ms (at 12 Vdc), with diode
Insulation resistance:1000MΩ min.(at 500 VDC)
Operating ambient temperature: -40~ +85°C (no freezing)
Weight: Approx.15g
Package Content: 1 xEP2F-B3G1ST 12V
Attention:
Do not switch the contacts without any load as the contact resistance may become increased rapidly.
Do not use relays that exceed coil ratings, contact ratings, and life expectancy, as doing so may result in Risk of overheating.
