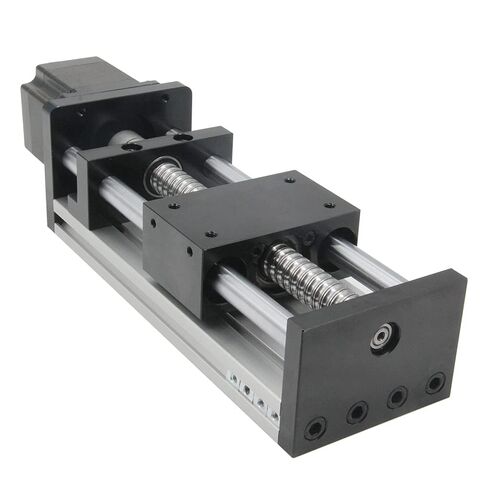

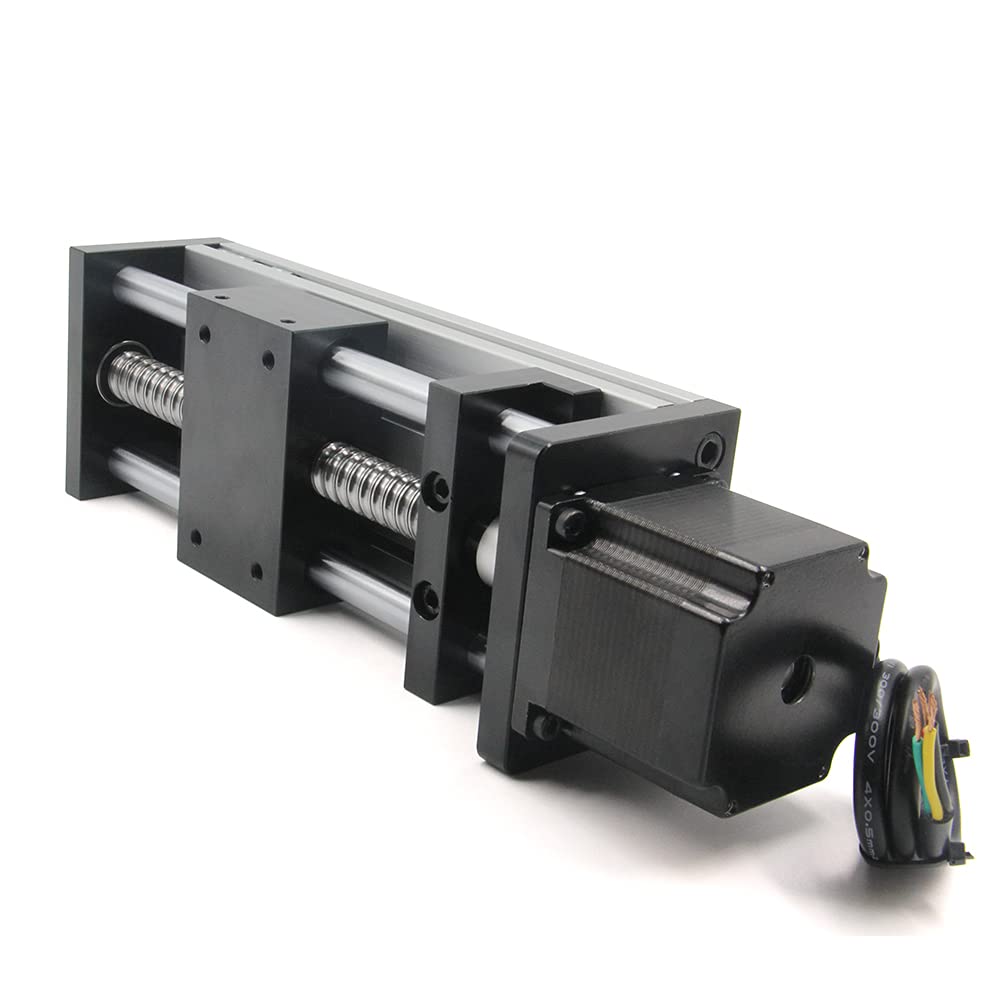

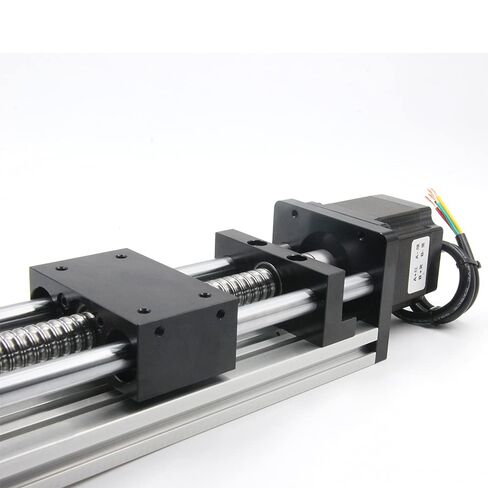

Zeberoxyz 1PCS 100mm Length Effective Travel Dual Optical Axis Guide Ballscrew SFU1605 with NEMA23 Stepper Motor for DIY CNC Router Parts X Y Z Linear Stage Actuators and 3D Printer (Size:100mm)

KWD 38
Brand
Zeberoxyz
Weight
2.7 kg
Size100mm
– 1 +

Special Features

  • High quality brand new products
  • Material: Made of high quality metal, fine workmanship, stable performance and high work efficiency, and is an essential part of linear motion
  • High Accuracy: Repeat positioning accuracy is ±0.03mm; Load:Maximum horizontal load capacity: 30kg; Maximum vertical load capacity: 15kg; Speed: 0-100mm/s
  • Effective stroke: 150mm/5.9inch effective stroke,Lead:5mm ( lead screw can moves 5mm in one turn)
  • Package Content: 1PCS Dual Optical Axis Actuator with NEMA23 Stepper Motor

Description

Specifications:
Product Name: 150mm Effective Travel Length Double Optical Axis Guide Ballscrew SFU1605 with NEMA23 Stepper Motor
Install: 4pcs M5 threaded hole to fix the workpiece
Stepper motor Parameter:
Step angle: 1.8 degree
Motor flange size: 57mm
Motor length: 56mm
Holding torque: 1.2N.m
Current: 3A
Resistance: 0.8 ohm
Inductance: 2.4 mH
Rotor Inertia: 440g.cm
Lead wire: 4pcs
Wiring:
Red: A+
Green: A-
Yellow: B+
Blue: B-
Linear Stage Actuator Parameter:
Effective Travel Length: 150mm/5.9inch
Total length :326mm/12.8inch
Type: Dual Optical axis system moulde
Ballscrew type: SFU1605 (diameter:16mm, pitch of screw:5mm)
Level ballscrew: C7
Weight: about 2540g
Package Content:
1PCS Dual Optical Axis Actuator with NEMA23 Stepper Motor
PLEASE NOTE:
Please allow 0-3mm error due to manual measurement.
Due to different display screens and lighting effects, the actual color of the item may be slightly different from the color shown.
Any question or problem, do not hesitate to contact or QA us,we will try our best to service you with in 24 hours.
