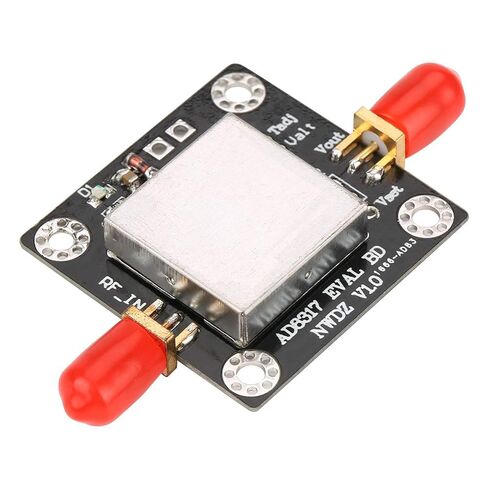

AD8317 1M-10GHz 60dB RF Power Meter, Detect Current in -55dBm to 0dBm RF Converter to DC Output Logarithmic Detector Controller for Amplifier

KWD 6
KWD 6.500
Brand
Vikye
– 1 +

Special Features

  • The product was developed using the AD8317 chip and is used for the detection of RF .
  • Can detect current in -55dBm to 0dBm of an RF , converting the RF into DC output.
  • The greater the amplitude or power of the RF , the higher the output voltage, and the output voltage is directly proportional to the logarithm of the input amplitude, thereby widening the dynamic range of the detected
  • It can be widely used in radio frequency detection, power measurement, environmental field strength detection.
  • It can also be used as part of automatic gain control and automatic level control.

Description

Specifications:

Input impedance: 50 ohms
Output impedance: 50 ohms (video impedance)
Working frequency Freq: 1 MHz ~ 10 GHz
Output voltage range: 1.6 ~ 0.4 V (equivalent to -55 ~ 0 dBm)
Input / output ratio: 22mV / dBm
Input dynamic range: -60 ~ + 5dBm (high linear dynamic range: -55 ~ 0 dBm)
Supply voltage: + 3.3 ~ 5V.DC @ 20mA

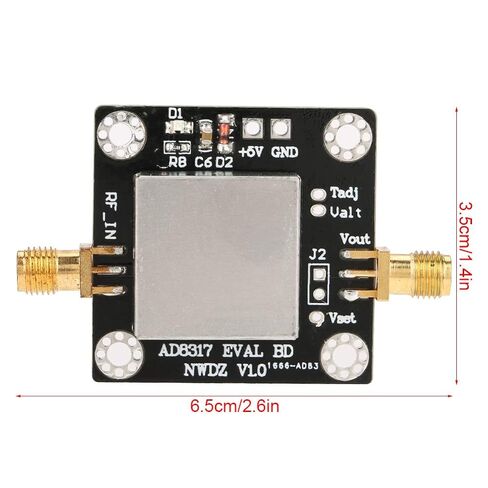

Size: 6.5 * 3.5cm / 2.6 * 1.4 inches
Weight: about 9g / 0.3 ounces

Package content:

1 x logarithmic power meter
