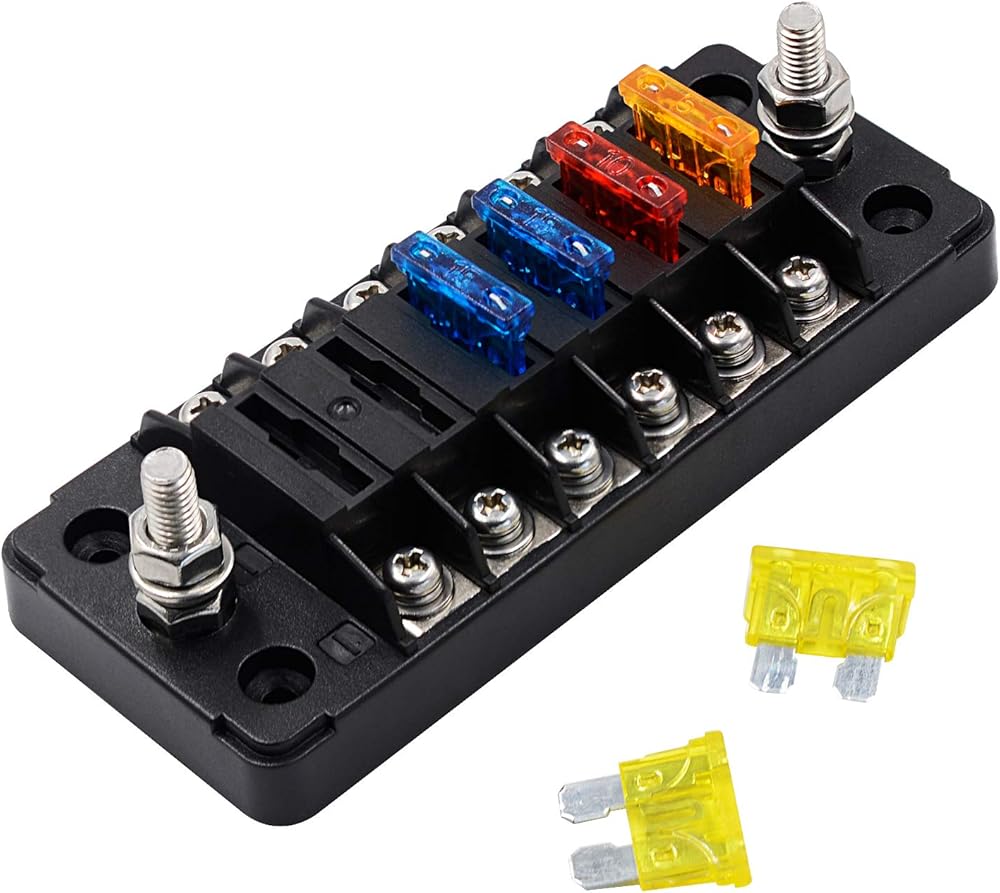

The 6-Way Fuse Box is suitable for DC circuit connection within 32V, with the maximum load circuit of 100A and no more than 30A for each circuit.
The high hardness base made of PBT environmentally friendly material has good insulation, heat resistance and flame retardancy, safer to use.
PC shell can be installed and removed by twisting the nut, very convenient, dustproof and splashproof, to avoid the damage of the fuse from the surrounding environment.

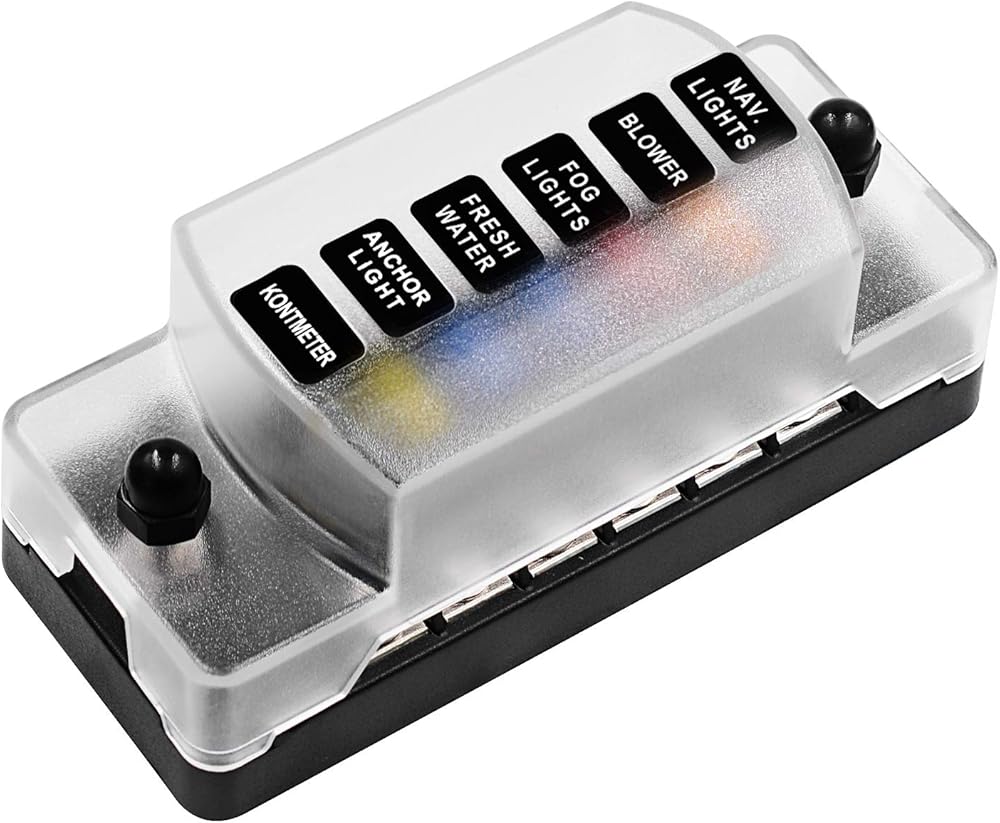

Equipped with the name of the device sticker, according to your own needs to paste different labels on the dust cover, easy to identify and find the fuses for different devices.
Suitable for all DC power vehicles up to 32V, including cars, boats, SUVs, RVs, etc.

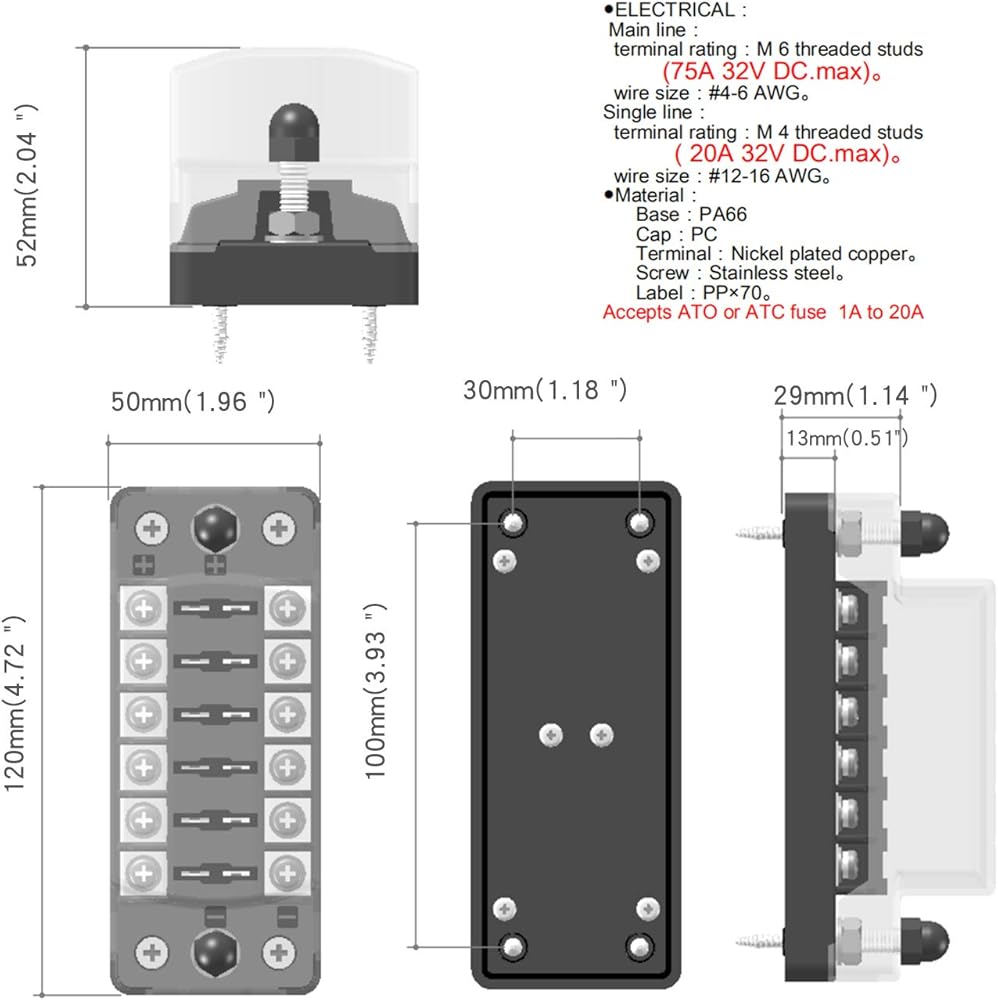

Specifications:

Electrical:
Main Line :

Terminal Rating : M 6 threaded studs (75A 32V DC.max)

Wire Size : #4-6 AWG

Single Line :

Terminal Rating : M 4 threaded studs (20A 32V DC.max)

Wire Size : #12-16 AWG

Material:

Base: PA66

Cover: PC

Terminal: Nickel plated copper

Screw: stainless steel

Size:Approx. 12x5x5.2cm/4.72x1.97x2.05inch

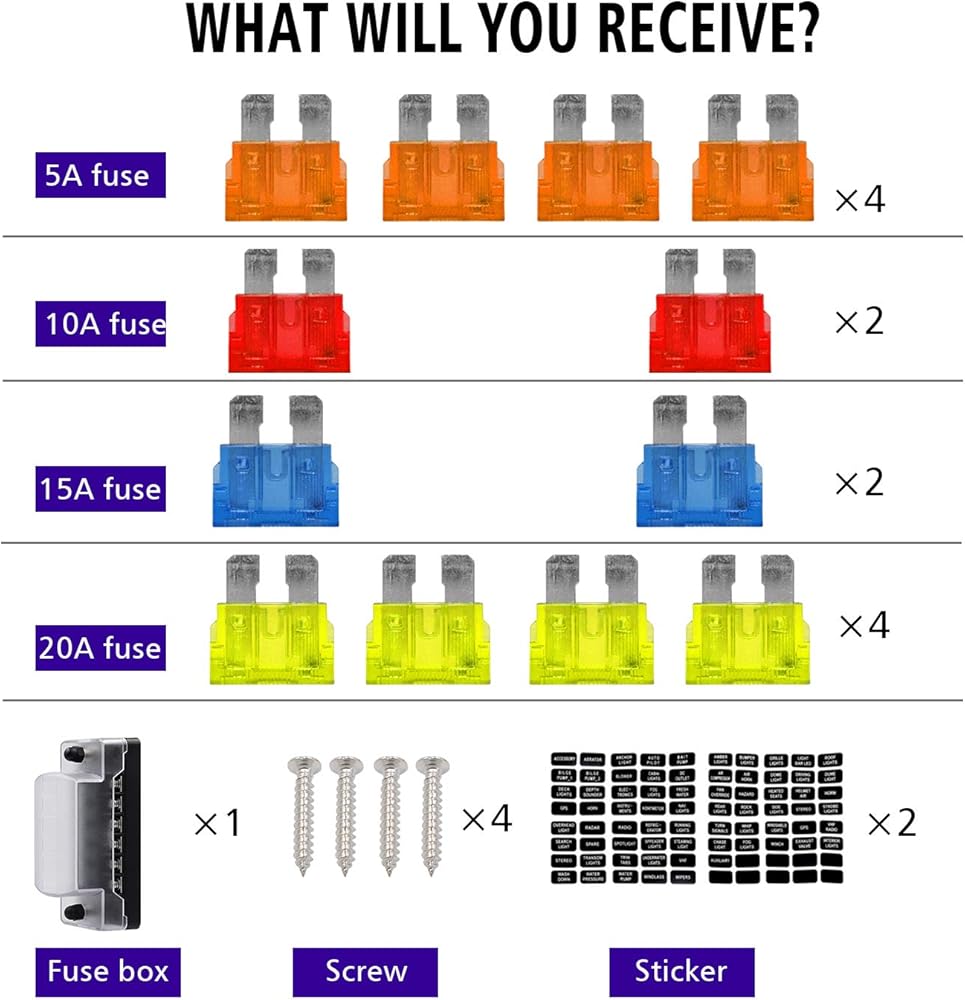

Package Included:

1 x 6 Way Blade Fuse Box with Protection Cover

4 x 20A Fuse

2 x 15A Fuse

2 x 10A Fuse

4 x 5A Fuse

4 x Screw

2 x Sticker
