مميزات خاصة

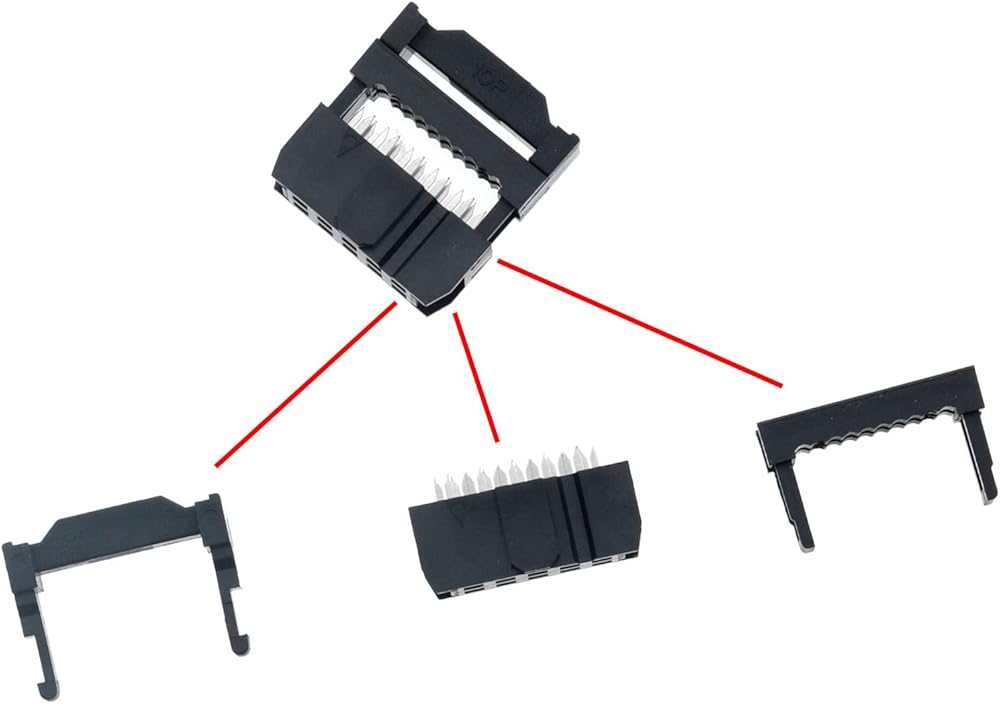

10-pin standard 0.1inch (2.54mm) socket with 0.1inch (2.54mm) pitch connectors.
It mates with standard 0.1inch (2.54mm) PCB pin headers or male IDC connectors.
Insulation displacement (IDC) contacts allow them to be quickly and easily crimped onto flat ribbon cables.
Easy to use: Just put the flat cable and IDC connector that needs to be crimped into the crimping device for crimping, so that the insulation at the crimp is always facing the wire. Do not pull them apart when crimping.

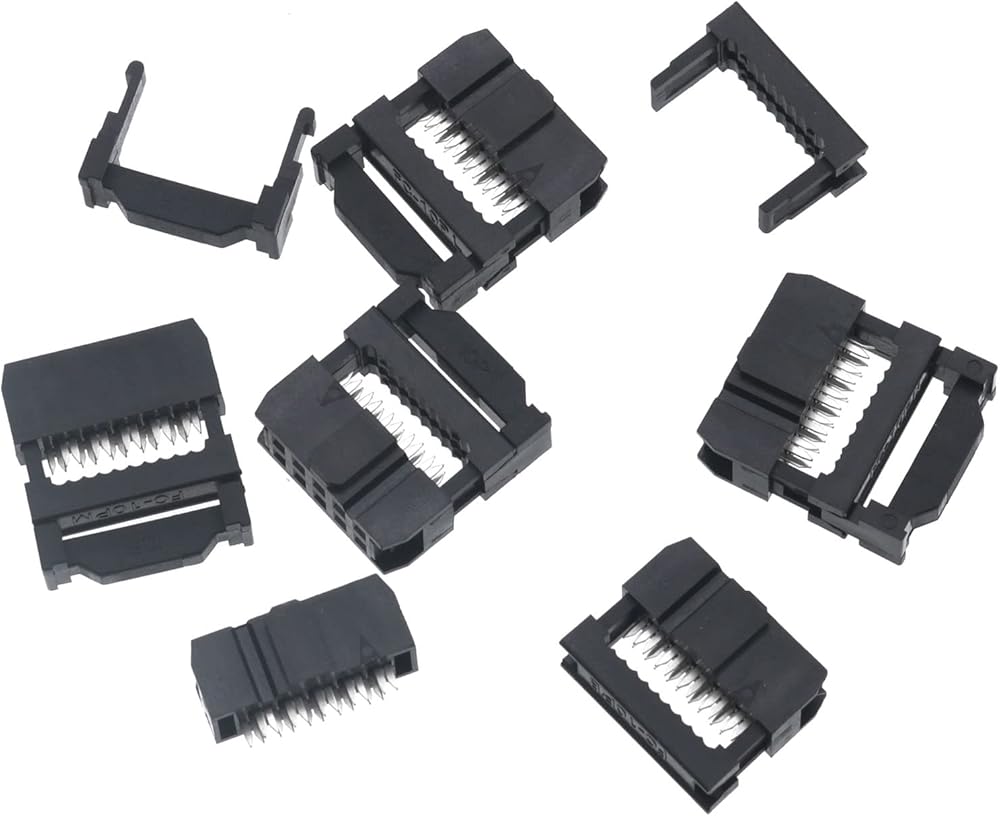

Package Contents: 20PCS 2 x 5pin 10 Pin Double Row IDC Female Socket Connector.

وصف

Specification:

Model: 2.54IDC-10P

Number of rows: 2

Needles/digit: 10

Connector Type: IDC Female Thread

Pitch: 2.54mm/0.1inch

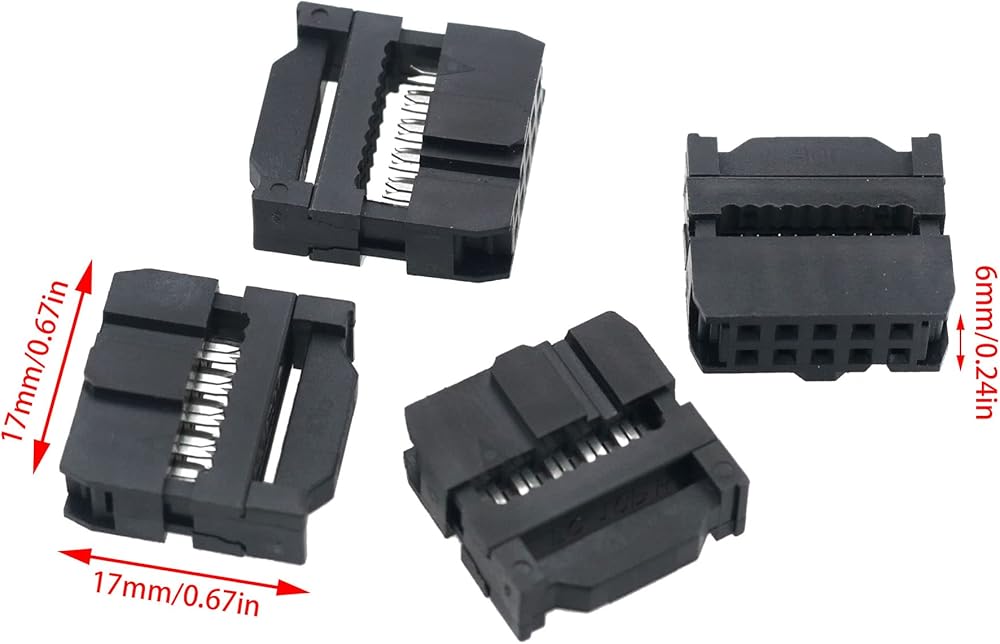

Overall Dimensions: 17 x 17 x 6mm/0.67 x 0.67 x 0.24 inch (Lx WxH)

Colour: Black

Material: high quality phosphor bronze raw material

Insulation material: PVC

Contact Material: Brass

Rated current: 3A

Operating temperature: -40 degrees Celsius to +105 degrees Celsius

Contact Resistance: 20m ohms max at DC 100mA

Insulation Resistance: 1000M ohm minimum at 500V DC

Withstand voltage: AC 1000V

Package Contents: 20PCS 10P IDC Socket Connector

Notice:
1) Different monitors may have different colors, please understand.
2) Please allow 1-2mm error due to manual measurement, please make sure you don't mind your bid.
