DIN السكك الحديدية جبل 12 قناة الروك التبديل التيار المتناوب 115 فولت 230 فولت وحدة توزيع الطاقة قطاع

KWD 16.500
أسلوبمفتاح الروك، جبل السكك الحديدية DIN
– 1 +

مميزات خاصة

  • Working voltage AC 70 to 250V. Maximum total input current 30 Amps. 12 Channels output, each channel maximum output current 10 Amps.

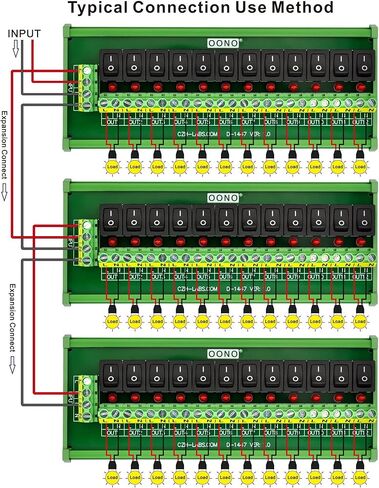

  • Input terminals pitch 7.62mm/0.3", maximum current 30 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.
  • Output terminals pitch 7.62mm/0.3", wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw.
  • Rocker switch ON/OFF power output for each channel. With switch power ON LED indication function.

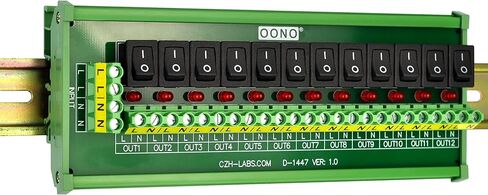

  • High quality fireproof nylon material DIN rail mount carrier, can support width 35mm 32mm 15mm rail. FR-4 fiberglass dual copper layers PCB.

وصف

1, Working voltage AC 70 to 250V. Maximum total input current 30 Amps. 12 Channels output, each channel maximum output current 10 Amps.
2, Input terminals pitch 7.62mm/0.3 inch, maximum current 30 Amps for per position, wire size 26 to 10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.
3, Output terminals pitch 7.62mm/0.3 inch, wire size 26 to 10 AWG, stripping length 8mm, Metric M3 slotted screw.
4, Rocker switch ON/OFF power output for each channel. With switch power ON LED indication function.
5, High quality fireproof nylon material DIN rail mount carrier, can support width 35mm 32mm 15mm rail. FR-4 fiberglass dual copper layers PCB.
