This worm gearbox is designed for Nema 34 Stepper Motor or other 86mmx86mm size motor, the output shaft is offset by 90° from the drive shaft. The advantage for this gearbox is efficiency and self-locking. Besides big cases, no gap structure of box means a maintenance- free that is hermetically sealed. It prevents the lubricant from easily losing and going bad, and exchanging.
Gearbox Specifications

*Manufacturer Part Number: NMRV40-G5-D14
*Gearbox Type: Worm Gearbox
*Gear Ratio: 5:1
*Efficiency: 87%
*Backlash at No-load: ≤1°
*Output Max.Permissible Torque: 40Nm(354.03lb-in)
*Output Max. Radial Load: 1.18kN
*Output Type: Hollow Bore
*Output Bore Diameter: Φ18mm
*Input Shaft Type: Key way
*Input Shaft Diameter: Φ14mm
*Input Shaft Max. Length: 35mm

Please note:

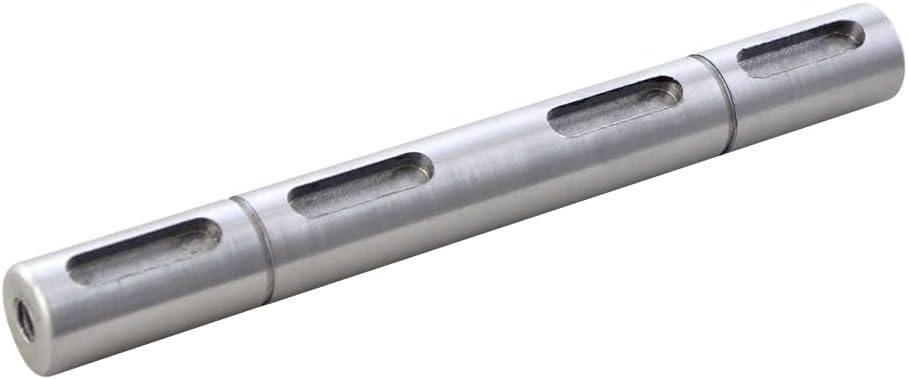

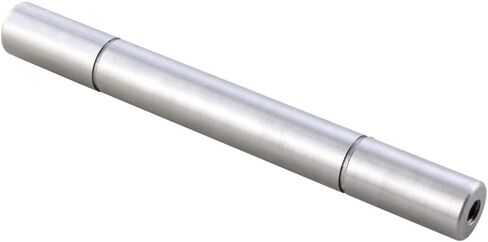

*The output shaft is available, please contact our technical support for your requirements.
*The gear ratios available for this gearbox are: 5:1, 7.5:1, 10:1, 15:1, 20:1, 25:1, 30:1 and 40:1.
*Due to their relatively high backlash (1°), worm gearboxes are not suitable for positioning applications.
