MEETOOT 100 قطعة P75-E2 الربيع اختبار التحقيق بوجو دبوس أدوات الاختبار ضياء 1.3 مللي متر رأس مخروطي 1.02 مللي متر كشتبان طول 16.5 مللي متر PCB اختبار دبوس الربيع الاتصال التحقيق

KWD 3
ماركة
MEETOOT
وزن
6 g
مقاسP75-E2
– 1 +

مميزات خاصة

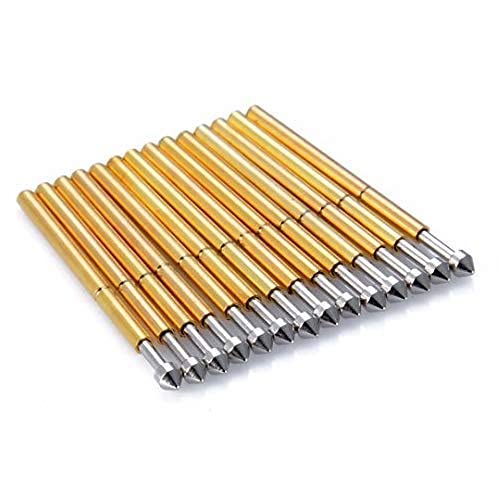

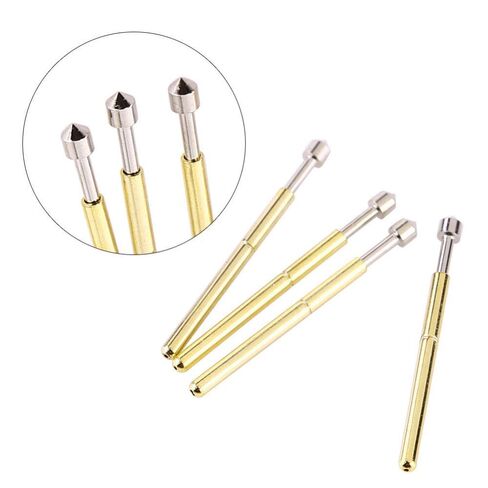

  • Type: 100pcs P75-E2 Spring Test Probe, E type conical head. Great replacement probes to extend the life of your test station.
  • Specification: Head Diameter 1.3mm, Tube Diameter 1.02mm, Shank Diameter 0.74mm, Length 16.5mm, Drill Size: 1.4mm, Minimum Test Distance 1.91mm, Full Stroke 2.50mm, Spring Pressure 100g, Current 3A, Resistance 50m Ohm
  • Made of high quality material, heat treated beryllium copper plunger, gold plated phosphor bronze barrel and gold plated stainless steel wire spring, good contact and durable to use.
  • Necessary parts for PCB conductive testing to access components on printed circuit assemblies, and test stability and durability.
  • Widely used for testing through-hole components, gold fingers(edge connectors) PCB and welding pads.

وصف

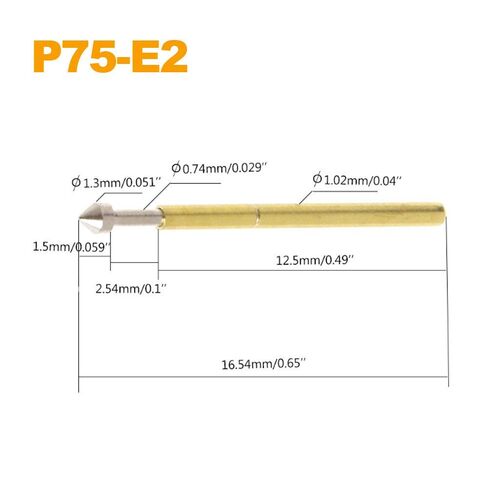

Specification:
Type: Spring Test Probe Pogo Pin
Model: P75-E2
Probe Head Diameter: 1.3mm
Probe Tube Diameter: 1.02mm
Probe Shank Diameter: 0.74mm
Probe Length: 16.5mm
Probe Sheath Diameter: 1.32mm
Drill Size: 1.4mm
Minimum Test Distance: 1.91mm
Full Stroke: 2.50mm
Spring Pressure: 100g
Current: 3A
Resistance: 50m Ohm
Color: Gold + Silver

Package Includes:

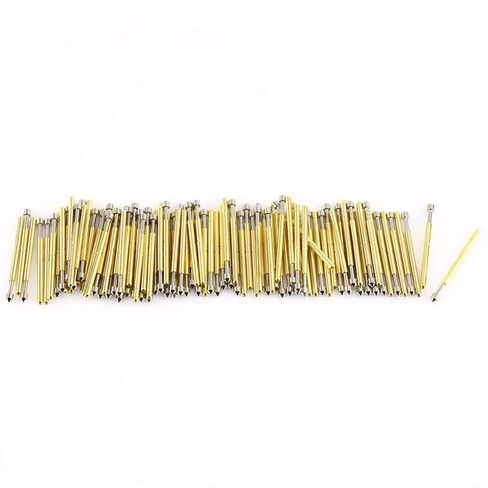

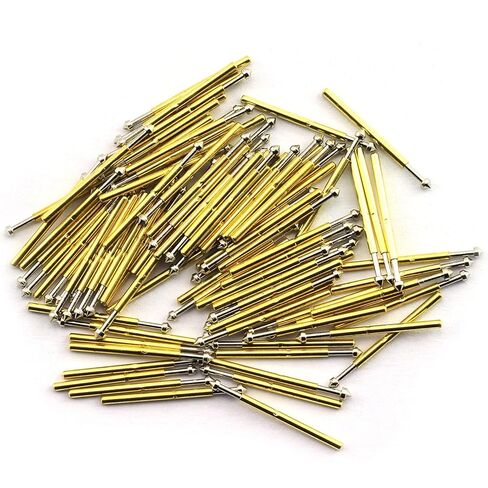

100 x Spring Test Probe Pogo Pin
