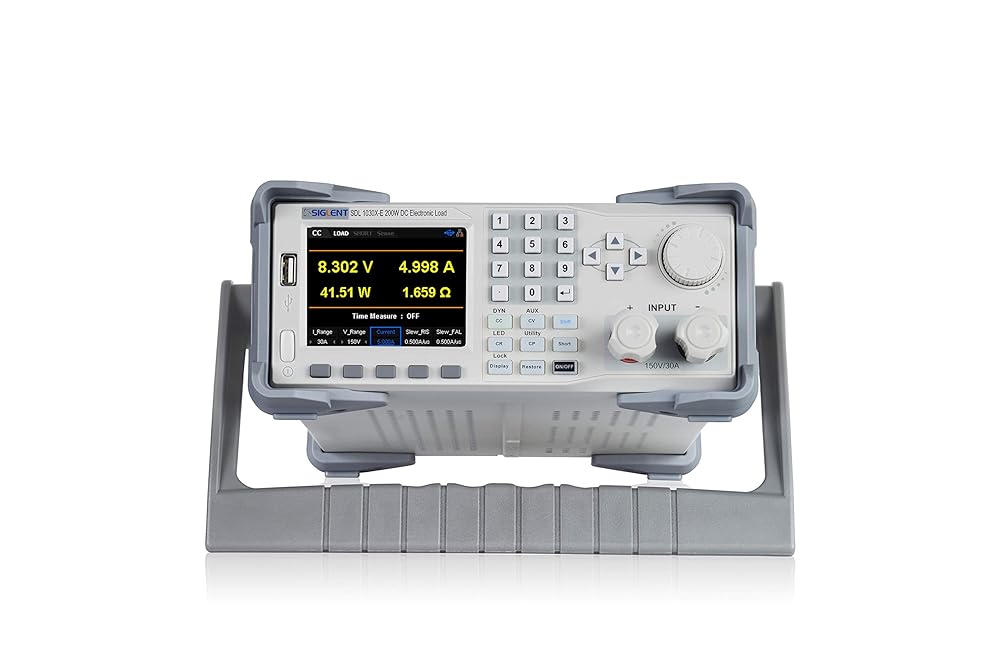

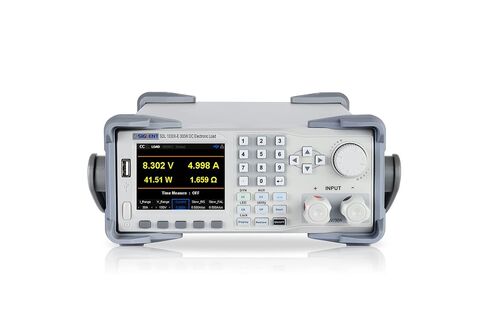

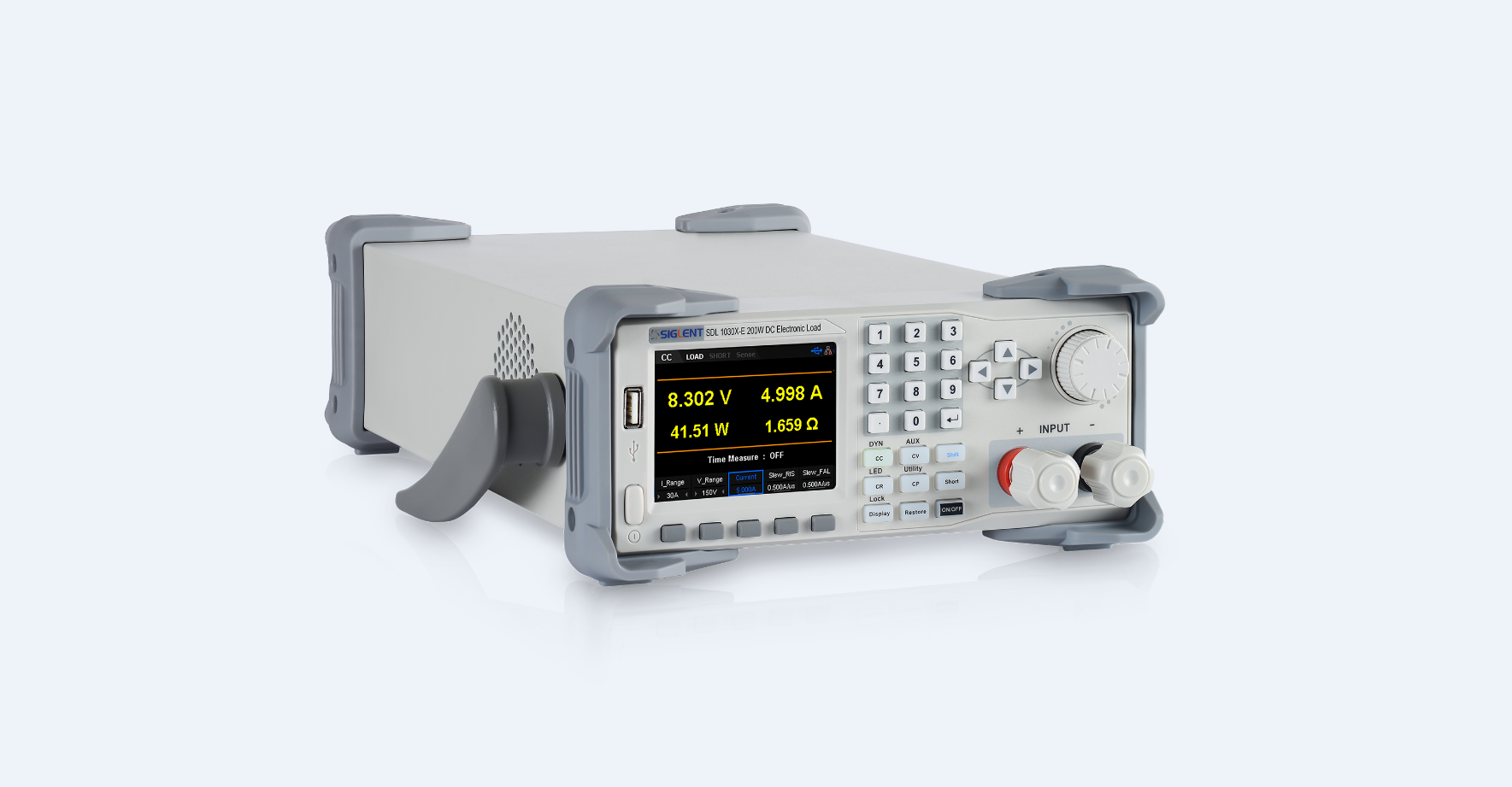

سيجلنت تكنولوجيز SDL1030X-E تحميل إلكتروني بتيار مستمر قابل للبرمجة، 1 قناة، 150 فولت / 30 أمبير، 300 واط

KWD 300
ماركة
Siglent
وزن
7.3 kg
– 1 +

مميزات خاصة

  • SDL1030X-E (Single channel ): DC 150 V/30 A, total power up to 300 W
  • 4 static modes / Dynamic mode: CC/CV/CR/CP
  • CC Dynamic mode: 25 kHz, CP Dynamic mode: 12. 5 kHz, CV Dynamic mode: 0. 5 Hz
  • Measuring speed of voltage and current: up to 500 kHz
  • Adjustable current rise time range: 0. 001 A/us~2. 5 A/us

وصف

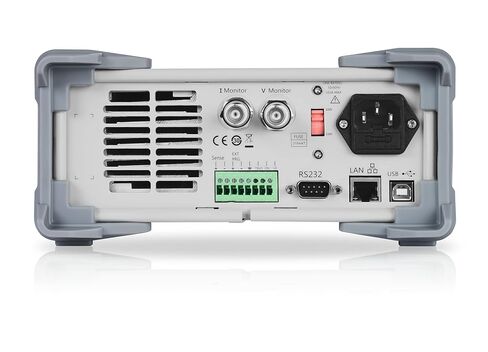

SDL1030X-E Programmable DC Electronic Load has a 3. 5 inch TFT-LCD display, a user-friendly interface and superb performance specifications. And it features an input range of150 V/30 A 300 W, resolution is 1 mV/1 mA and adjustable current rise times from 0. 001 A/μs~2. 5 A/μs. For remote communication and control, the SDL1000X-E series includes RS232/USB/LAN interface types. The SDL1000X-Eseries delivers stability over a wide range of applications and can meet all kinds of testing requirements. including: Power, battery/handheld device design, industry, LED lighting, automotive electronics, and aerospace.
