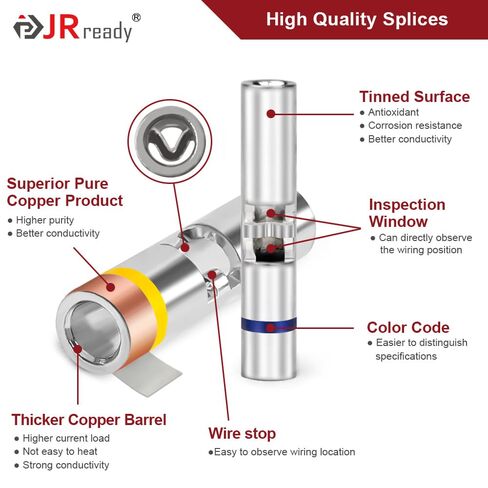

【High Quality Splices】JRready crimp splices are made of high-conductivity seamless purple copper, will not crack when crimped. The surface of the copper tube adopts matte tin plating process, after 48h salt spray test, no coating peeled off on the surface, showing excellent corrosion resistance.
【Features】The openings at both ends of the copper tube are chamfered so that the wires will not fall apart when inserted and will not be damaged. The wire stop structure design ensures that the insertion depth of the wires at both ends is consistent. The large inspection window design makes it easy to observe whether the wire is inserted in place, ensuring safe and reliable crimping every time.

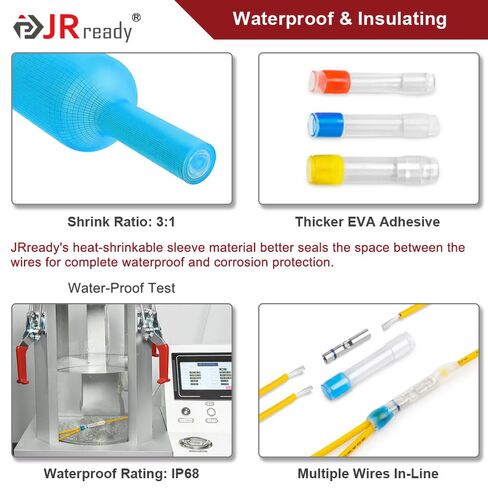

【IP68 Waterproof】The PE(-55~125℃/-67~257°F) insulation sleeves feature a 3:1 shrink ratio, and independent hot melt rings at both ends enable it to seal up to 2 wires, achieving IP68 waterproof rating. Copper tubes, PE sleeves and crimp die of the same color are in one-to-one correspondence to avoid incorrect operations, ensuring excellent waterproof performance and stable electrical connections.
【Advantages】Compared with the crimped or soldered one-piece type: The JRready split type butt connector does not cause the outer heat shrink sleeve to be crushed. You have much better control over, and clear view of the actual crimp. You also can avoid situations where the solder fails to melt or the insulation sleeve melts before the solder does. Compared with single copper tube: JRready's are equipped with heat shrink sleeves, making waterproof insulation safer.

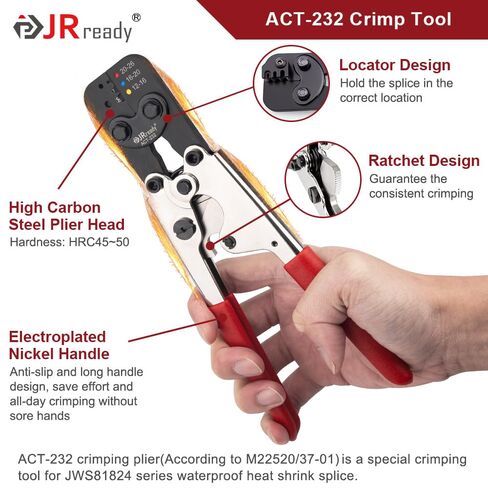

【Professional Crimp Tool】ACT-232 crimping tool is a special crimper for JRready butt splices. It is made of high-carbon steel and has a plier head with a hardness of up to HRC45-50, making it durable. High-precision ratchet design ensures the consistency of every crimp. It can also accurately crimp various heat shrink connectors(M81824/1, 6, 7, 8, 9, 10, 11, 13, 14 series).
【Wide Range Of Application】This heat shrink butt connectors kit has the advantages of waterproof, heat-proof, corrosion-proof, pressure-resistant, wear-resistant, easy to install, low installation cost and space saving. It is mainly used in railroad, ship, automobile, electric power, electronics, family electrical wire connections and other industries, ideal for diverse wire connection needs.
