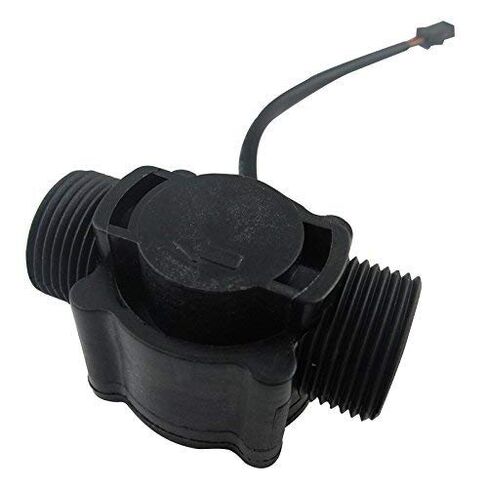

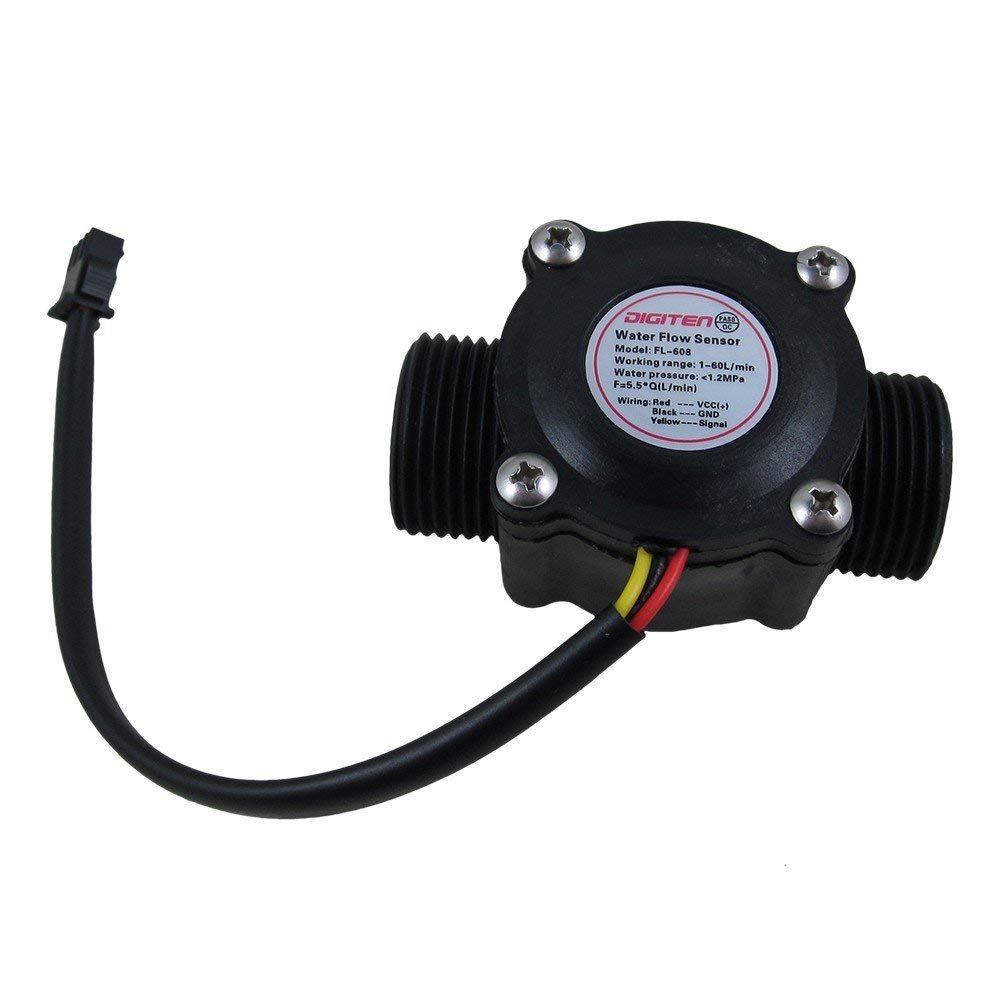

DIGITEN G3/4" Water Flow Sensor, Food-Grade Hall Effect Sensor Flow Meter Flowmeter Counter 1-60L/min - Arduino, Raspberry Pi, and Reverse Osmosis Filter Compatible

KWD 5
Brand
DIGITEN
Category
Sensors
Weight
61 g
Size15cm Cable Length
– 1 +

Special Features

  • ☺Work for Arduino, Raspberry Pi, and Reverse Osmosis Filter. Small size, waterproof, easy to install, heat resistance, pressure resistance, cold resistance.
  • ☺Material: All materials align with ROHS testing standards, and can be used for potable water.
  • ☺Cable length: 15cm. Flow range:1-60L/min, working voltage range:DC 5-18 V, allow compression:Water pressure 1.75 Mpa below.
  • ☺Hall effect sensor. Connect to G3/4 inch BSP male thread, if used for NPT, need thread seal tape. Output waveform: square wave, output pulse signal.
  • ☺Wide application: It is mainly used in water heater, coffee machine, water purifier, drinking fountain, beverage machine, campus smart card equipment, etc.

Description

Specifications:
Frequency: F=5.5 * Q (L / Min), error: ± 2%, current can not exceed 10mA, 330 pulses/liter. F=onstant * units of flow (L / min) * time (seconds).
Flow range:1-60L/min
Maximum current:10 mA(DC 5V)
Working voltage range:DC 5-18 V
Load capacity:≤10 mA(DC 5V)
Operating Temp: ≤80℃
Operating humidity: 35％ - 90%RH
Allow compression:Water pressure 1.75 Mpa below
Insulation resistance: >100M OHM
Storage Temperature:-25℃～80℃
Storage humidity:25%～95%RH
Output Waveform:Square Wave,output pulse singal.
Cable length:15cm.

Package include:
Flowmeter x 1
