7 دبوس

KWD 4.500
ماركة
PLUGOOD
وزن
49 g
مقاس7 دبوس
– 1 +

مميزات خاصة

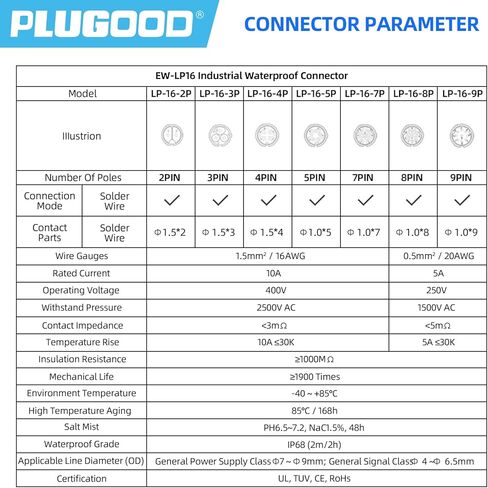

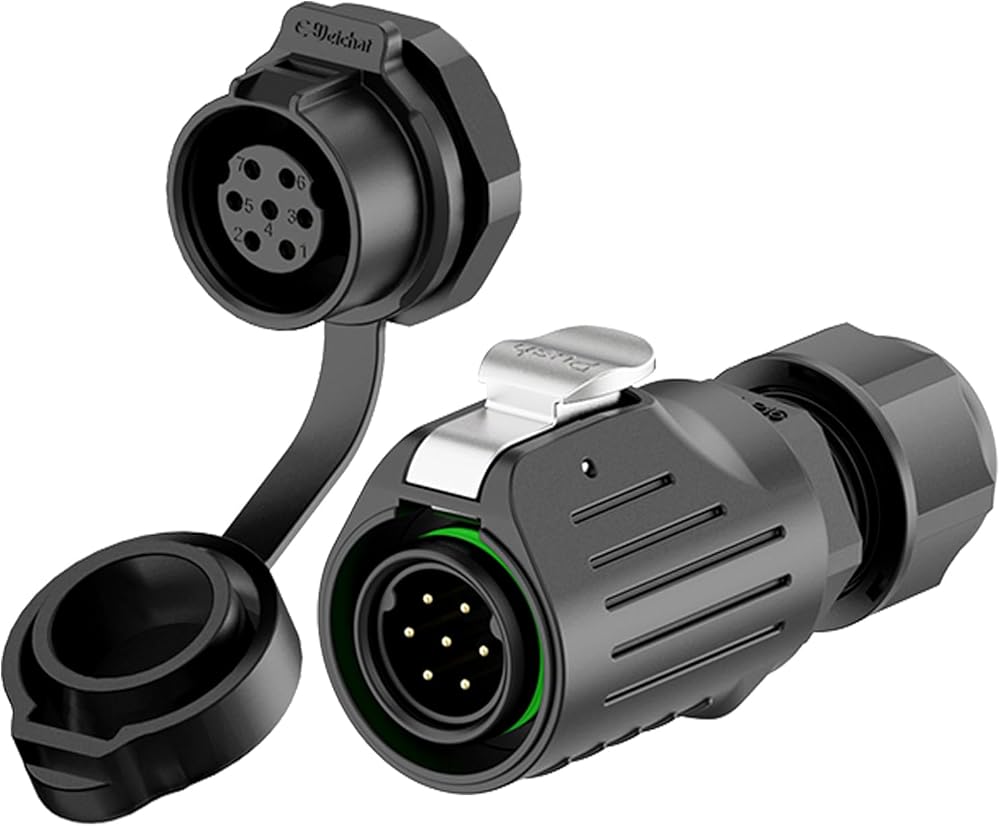

  • Pairing Type: Male Plug + Female Socket ; Connecting Mode: One-Touch Button Plug/Unplug ; Locking Method: Automatic Insertion, Self-Locking Device ; Protection Level: IP68(2m/2h)(Mated) ; Assembly Style: Solder ;
  • < Cable Standards >: Cable Specification: 0.5mm²/20AWG ; Cable Diameter Range: Ф7.0~Ф9.0mm; Contact Diameter × Number: φ1.0x8 ; Durability: ≥1900 Mating/Unmating Cycle ;
  • < Electrical Characteristics >: Rated Current: 5A ; Operating Voltage (AC.V.rms): 250V ; Puncture Test: 1500V ; Contact resistance: ＜5mΩ ; Insulation Resistance: ＞1000MΩ ; Prohibit Pluging While Energized ;
  • < Material Performance >: Shell Material: High Performance PBT Plastic Material ; Temperature Range: -40°C ~ 80°C ; High Temperature Aging: 85 ℃ / 168 H ; Temperature Rise: 5A 30K↓; Flame Retardant Grade: UL94 V-0 ; Seal: High Quality Silicone Ring ; Contact Core: Copper Alloy (Gold Plated) ;
  • < Widely Used >: In Various Challenging Environments. Suitable For Machinery, Medical, Servers, Photovoltaic, Energy Storage, Power Grids, Automotive, Marine, Communications, Detection, Measurement, Industrial Control, Audio-Visual Equipment, Stage Equipment, And More ;

وصف

Pairing Type: Male Plug + Female Socket ; Connecting Mode: One-Touch Button Plug/Unplug ; Locking Method: Automatic Insertion, Self-Locking Device ; Protection Level: IP68(2m/2h)(Mated) ; Assembly Style: Solder ;
