25mmx40mmx112mm 2

KWD 11
Size25mmx40mmx112mm
Number of Items2
– 1 +

Special Features

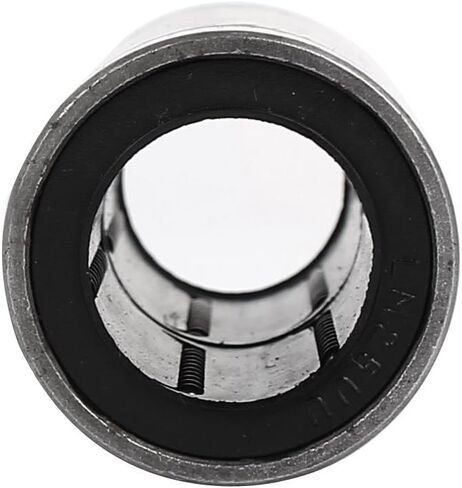

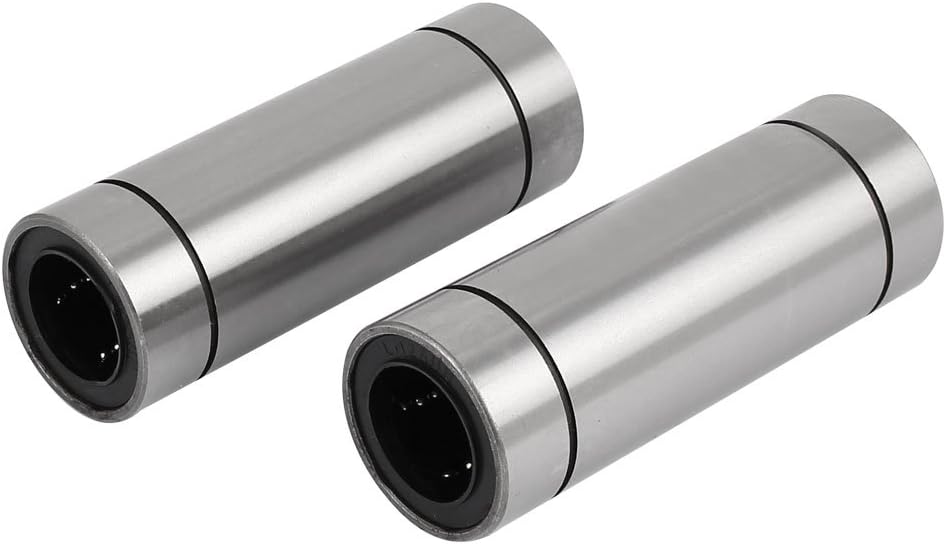

  • [SIZE] - Model: LM8LUU, 8x15x45mm Metric Double Seal Linear Bearing
  • [USAGE] - Linear bearings are part of linear motion systems, often used in conjunction with cylindrical shafts or guideways.
  • [FEATURES] - These ball bearing with two rubber dust sealed to prevent ingress of dirt, water and foreign matter
  • [CAPABILITY] - Static Load Capacity (Cor): 431N, Dynamic Load Capacity (Cr): 784N (Recommended load is 80% of rated load, not to exceed rated load.)
  • [APPLICATIONS] - Mechanical slides, 2-axis and 3-axis tables, linear tables, 3D printers, ect.

Description

Descriptionis:
Linear bearings are widely used in electronic equipment, tensile testing machines and digital three-dimensional coordinate measuring equipment and other precision equipment, as well as multi-axis machine tools, punch presses, tool grinding machines, automatic gas cutter, printers and other industrial machinery sliding.
Linear bearings are linear motion systems for use with cylindrical shafts with infinite stroke. Since the carrier ball is in point contact with the shaft, low loads are applied. The steel balls rotate with very little frictional resistance, which results in a smooth motion with high accuracy.

Specifications:
Model: LM25LUU
Cage Material: Nylon
Inner Diameter: 25mm
Outer Diameter: 40mm
Total Length: 112mm
Ball Circuit: 6
Static Load Capacity (Cor): 1560N
Dynamic Load Capacity (Cr): 3140N
