Beduan الفولاذ المقاوم للصدأ 1/4 "NPT أنثى الحاجز مقرنة من خلال تركيب الأنابيب السائبة (خيط أنثى كامل)

KWD 5.500
ماركة
beduan
وزن
68 g
أسلوبعبوة من 1
– 1 +

مميزات خاصة

  • Material:High quality 304 stainless steel, corrosion resistant ductility at high temperatures, and low magnetic permeability.
  • Connecting Size: Inner Thread: 1/4" NPT Female. Outer Diameter: 20.96mm / 1/2" BSP.
  • Dimension: Overall length: 1 inch(25mm). Thread length: 3/4 inch(19mm). Thread outside dimension: 0.825 inch(20.96mm).
  • Application:Female coupler for connecting NPT fittings through a bulkhead.
  • Max working temperature rating is -196℃~800℃/-320.8℉~1472℉, Maximum working pressure 1500 PSI

وصف

Description:

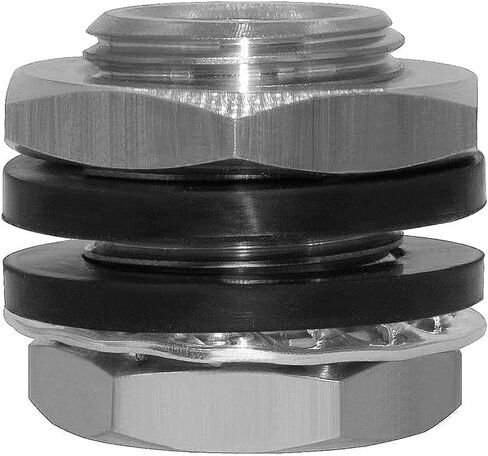

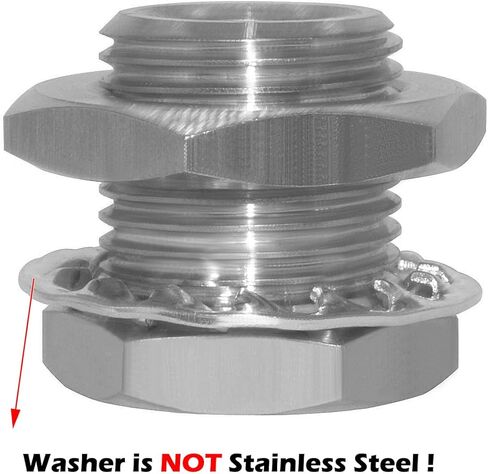

This bulkhead fitting is suitable for connecting stainless, brass, plastic, or iron hydraulic lines through a bulkhead.The bulkhead fitting has 1/4" National Pipe Taper Fuel (NPTF) female ends. A washer and nut create an air-tight seal with the bulkhead.

The fitting is made of SUS304 for corrosion resistance, ductility at high temperatures, and low magnetic permeability. It has a working pressure of up to 1500 pounds per square inch (psi).

Specification:
Inner Thread:1/4" NPT Female to 1/4" NPT Fmeale thread.
Outside Thread: 1/2" BSP Male thread.

Overall length: 1 inch(25mm).
Thread length: 3/4 inch(19mm).
Thread outside dimension: 0.825 inch(20.96mm) - Can through 21mm Hole.

Pack including:
1pcs Body
1pcs Hex Nut
2pcs Rubber Gasket
