Specification :
Condition: 100% Brand New
Material : Plastic+brass+iron

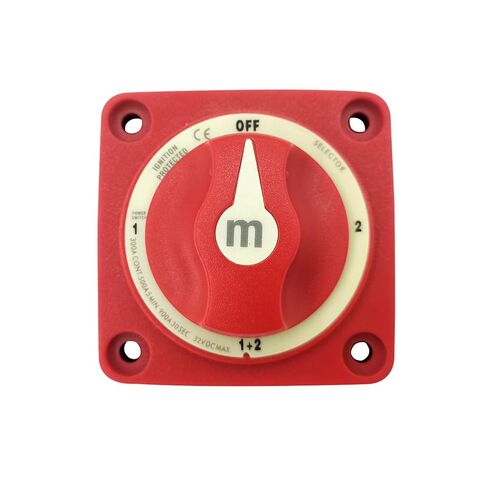

Switch Type : Selector 4 Position
Number of Positions : 4
Operation Mode : Off,1,2,1+2
Current Rating : 300 Amps
Intermittent Rating : 500A (5 min)
Product voltage: 12V-48V

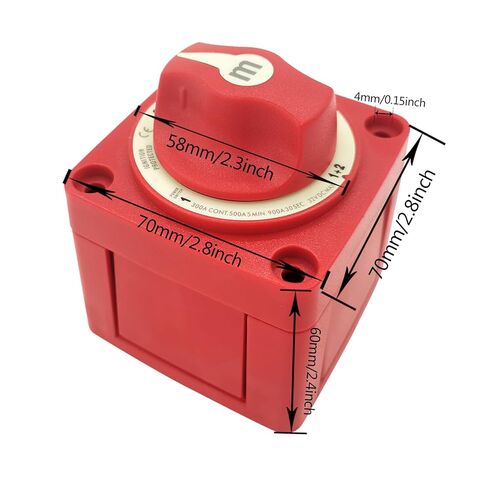

Item Dimensions L x W x H : 3 x 4 x 6 inches
Actuator Type : Rotary
International Protection Rating : IP66
Terminal Stud Torque :120 in-lb (13.56 Nm)
Terminal Stud Size:3/8"-16 x 7/8" (M10 x 22 mm)
Applicable scope: automobiles, RVs, yachts, trucks, trucks
Product function: Prevent leakage, protect the power supply, and safely disconnect the battery connection

Feature:
Accepts up to 4/0 AWG (120 mm²) battery cables
Tactile indicator conveys knob position by feel
Case design offers multiple mounting options
one-piece terminal stud design never loosens over time
300 Amps continuous rating for outboards and small gasoline or diesel engines.
Tin-plated Copper studs for maximum conductivity and corrosion resistance
The battery disconnect switch has a crank rating of 900A for 30 seconds, 500A for 5 minutes, and a continuous rated current of 300A. Maximum Operating Voltage: 48V.
This Battery switch featuring an Off,1,2,1+2 function, serves as a way to stop power flow, preventing any energy loss from the battery pack.
It allows for a safe disconnection of the batteries when the engines are not operating.
EASY TO OPERATE: Battery disconnect switch with Off,1,2,1+2 position. When switched ON, power flows through the circuit; when switched OFF, the circuit is disconnected.

Scope of Application:
Our battery switch is used for 12 - 48VDC systems to isolate and secure the electrical system, and can stand alone or be locked together with other switches.
It is universally used for RV, Marine, Car, Boat, Camper, Travel Trailer, Truck, ATV, UTV battery, and other engine

Package list:
1 x Battery Switch
