Product Feature:
In-line air flow control valve for controlling the speed of low-speed pneumatic cylinders

Range of application:
1.Working Medium:Compressed Air(Not other gas or liquid)
2.Working Pressure:0~150 PSI / 0~9.9kgf/cm2(0~990 kPa)
3.Negative Pressure:-29.5 in Hg/ -750mm Hg(-750 Torr)
4.Working Temperature:32~160 °F / 0~70°C
5.Application of Trachea:PU/PE/PA/PVC/Nylon/PTFE

CAUTION:
1.Confirm the air flow control direction before connecting the tube,if the flow control direction operates backwards,air will not flow
2.Assemble the fitting according to the proper connection torque value.
3.Proper torque refers to connection by hand and 2~3 rotations using a tool. Excessive pressure may damage the screw.
4.To insert the tube into the fitting, cut the tube at a right angle, insert it fully to the end, and pull the tube gently to make sure it isn't released.
5.Avoid piping under tension, and also avoid high curvature piping at the tube insertion section of the fitting.
6.If there are unclear parameters or technical problems, you can consult before placing an order, so that you can use it correctly.

WARNING:
1.Do not using to excessive vibration,impact,rotation and beding place,may damage the fittings
2.Do not use them on fluids other than air and water,leakage or damage the fittings may occur

Package Contents：

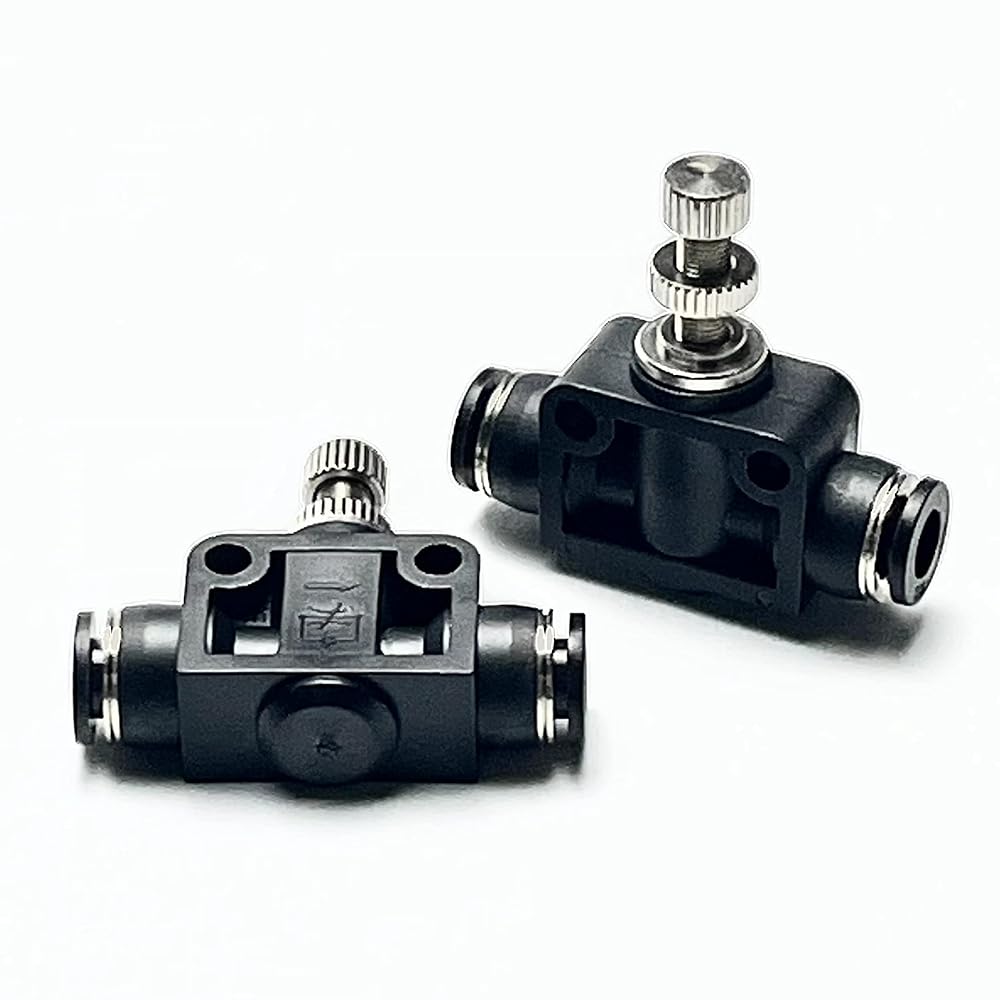

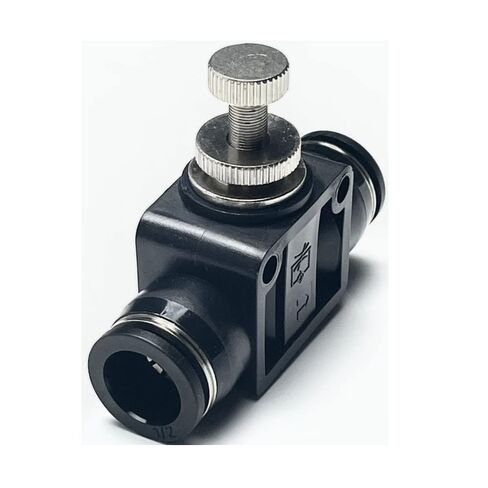

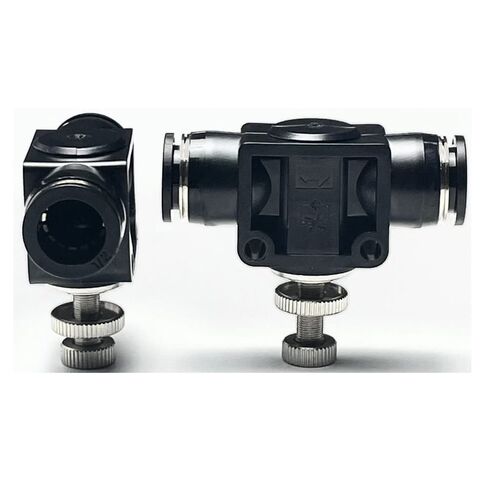

Black Speed Control Flow Valve SCF-1/2(2PCS)
