مميزات خاصة

HIGH-QUALITY MATERIALS: We guarantee that all thermal relays are made of high quality materials and have a long service life.
RATED RANGE: This thermal relay can be used in the circuit of 50-60hz, the rated insulation voltage is 690V.
GOOD PROTECTION: The relay is used for protecting the phase break when the electric motor is overload.
HIGH EFFICIENCY: The relay has different mechanism and temperature compensation, with high efficiency and excellent performance.

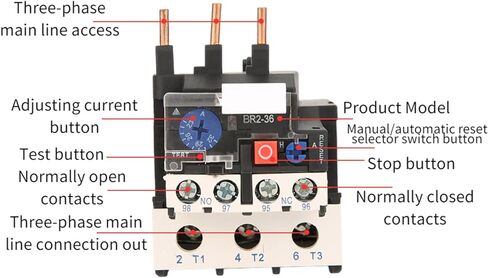

SPECIFIC FUNCTION: The overload protection relay has phase break protection, manual and automatic reset, temperature compensation, trip indication, test button, stop button.

وصف

Specification:
Power frequency: 50-60hz
Rated current: 23-32A
Rated insulation voltage: 690v
Phase break protection: yes
Manual and automatic reset: yes
Temperature compensation: available
Tripping instructions: yes
Test button: yes
Stop button: yes
Installation: plug-in
Auxiliary contacts: 1NO+1NC
AC 15 220V rated current A 2.73
AC 15 380V rated current A 1.58
DC-13 220V rated current A 0.2
Traverse sectional area: main loop4-10, auxiliary loop 0.5-2.5
Tripping level:10A
Fuse specification:40aM 80gG
Package Weight: Approx.238g/8.4oz

Package list:
1 * Thermal Overload Relay
