تيار متردد/تيار مستمر 12 فولت، 2 مرحل

KWD 12.500
ماركة
Electronics-Salon
وزن
164 g
– 1 +

مميزات خاصة

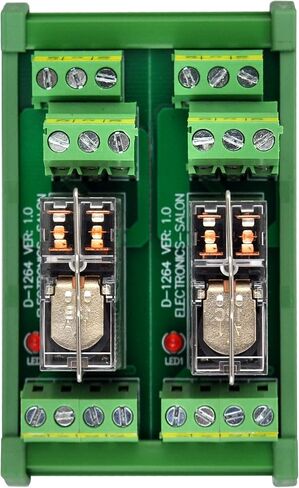

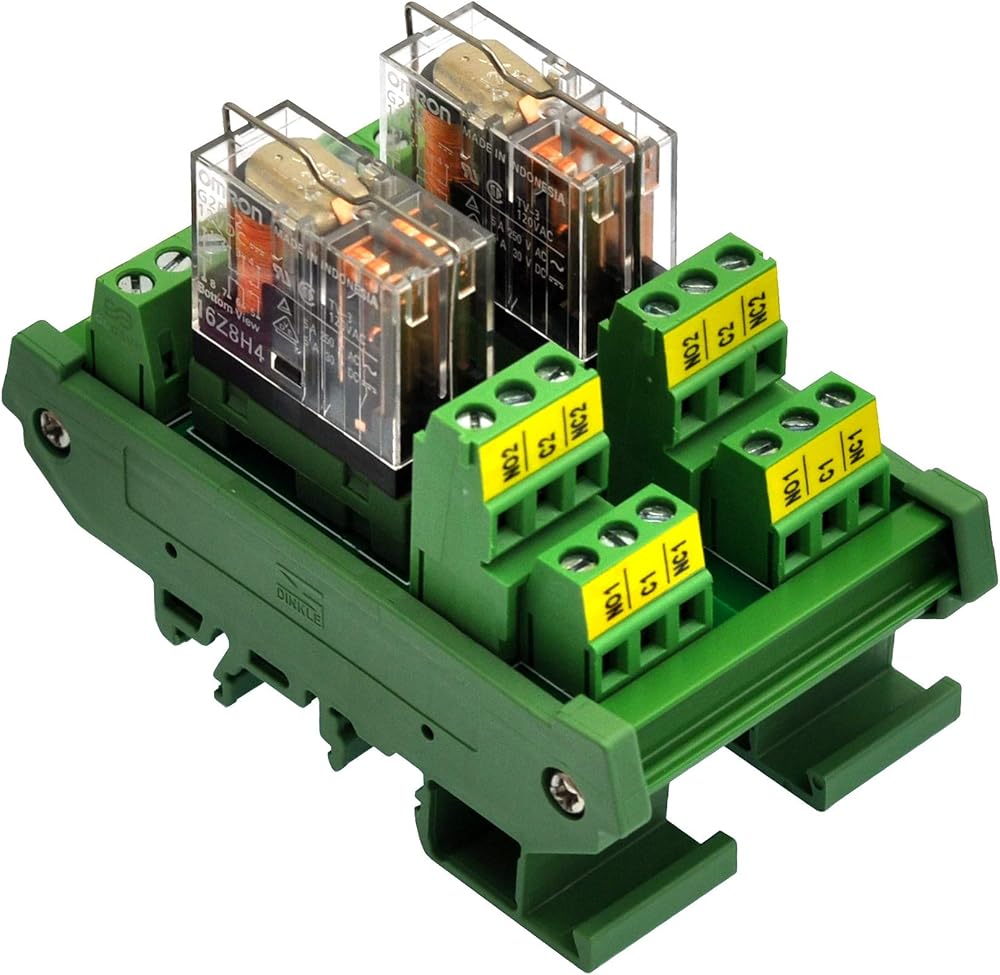

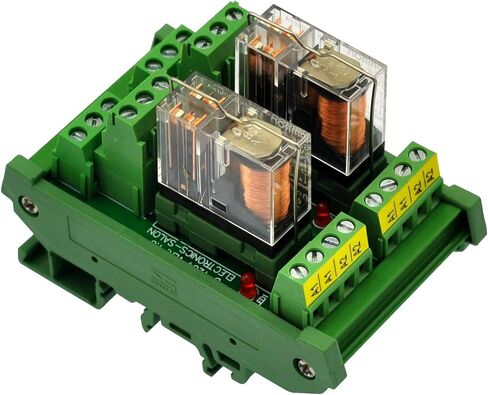

  • G2R-2 Dual 5Amp DPDT power relay. Pluggable socket for support replacement relay.
  • Support AC / DC control signals. Dual input terminal block, you can flexibility to configure the input mode: Individual / Common Positive / Common Negative. Relay action LED indicator, relay coil protection by means of a freewheeling diode.
  • High quality screw terminal blocks and clear marking label for terminal block position. Pitch 5.08mm/0.2" screw terminal block. Wire range 26 to 12AWG / 2.5mm square. Screws - M2.5, steel, Cr3+ Zn plated. Pin header and Cage - Brass.

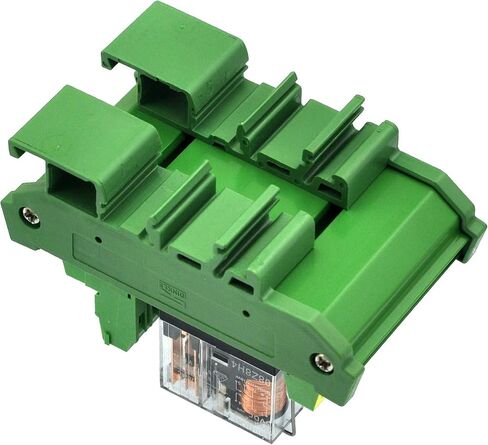

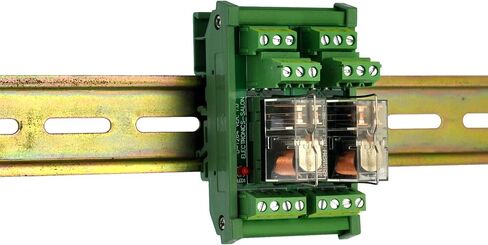

  • High quality fireproof nylon material DIN rail mount housing, can support width 35mm, 32mm and 15mm rail. FR-4 fiber glass PCB, dual copper layers.

وصف

Relay: G2R-2 5V
Relay Number: 2
Control Signal: Voltage AC 4V~7V, or DC 4V~9V. Current 106mA(per relay, at 5V)
Relay Switch Contact Rating: For AC, dual 5A/250VAC. For DC, dual 5A/30VDC.

G2R-2 Dual 5Amp DPDT power relay. Pluggable socket for support replacement relay.
Support AC / DC control signals. Dual input terminal block, you can flexibility to configure the input mode: Individual / Common Positive / Common Negative. Relay action LED indicator, relay coil protection by means of a freewheeling diode.
High quality screw terminal blocks and clear marking label for terminal block position. Pitch 5.08mm/0.2" screw terminal block. Wire range 26 to 12AWG / 2.5mm square. Screws - M2.5, steel, Cr3+ Zn plated. Pin header and Cage - Brass.
High quality fireproof nylon material DIN rail mount housing, can support width 35mm, 32mm and 15mm rail. FR-4 fiber glass PCB, dual copper layers.
