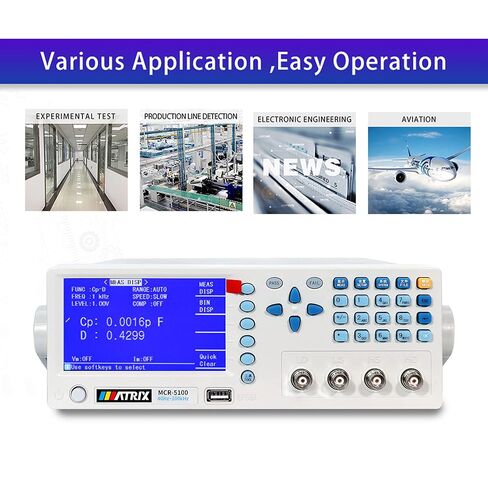

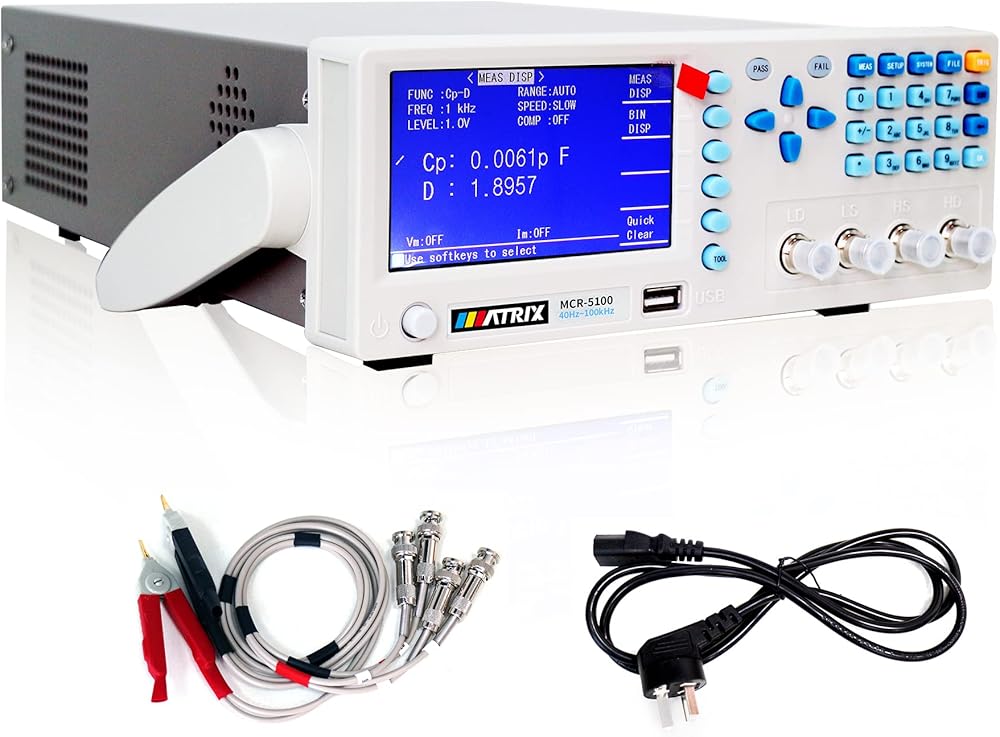

MATRIX LCR Meter, Capacitance Meter 40Hz-100kHz, Inductance Meter Accuracy 0.1%, Digital Multimeter with 32-Bit Core Processor, Electronic Component Tester 30Ω/100Ω Two Output Resistance, MCR-5100

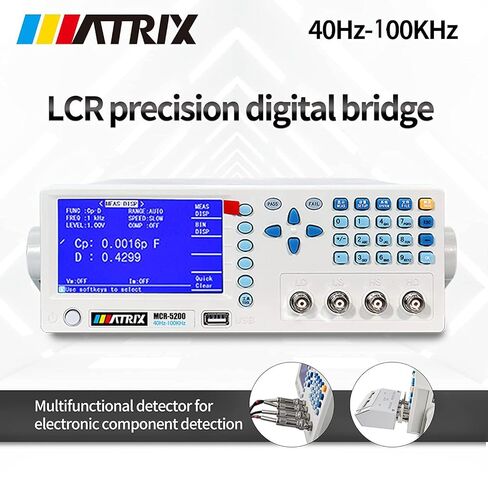

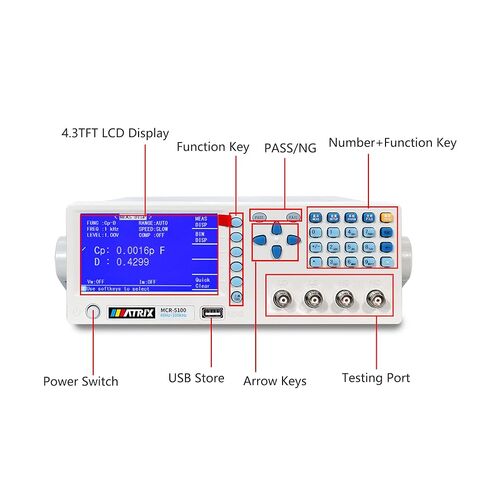

【PRECISION BENCH LCR METER】MATRIX high precision LCR meter MCR-5200 is a compact bench-type professional LCR meter with a 4.3-inch TFT LCD display. The LCR meter test frequency ranges from 40Hz to 200kHz, basic test accuracy is 0.1%, and a 5-digit test resolution impedance meter instrument meets the testing needs of various components and parameters.
【EASY TO USE】The capacitance meter tester with the new 32-bit core processor, test parameters L, C, R, lZl, D, Q, X, ESR, θ(Deg), θ(Rad). 30Ω,100Ω two different signal source output impedance. Benchtop inductance meter built-in comparator, 5-grade flexible qualified, and defective alarming mode shutdown automatically saves test conditions, and humanized operation.
【PRODUCT FEATURE】MATRIX digital electronic component tester instrument internal more than 100 sets of settings files, U disk extension to save multiple groups of the test or recall simplified Chinese, English is optional. And the LCR meter supports the format FAT16, and FAT32 file systems.
【41 TEST FREQUENCY POINTS】40Hz, 50Hz, 60Hz, 75Hz, 100Hz, 120Hz, 150Hz, 200Hz, 250Hz, 300Hz, 400Hz, 500Hz, 600Hz, 750Hz, 800Hz, 1kHz, 1.5kHz, 2kHz, 2.5kHz, 3kHz, 4kHz, 5kHz, 6kHz, 7.5kHz, 10kHz, 12kHz, 15kHz, 15.7kHz, 16.2kHz, 20kHz, 25kHz, 30kHz, 40kHz, 50kHz, 60kHz, 66.6kHz, 75kHz, 100KhZ, 120kHz, 150kHz, 200kHZ in total of 41 frequency points.

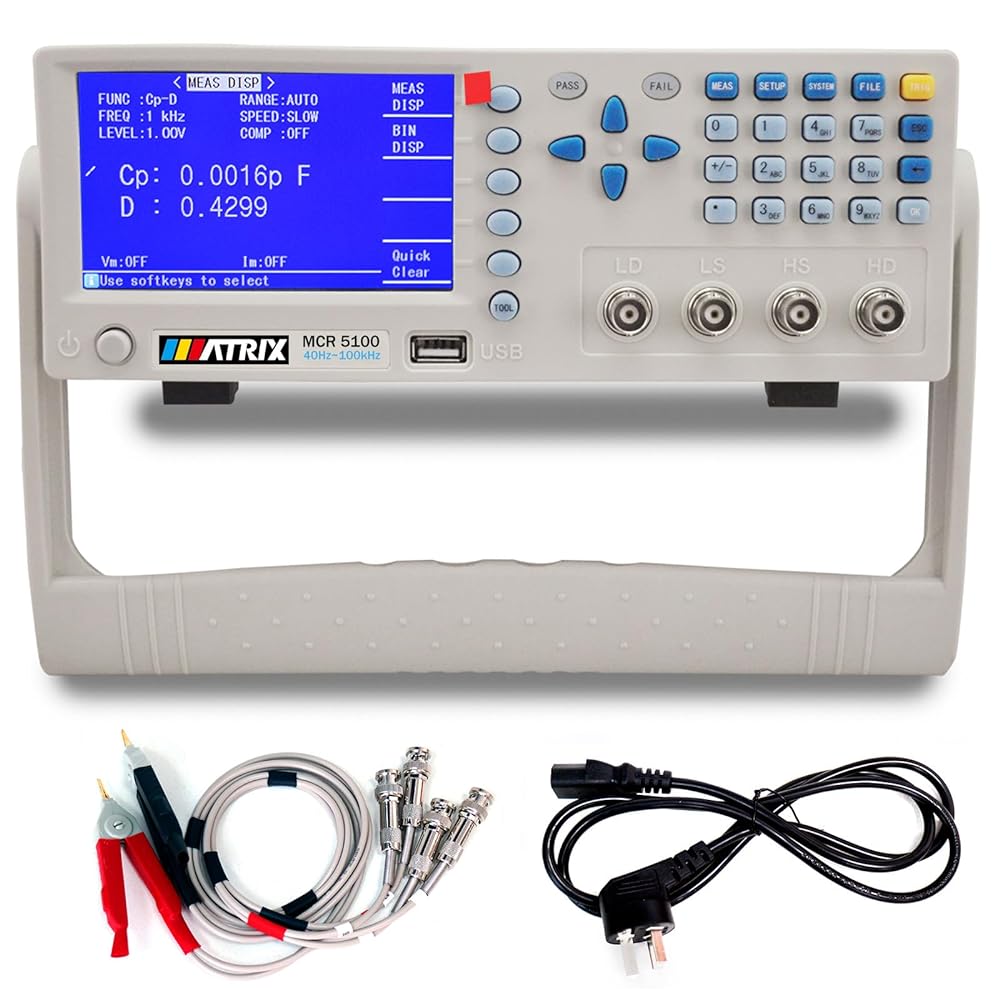

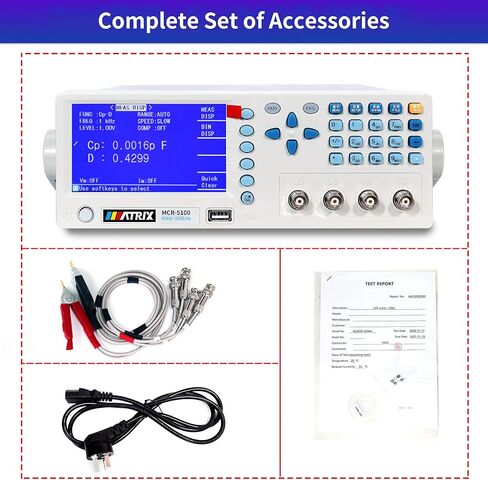

【THREE-YEAR WARRANTY AND QUALITY CHECK】Buy precision LCR bridge meter, you will get 1* Benchtop LCR Meter, 1* Power Cord, 1* Four-terminal Test Cord, 1* CD, 1* Test Report, 1* User Manual, 1 * Fuse table. The LCR meter digital can be used for test passive components, such as incoming inspection, and the production and sorting of passive components. We offer a 3-year warranty and please reach out to us in case of any issues.
