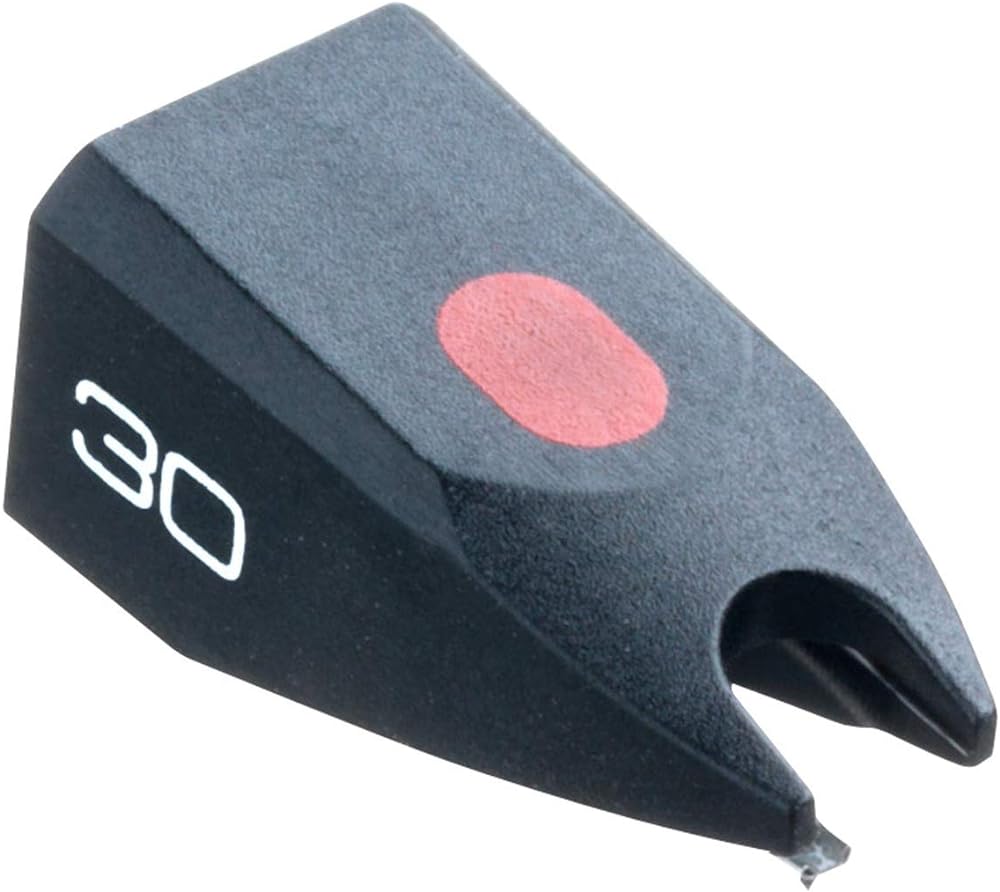

Ortofon Stylus 30

Technical specifications:
Frequency range: 20-29,000 Hz.
Frequency response - 20-20,000 Hz + 2 / - 3 dB.
Tracking ability at 315Hz at recommended tracking force *) - 90 µm.
Compliance, dynamic, lateral - 25 µm/mN
Stylus type - Nude Fine Line
Stylus tip radius - r/R 8/40 µm.
Equivalent stylus tip mass - 0.3 mg.
Tracking force range - 1.25-1.75 g (12.5-17.5 mN).
Tracking force, recommended - 1.5 g (15 mN).
Tracking angle: 20°.
Stylus colour: black.

Recommended for following cartridges: Super OM 30, OM 30, OMP 30, OMB 30, LM 30, Concorde 30, SME 30H, LM 30H, TM 30H.

*) Typical value
