Advanced Breakout Fightting game controll Board USB Passthrough Edition Integrated Pico Fighting Board For PC PS4 (Board only)

Advanced Breakout Board USB Passthrough Edition Pi Pico Integrated Pico Fighting Board for Arcade DIY Fighing Stick Work For PC PS4

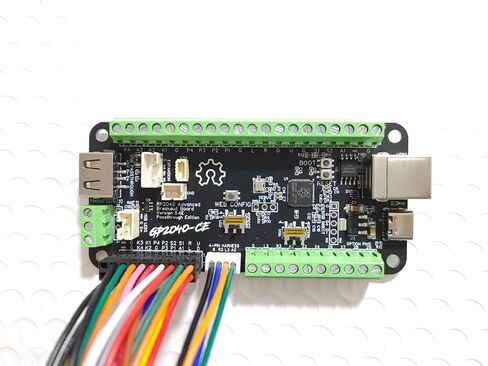

The Integrated Pico Fighting Board uses the same form factor and layout of the PCBs to maintain compatibility with existing arcade stick cases, wiring harnesses, wire management accessories, etc.
The Controller board (Community Edition) is a gamepad firmware for the Pi Pico and other boards based on the RP2040 microcontrollers that combines multiplatform compatibility, low latency and a rich feature set to provide endless customization possibilities without sacrificing performance.
This fightting game board compatible with PC, PS3 and PS4, Nintendo Switch, Steam Deck, MiSTer and Android.

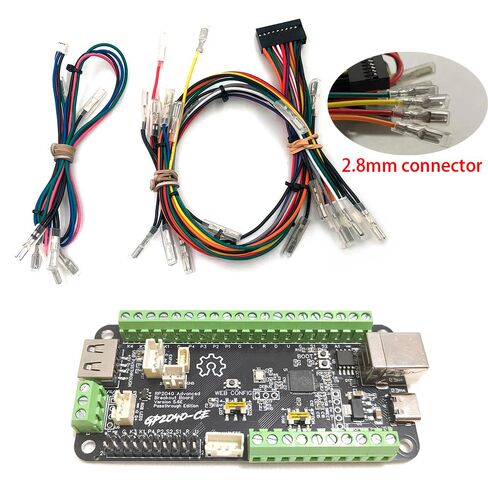

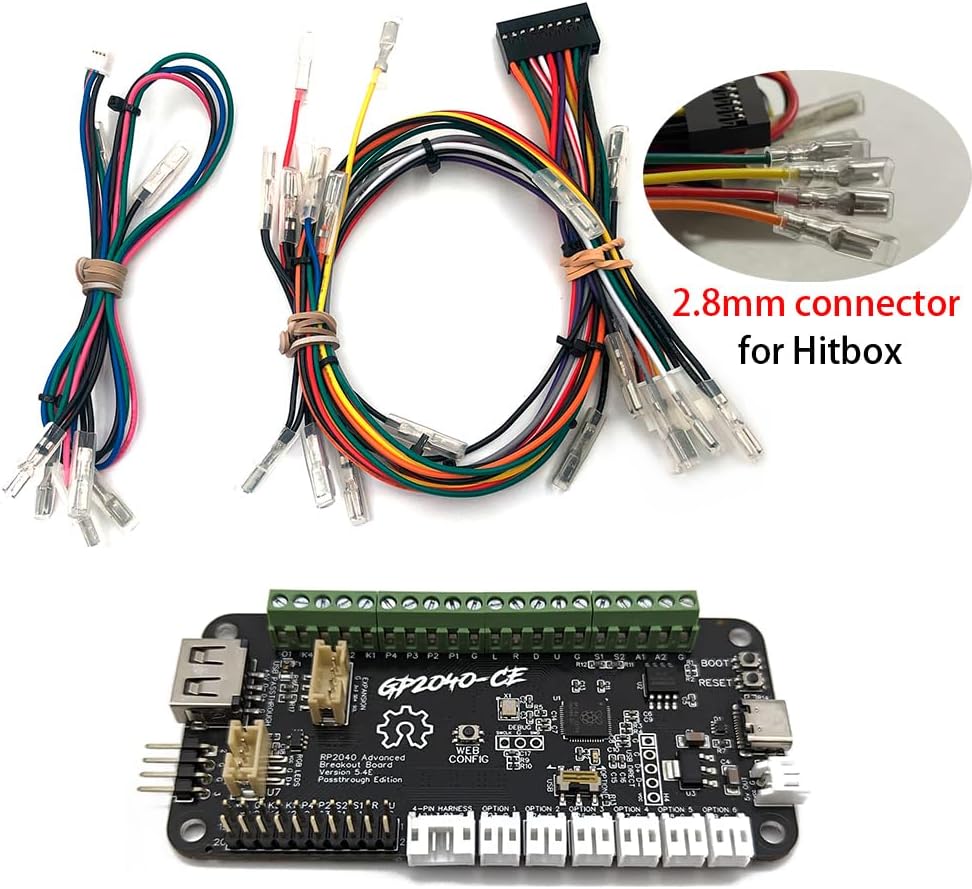

Quick Connect 20-Pin Harness: Standard wiring via 20-pin header ,4-pin header for TP/LS/RS buttons.

Features:

-Select from 5 input modes: XInput, Nintendo Switch, PS4, PS3 and Keyboard

Overclocked polling rate for less than 1 ms of input latency in all modes.

Multiple SOCD cleaning modes - Up Priority (a.k.a. Stickless), Neutral, and Second Input Priority.

Left and Right stick emulation via D-pad inputs as well as dedicated toggle switches.

Dual direction via D-pad + LS/RS.

Reversed input via a button.

Turbo and Turbo LED with selectable speed

Per-button RGB LED support.

PWM Player indicator LED support (XInput only).

Multiple LED profiles support.

Support for 128x64 monochrome I2C displays - SSD1306, SH1106, and SH1107 compatible.

Custom startup splash screen and easy image upload via web configuration.

Support for passive buzzer speaker (3v or 5v).

Built-in, embedded web configuration - No download required!

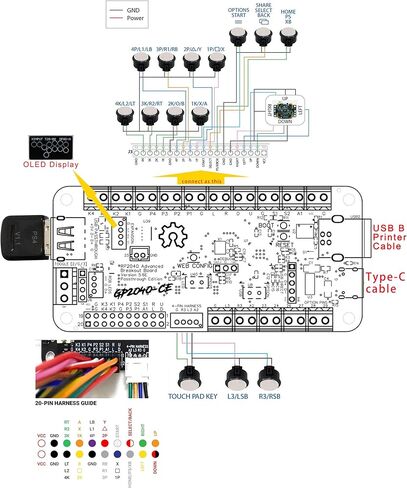

Standard wiring via screw terminals or 20-pin header

4-pin header for TP/LS/RS buttons
