12V 24V 32V DC Panel Mount Circuit Breaker 50A with Manual Reset Button Switchable for Auto Truck RV Marine Trailer Waterproof 50A in Kuwait 12V 24V 32V DC Panel Mount Circuit Breaker 50A with Manual Reset Button Switchable for Auto Truck RV Marine Trailer Waterproof 50A in Kuwait 12V 24V 32V DC Panel Mount Circuit Breaker 50A with Manual Reset Button Switchable for Auto Truck RV Marine Trailer Waterproof 50A in Kuwait 12V 24V 32V DC Panel Mount Circuit Breaker 50A with Manual Reset Button Switchable for Auto Truck RV Marine Trailer Waterproof 50A in Kuwait 12V 24V 32V DC Panel Mount Circuit Breaker 50A with Manual Reset Button Switchable for Auto Truck RV Marine Trailer Waterproof 50A in Kuwait 12V 24V 32V DC Panel Mount Circuit Breaker 50A with Manual Reset Button Switchable for Auto Truck RV Marine Trailer Waterproof 50A in Kuwait 12V 24V 32V DC Panel Mount Circuit Breaker 50A with Manual Reset Button Switchable for Auto Truck RV Marine Trailer Waterproof 50A in Kuwait

40A

KWD 6.500
Brand
JIAKUPA
Weight
30 g
Style40A
– 1 +

Special Features

  • 30A Panel mount design Manual Reset Circuit Breaker, Easy Installation
  • Sepcification: SAE J553; SAE J1171 (Ignition Protected); ABYC E-11; UL1500. Combines switching and circuit protection into a single device
  • Max Voltage: 32V DC, use in 12vdc,14vdc, 24vdc system,Interrupt Capacity: 2500A per ABYC E-11

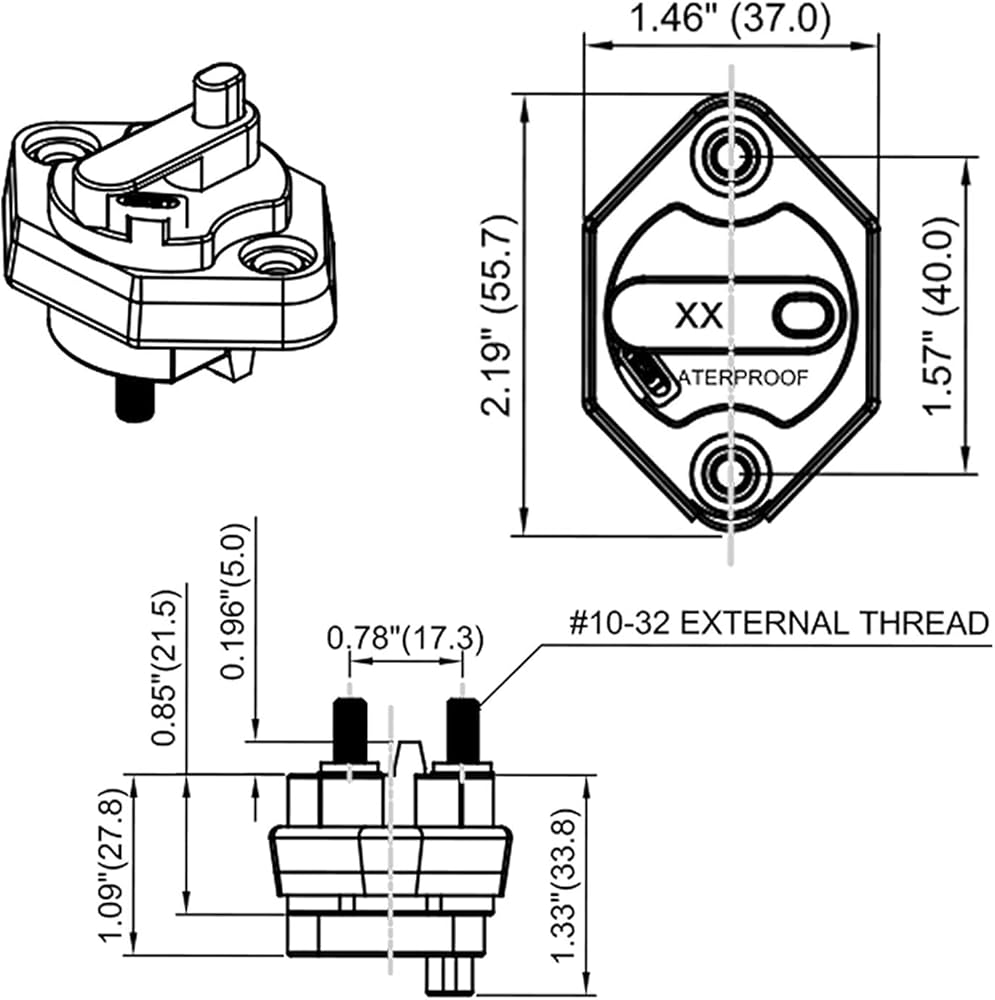

  • Terminal Size: #10-32 threaded studs, Dimension: 2.19"x1.46"x1.33" (inch)

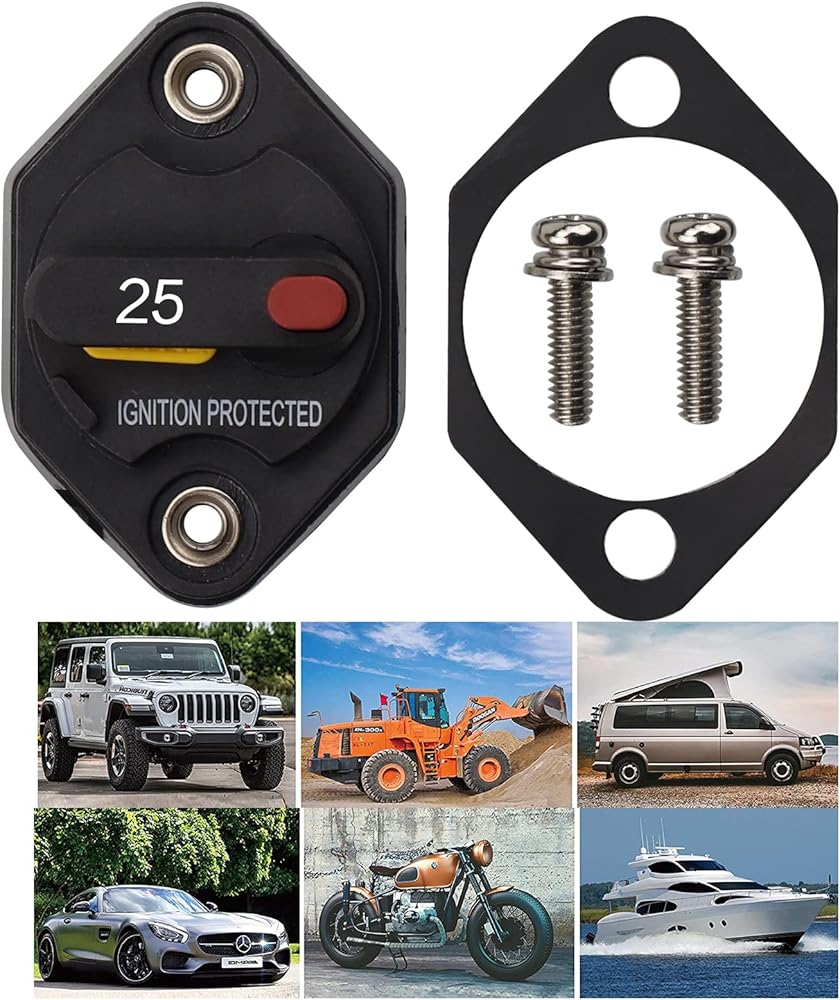

  • Typically used in auxiliary and accessory circuits in truck, bus', RVs and marine applications. Others include battery charger and DC audio system.

Description

Specifications:
Mounting: Panel Mount
Rated Current: 30A
Voltage: 32V DC,use in 12vdc,14vdc, 24vdc system
Waterproof Rate: IP67
Termination: #10-32 threaded studs
SAE Standard: SAEJ553 SAEJ1171
Interrupt Capacity: 2500A @ 14Vdc
Operating Temperature: -32°C to 82 °C(-25°F to 180 °F)

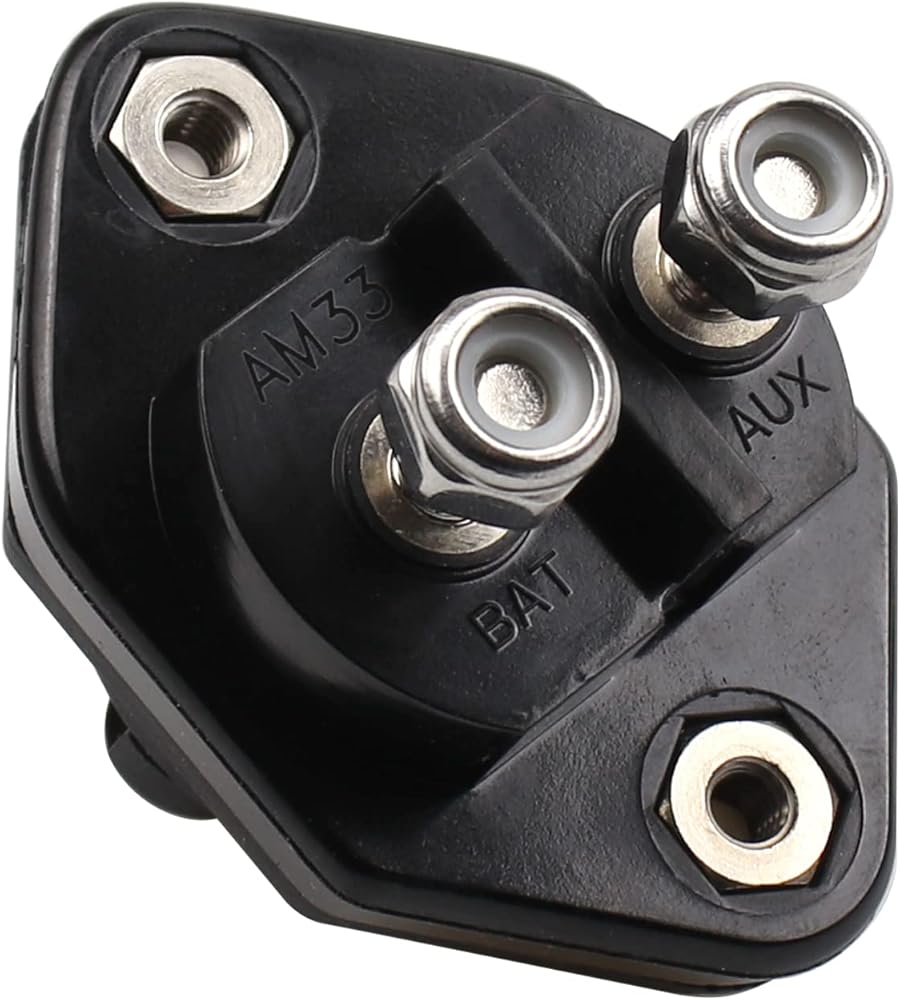

Wire Connection: BAT LINE SHI for input wire, AUX LOAD for output wire

Package included:
1 x 30A 12V-32V Amps Circuit Breaker with Manual Reset
