HUAREW MRBF Junction Box Fuse Box 60A
Specifications:
Body Material: PPS UL.94-V0, Thermoplastic, Black
Protection class: IP66
Nut material: Nut - steel (galvanized), self-locking
Stud Material: Stainless Steel
Lid Material: Plastic; Color: Red
Insulation Material: Ceramic
Fuse Material: Copper Alloy (Nickel Plated) Thickness: 2.5mm, Color: Silver
Fuse Housing: PES Plastic, Color: Clear
Stud Size: M8 (5/16")

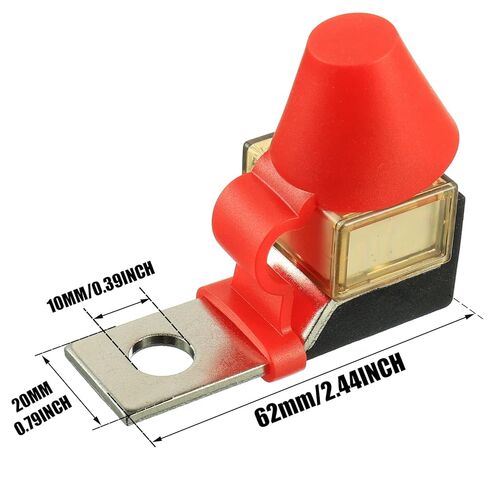

Fuse Box Mounting Hole Size: 3/8" (M10)

Save space:
Ignition protection safety device, safe to use, small size,
Fuses can greatly save installation space.

Excellent material:
The main material of the seat is thermoplastic PPS, which is resistant to temperature and corrosion.
Studs and nuts are made of stainless steel for good electrical conductivity.
Strong oxidation resistance, high temperature resistant fuse ceramic material,
Nickel-plated copper fuses have oxidation resistance, good electrical and thermal conductivity,
High mechanical strength and long service life.

Ignition Protection:

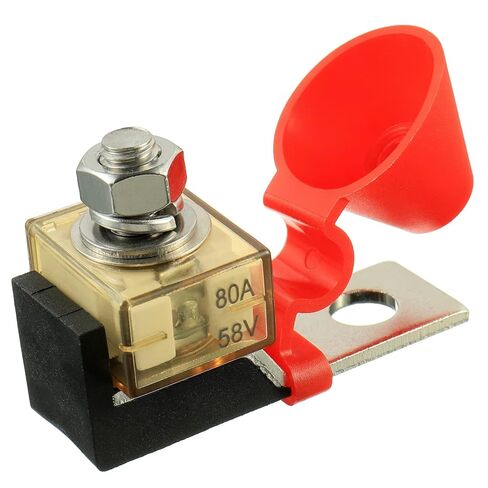

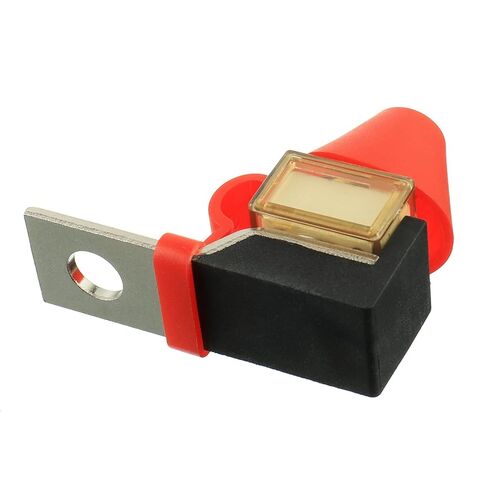

MRBF Terminal Fuse Holders for Fuses
Provides high current protection and ignition protection in a limited space.

Sophisticated Design:
Isolation studs are designed using standard,
M8 hardware and allow terminal stacking,
Accepts 5/16" ring terminals and mounts on 3/8" terminals.

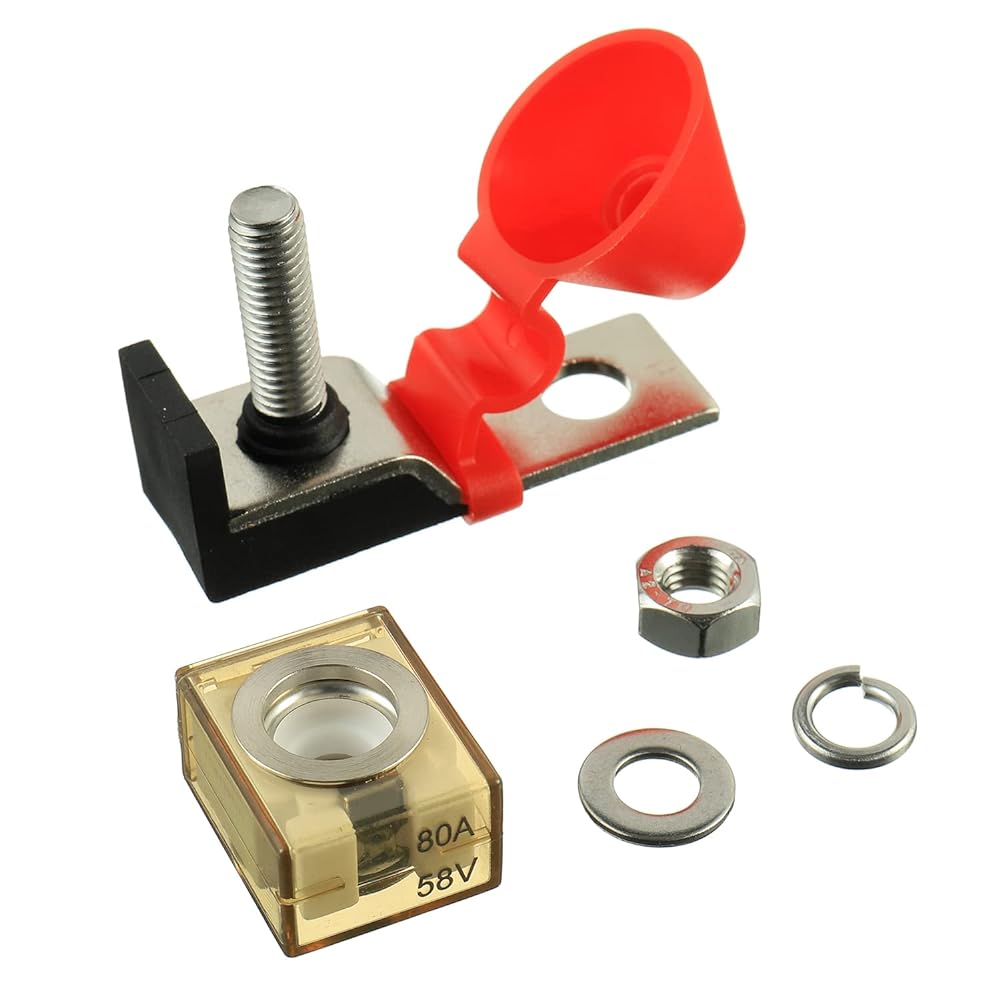

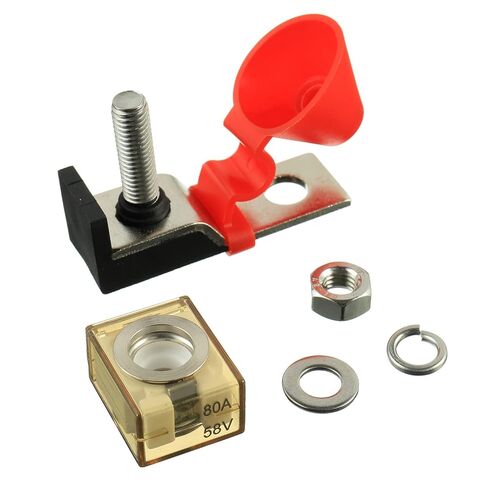

Includes:
1 terminal fuse box, 1 red insulating cap,
1 washer, 1 lock washer and 1 hex nut
