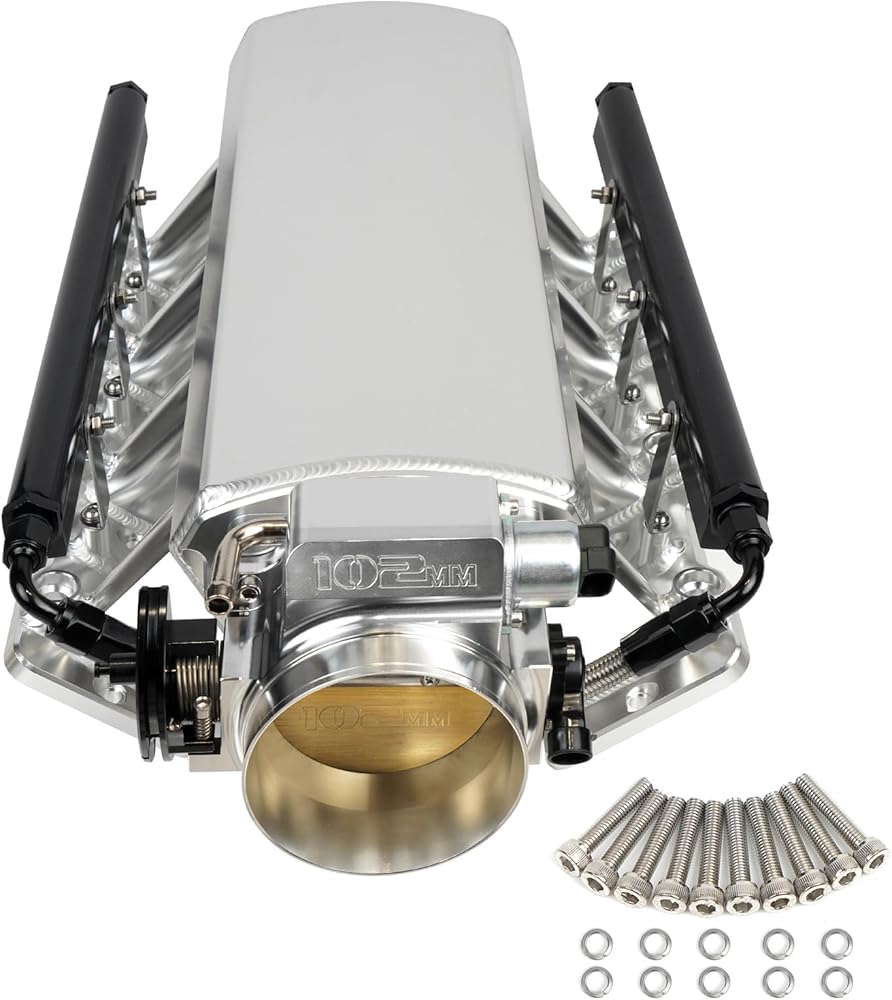

For LS Intake Manifold with Throttle Body Compatible with LS1 LS2 LS6 of cathedral port heads Compatible with Chevy Cadillac Pontiac Aluminum (102mm)

KWD 136
Weight
9.1 kg
Size102mm
– 1 +

Special Features

  • [Applicable Engine] Compatible with LS based engines with cathedral port heads shape; Compatible with 4.8L 5.3L LS1 LS2 LS6 original engine.
  • [Some Models] Compatible with Chevy Corvette 97-07 | Corvette Z06 01-04 | SSR 05-06 | TrailBlazer SS 06-09 | Cadillac CTS V-series 04-07 | Pontiac Firebird Formula Trans AM 98-02 | Pontiac GTO 05-06 | Saab 9-7X Aero 08-09.

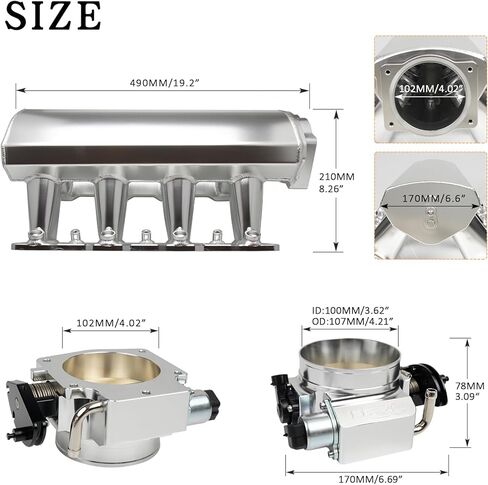

  • [Size] 102mm/4.02" inlet with 210mm height (taller); 1/8" thick T6061 aluminum; vacuum ports (1/4NPT & 1/8NPT) with plug; rear M12 x 1.25 MAP port for 10 MAP.

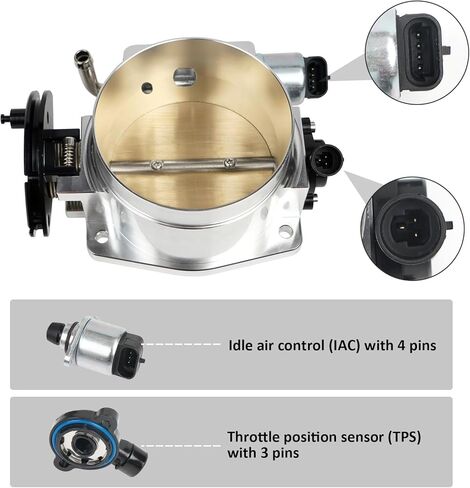

  • [Throttle Body] Drive by cable, Idle air control (IAC) and throttle position sensor (TPS) installed. Flow Rate: 1218 CFM, Working pressure: 85 PSI, Burst pressure: 245 PSI.
  • [Note] Fit for original factory fuel injectors, but different spacers may be required.
