Fitment:

265 283 305 307 327 350 383 400 396 402 427 454 472 502

260 289 302 351W 347 352 360 390 406 427 428 429 460

351C 351M 400M 273 318 340 360 361 383 400 413 426W 440 455 330 326 ENGINES

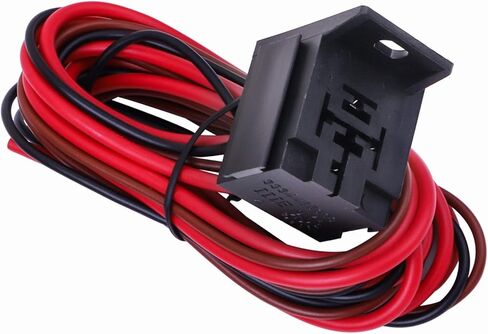

Note:For the two red wires,please connect the long red wire to the fan and the short red wire to the battery.

High Quality Replacement Part.

Exact Compatible With easy installation.

100% Brand New and tested prior to leaving the factory.

Installation tips:

1.Turning off the engine, replace the new cooling fan temperature switches after the water in engine radiator cooled to the room temperature.

2.Avoid the external high heat source after installation.

3.Avoid sprinkling water on surrounding auto parts during the installation.

SINGLE SWITCH MODELS

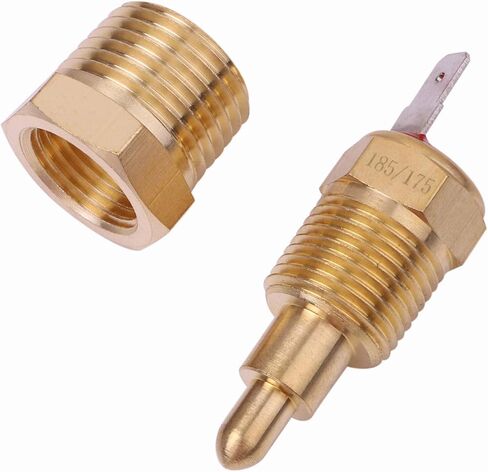

1.Locate the cooling fan switch near the thermostat housing on the left side of engine behind the distributor assembly. The switch wire colors should be green and black.

2.Disconnect the wire terminal from the cooling fan switch.

3.Allow the engine to reach a coolant temperature of 196-203°F (91-95°C).

4.Using a suitable ohmmeter or continuity tester, check for continuity between the two fan switch terminals. The fan switch should have continuity (switch closed) at the above temperatures. The switch should have no continuity (switch open) when the temperature drops between 5-15°F (3-8°C) from the temperature that the switch first had continuity (switch closed).

5.If the switch does not operate within the range of the supplied information, allow the engine to cool below 100°F (37°C) and replace the switch.
