KingVal بديل 3660 4300KV عمود محرك بدون فرشاة 5 مم مع وحدة سترة تبريد المياه متوافقة مع قارب RC

KWD 19
مقاس4300 كيلو فولت
أسلوبفرش 3660
– 1 +

مميزات خاصة

  • 4 Poles 12 Slots Hi-torque Motor Design ; Removable/Replaceable Rotor
  • CNC Machined 6061 T6 Billet Aluminum Heatsink Can
  • High Purity Copper Windings Maximizes Efficiency ; High RPM ABEC5 Oversized Bearings
  • Precision balanced rotor, smoothness for best reliability and maximum RPM
  • Precision Engineered for Maximum Energy Conversion

وصف

Features:
*4 Poles 12 Slots Hi-torque Motor Design
*CNC Machined 6061 T6 Billet Aluminum Heatsink Can
*High Purity Copper Windings Maximizes Efficiency
*High RPM ABEC5 Oversized Bearings
*Precision balanced rotor, smoothness for best reliability and maximum RPM
*Stator - Super Thin (0.2mm) Laminations
*Removable/Replaceable Rotor
*Precision Engineered for Maximum Energy Conversion
Specifications:
Brand: KingVal

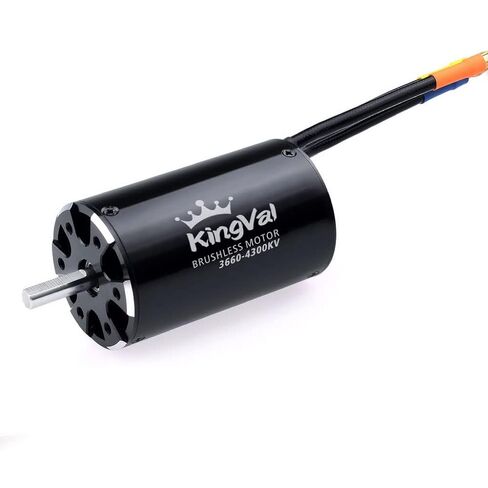

Product: 3660 Brushless Motor
Motor Size: ø36x60mm
KV(RPM/Volt): 4300
Max Amps: 85A
Max Voltage: 14V
Max Power: 1200W
Winding Type: WYE
Number of Turns: 1.5Y
No Load Current: 3.8A
Max RPM: 60000
Shaft Diameter: 5mm
Rotor Poles: 4
N.W: 214g

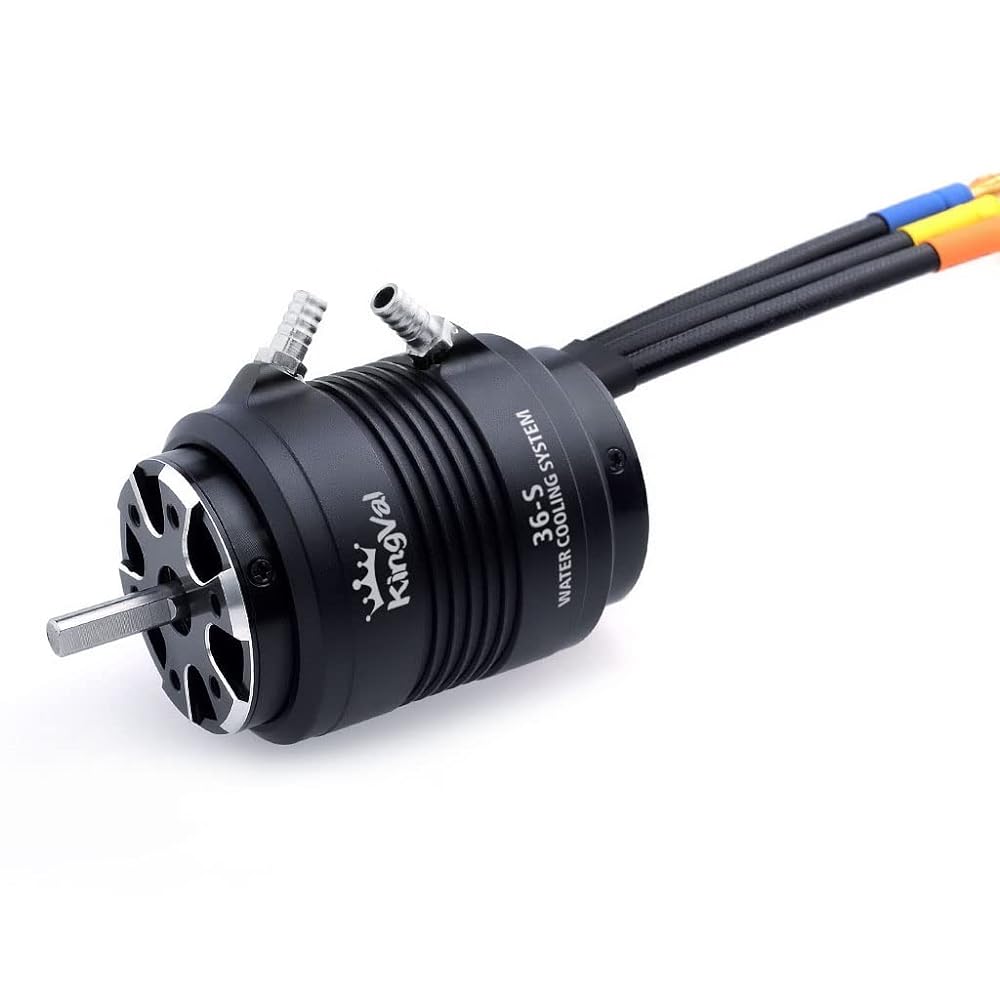

Water Cooling Jacket Unit:
Size: 47x44mm (L*D)
Inner Diameter: 36mm
N.W: 33g
Features with 2 Rubber Rings Inside
Package List:
1 x 3660 Brushless Motor
1 x Water Cooling Jacket Unit
