Gear Motor with Encoder, DC Gear Motor, DC 6V 2W GBMQ GM12BY20 Gear Motor with Magnetic Coded Disc Hall Encoder (6V 30RPM) in Kuwait Gear Motor with Encoder, DC Gear Motor, DC 6V 2W GBMQ GM12BY20 Gear Motor with Magnetic Coded Disc Hall Encoder (6V 30RPM) in Kuwait Gear Motor with Encoder, DC Gear Motor, DC 6V 2W GBMQ GM12BY20 Gear Motor with Magnetic Coded Disc Hall Encoder (6V 30RPM) in Kuwait Gear Motor with Encoder, DC Gear Motor, DC 6V 2W GBMQ GM12BY20 Gear Motor with Magnetic Coded Disc Hall Encoder (6V 30RPM) in Kuwait Gear Motor with Encoder, DC Gear Motor, DC 6V 2W GBMQ GM12BY20 Gear Motor with Magnetic Coded Disc Hall Encoder (6V 30RPM) in Kuwait Gear Motor with Encoder, DC Gear Motor, DC 6V 2W GBMQ GM12BY20 Gear Motor with Magnetic Coded Disc Hall Encoder (6V 30RPM) in Kuwait Gear Motor with Encoder, DC Gear Motor, DC 6V 2W GBMQ GM12BY20 Gear Motor with Magnetic Coded Disc Hall Encoder (6V 30RPM) in Kuwait Gear Motor with Encoder, DC Gear Motor, DC 6V 2W GBMQ GM12BY20 Gear Motor with Magnetic Coded Disc Hall Encoder (6V 30RPM) in Kuwait Gear Motor with Encoder, DC Gear Motor, DC 6V 2W GBMQ GM12BY20 Gear Motor with Magnetic Coded Disc Hall Encoder (6V 30RPM) in Kuwait

6V 50RPM

KWD 6
Brand
Naroote
Weight
14 g
Size6V 50RPM
– 1 +

Special Features

  • 【Specification】--- This product is a DC gear motor with magnetic coded disc hall encoder.

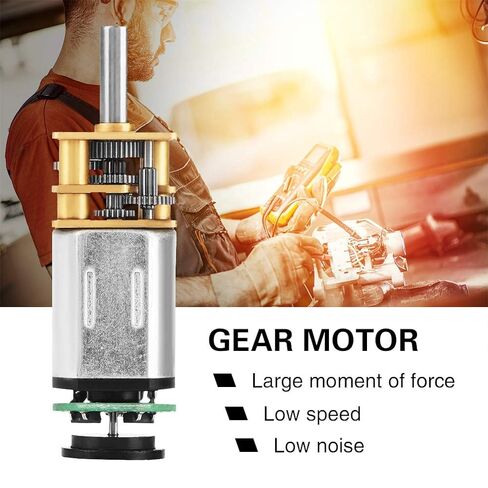

  • 【Features】--- This DC motor features large moment of force, low speed, and low noise.
  • 【Long Service Life】--- The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life.
  • 【Exquisite Workmanship】--- This motor is adopted of pure copper wire coil, with low heat and low loss.

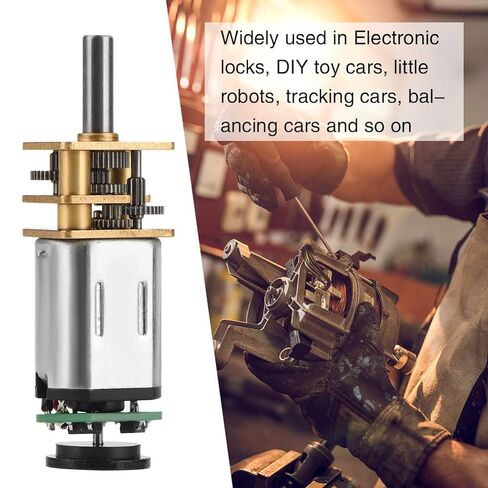

  • 【Wide Range of Applications】--- Widely used in Electronic locks, DIY toy cars, little robots, tracking cars, balancing cars and so on

Description

Specification:
Model:GBMQ-GM12BY20
Material: metal
Voltage: DC 6V
Power: 2W
Output signal: AB phase
Shaft length: 10mm/0.4in
Shaft diameter: 3mm/0.1in
Hall response frequency: 100KHz
Operating temperature range: -30 ℃ ~ 110 ℃
Output pulse number: 3ppr
Type (Optional): 6V 30RPM,6V 50RPM,6V 60RPM,6V 70RPM

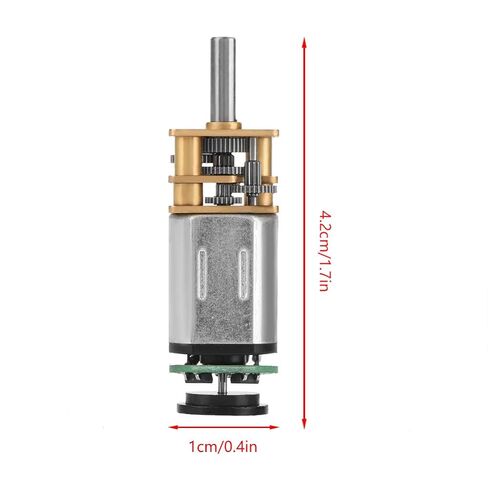

Length:4.2cm/1.7in
Weight: 14g/0.5oz

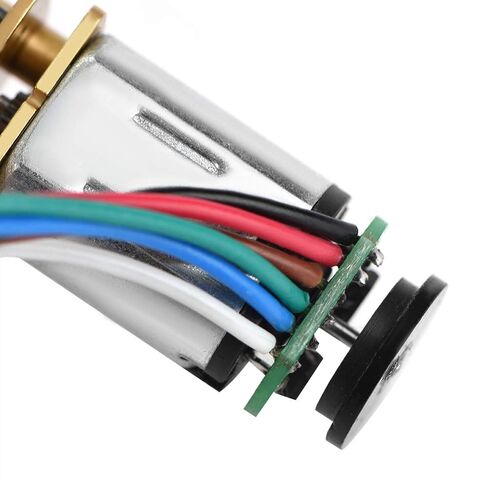

Wiring method:
black: motor power-
red: motor power+
brown: encode power +
green: encode power -
blue: encode output A phase
white: encode output B phase
(Note: Encoder input voltage: 3.3-12v)

Package list:
1 x gear motor
