🥇 ▪ Product Description:
1. Suitable for the motor of car model or airplane model/ship model (you need to provide your own motor fixing bracket when using) or ESC.

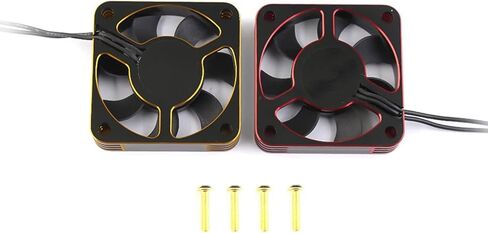

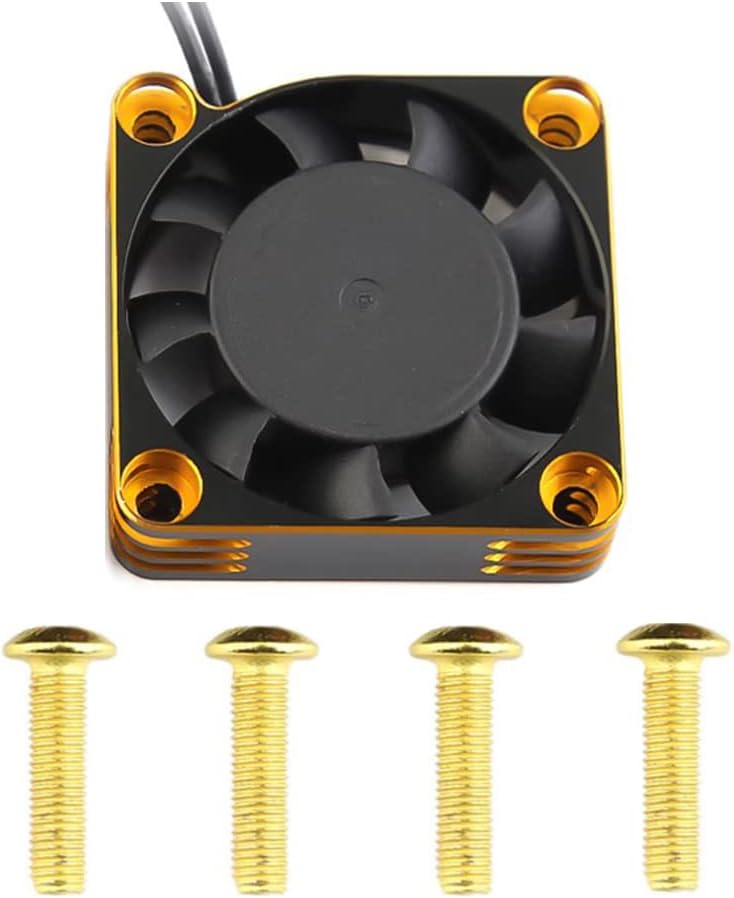

2. Small size, light weight, with 4 M3*14mm plating screws, easy to install.
3. Cooling fan can take power from receiving channel, very convenient to use. (Can also be used to take power from ESC) (Note: the line is divided into positive and negative, the red line is positive, the black line is negative. Incorrect wiring will affect the operation of the fan)
4. Note: Strong magnetic motor may interfere with the operation of the fan, you need to use a special motor fixing bracket.
5. Please allow slight deviation of color and measurement. Thank you for your understanding.
6.Material: Aluminum (outer circumference) / Plastic (rotating piece)
7.Voltage: 5-9V, Input current: 1.5A，Maximum speed: 9V/28000RPM/min

🥇 ▪ Size one: 25*25*10mm
Cable length: 190 mm/7.48 in.
Total weight: 14g/0.49oz
Mounting hole spacing: 20mm/0.78 inches.
Recommended Use: For ESC heat sink. Screw directly onto the ESC heat sink or M3 mounting holes to draw power from the ESC or receiver channel.

🥇 ▪ Size 2: 30*30*10mm
Cable length: 285mm/11.22 inches.
Total weight: 17g/0.59 oz.
Mounting hole spacing: 24mm/0.94 in.

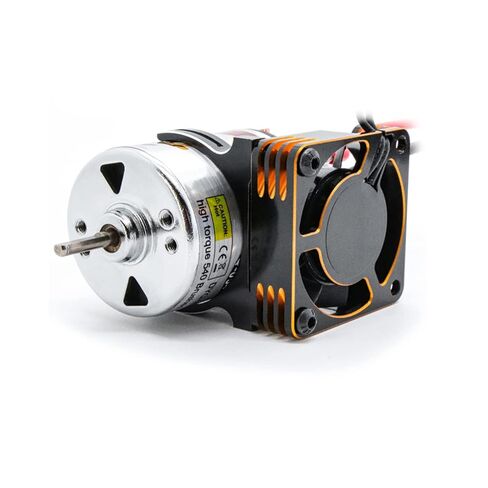

Recommended Use: For motor cooling. (For all motor mounts with 24mm mounting hole spacing / M3 screw holes).

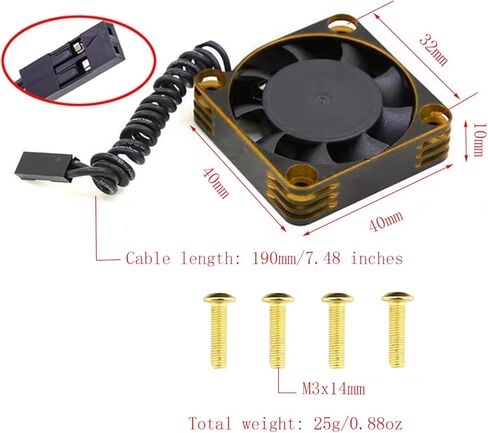

🥇 ▪ Size 3: 40*40*10mm
Cable length: 190mm/7.48 inches.
Total weight: 25g/0.88oz.
Mounting hole spacing: 32mm/1.25 inches.
Recommended Use: For motor heat dissipation. (For all motor mounts with 32mm mounting hole spacing / M3 screw holes).

🥇 ▪ Size IV: 50*50*10mm
Cable length: 180mm/7.08 inches.
Total weight: 34g/1.19oz.
Mounting hole spacing: 40mm/1.25 inches.
Recommended Use: For motor heat dissipation.
