Eyech 3.2mm/1/8” Flex Shaft adapter Attachment, Flexible Drill Shaft Extension keyless Chuck

Specification:

Connecting Rod Size: approx.3mm(1/8")

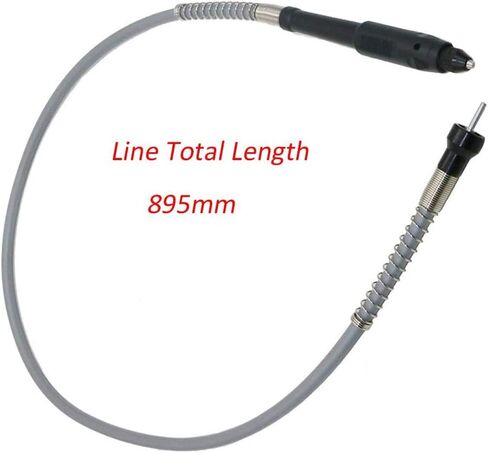

Overall Length: approx. 35.5-Inch/ 90cm

Length of Handle Chuck: 5.5-Inch/ 14cm

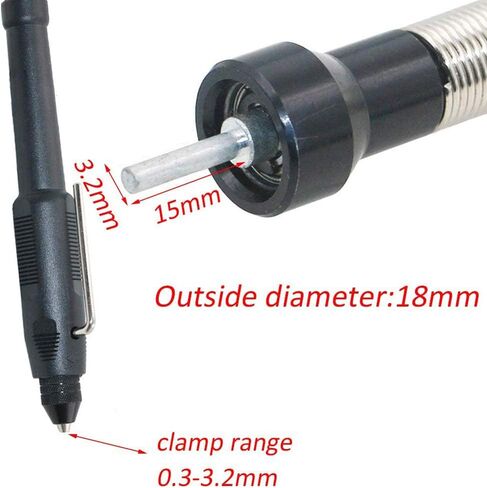

Chuck Clamping Range: 0.01-1/8"/ 0.3-3.2mm

Maximum No Load Speed: 28,000 rpm

Maximum Load Speed: 8000-12000rpm.

Material: Metal, Plastic, Rubber

Warm Tips

◆ When in use, the flex shaft should be hung on the bracket as excessive bending will cause the handle to generate heat, which might cause the hose and the handle to be disengaged. The minimum recommended bend radius is 6”.

◆ When the product lacks torque and excessive vibration, reinstall the flexible shaft and keep it vertical and empty, let the machine find balance before use it.

◆ It is not recommended to cut and use together with the size of accessories larger than 8MM. Injecting some Lubricating oil on bearings and hoses can effectively lubricate and dissipate heat.

Package Included:

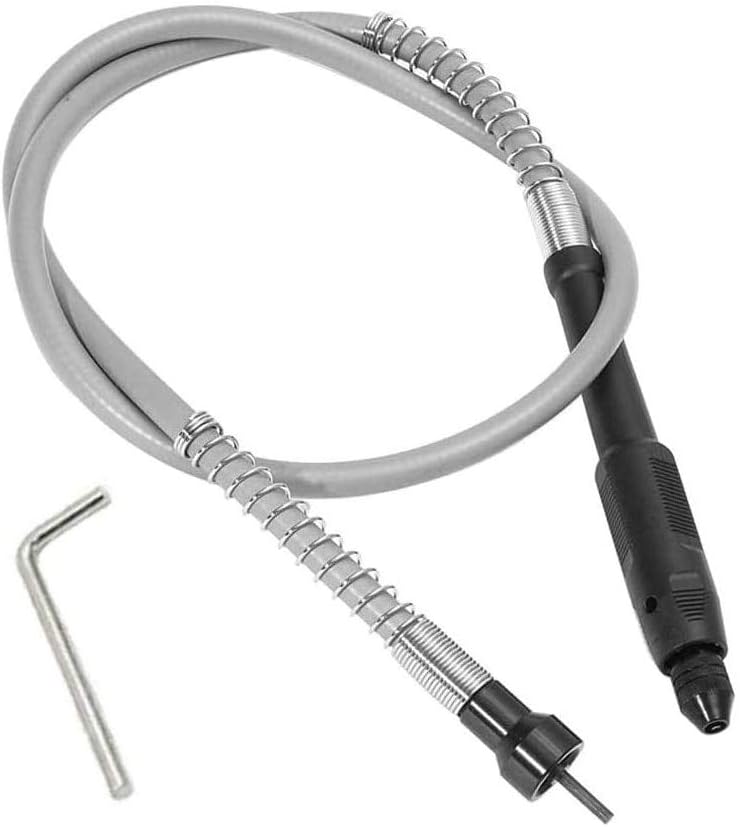

1pc x Flexile Shaft with Chuck
1pc x wrench
