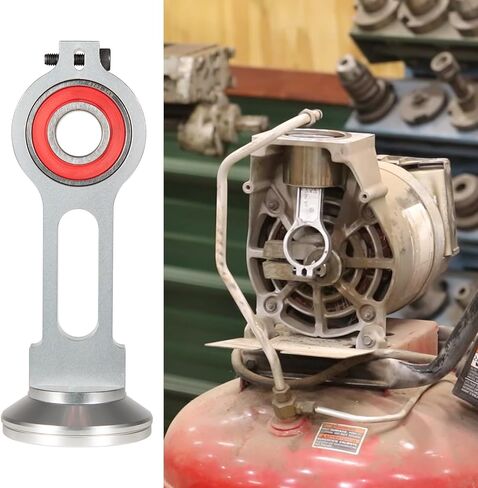

Heavy Duty Replacement Compressor Connecting Rod Kit Replace KK-4835, KK-5081 & A02743and made from solid 6061 Aluminum on a CNC lathe and mill machine.

2-3/8" Cylinder Bore for oil-less single cylinder units.

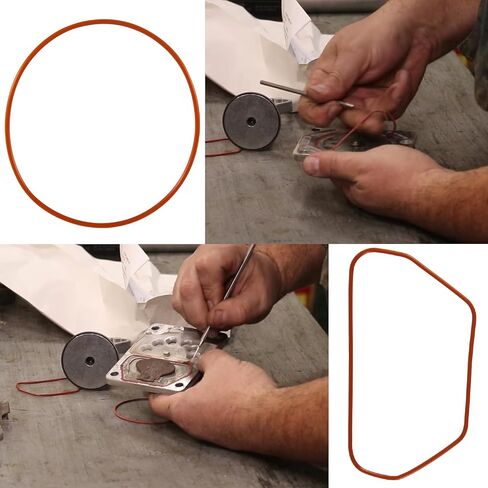

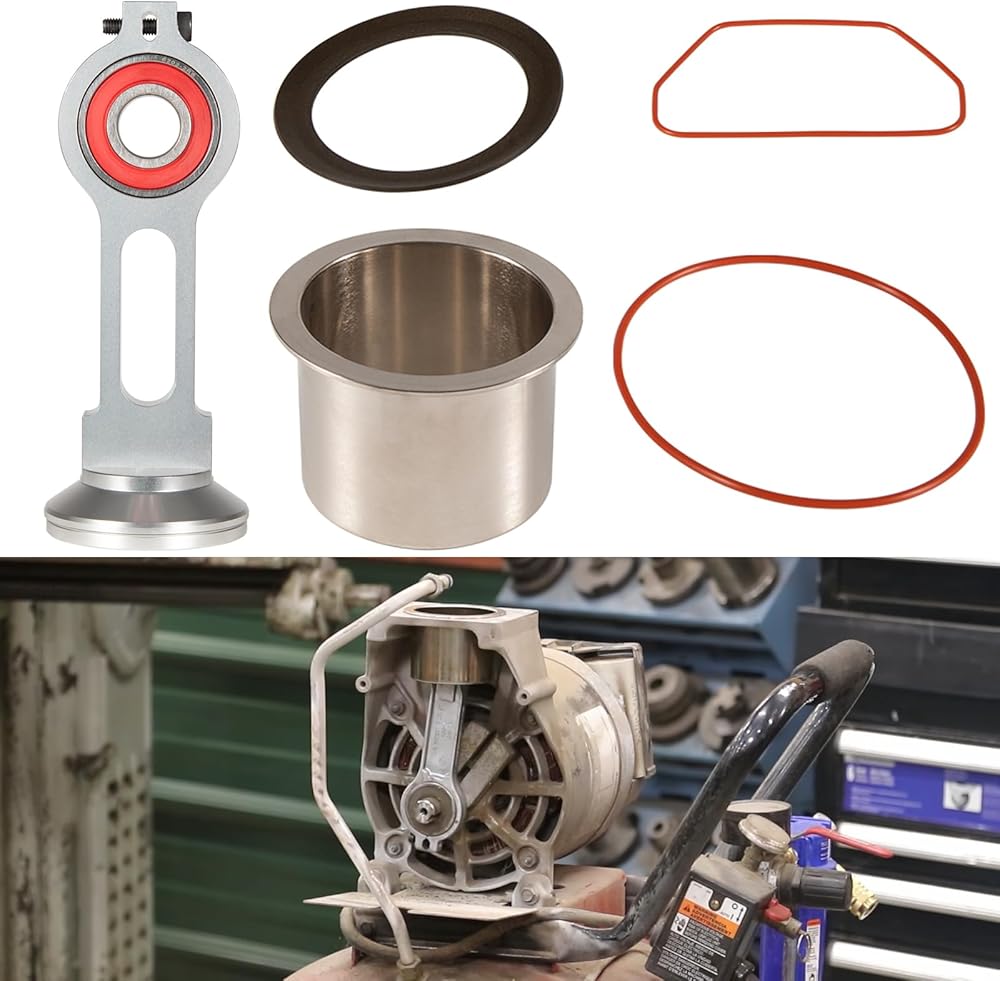

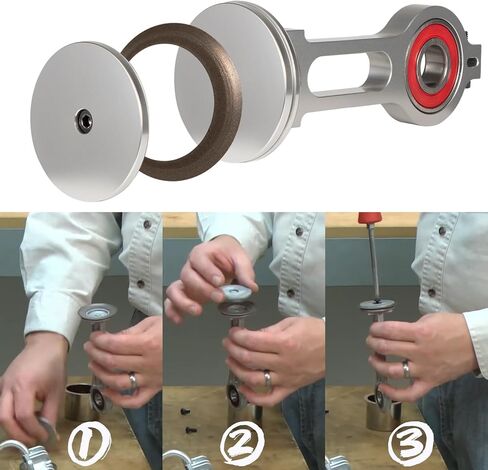

Kit Includes: Connecting Rod, Compression Ring, Piston Rod Cap, Piston Rod Cap Screw, Connecting Rod Screw, Cylinder Sleeve, Valve Plate to Cylinder Sleeve O-Ring, Cylinder head O-Ring & Service instructions for replacing this piston service kit.

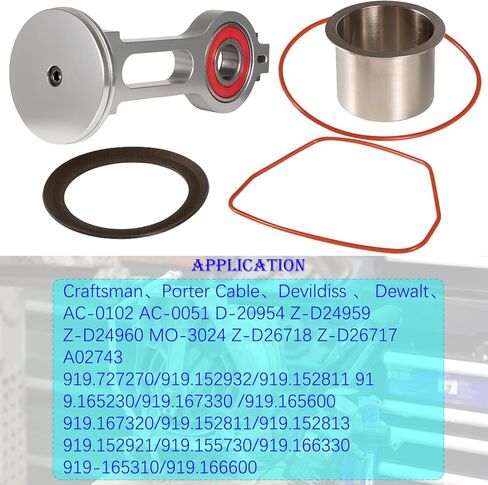

Fits for Dewalt, DeVilbiss, Porter Cable, Charge Pro, Makita, Sears, Ex-Cell, Black & Decker, Delta
AC-0102/AC-0051/ D-20954 /Z-D24959/Z-D24960 MO-3024
Z-D26718/Z-D26717/ A02743
919.152932---919.152811 91---9.165230---919.167330 919.165600
919.167320---919.152811---919.152813---919.152921---919.155730
919.166330---919-165310---919.166600---919.727270

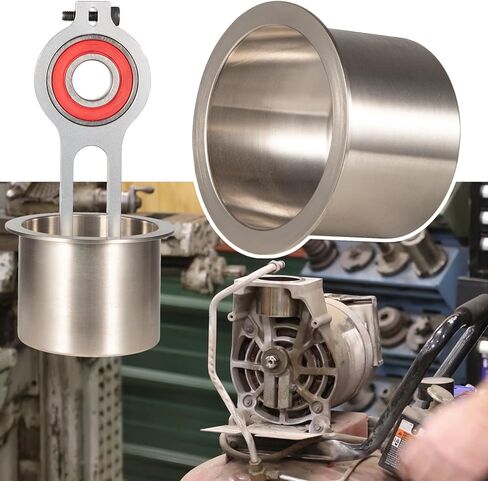

This is the new style connecting rod and cylinder kit and will allow you to replace just the cylinder and piston ring in the future Part Number K-0650.

The Compression Ring is part number DAC-308
Rod Bearing is available Part Number KB-0048

This Kit Replaces Parts Numbers: 889124 , 889125 , 891125 , AC_0788 , D25009 & D25837

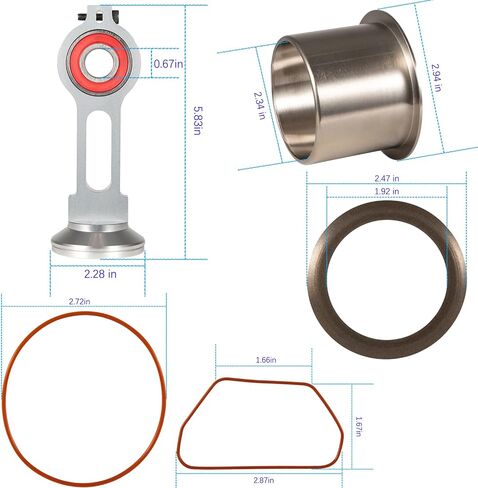

The connecting rod dimensions are approximately:
Connecting rod length: 5.80 inches.
Connecting rod thickness: .465 inches.
Connecting rod width: 1.00 inches.
Rod Cap: 2.240 inches.

The cylinder dimensions are approximately:
ID: 2.365 inches.
OD: 2.465 inches.
Height: 1.980 inches.
