XMSJSIY Mini XLR Panel Mount Socket Jack Connector 4 Pin Mini XLR Female Audio Speaker Mic Microphone Adapter-2 Pcs (4 Pin)

Sorry, this product is not available

Special Features

  • This Mini XLR panel mount connector is mainly used for mini XLR head connection, repair and DIY of professional audio and video equipment.

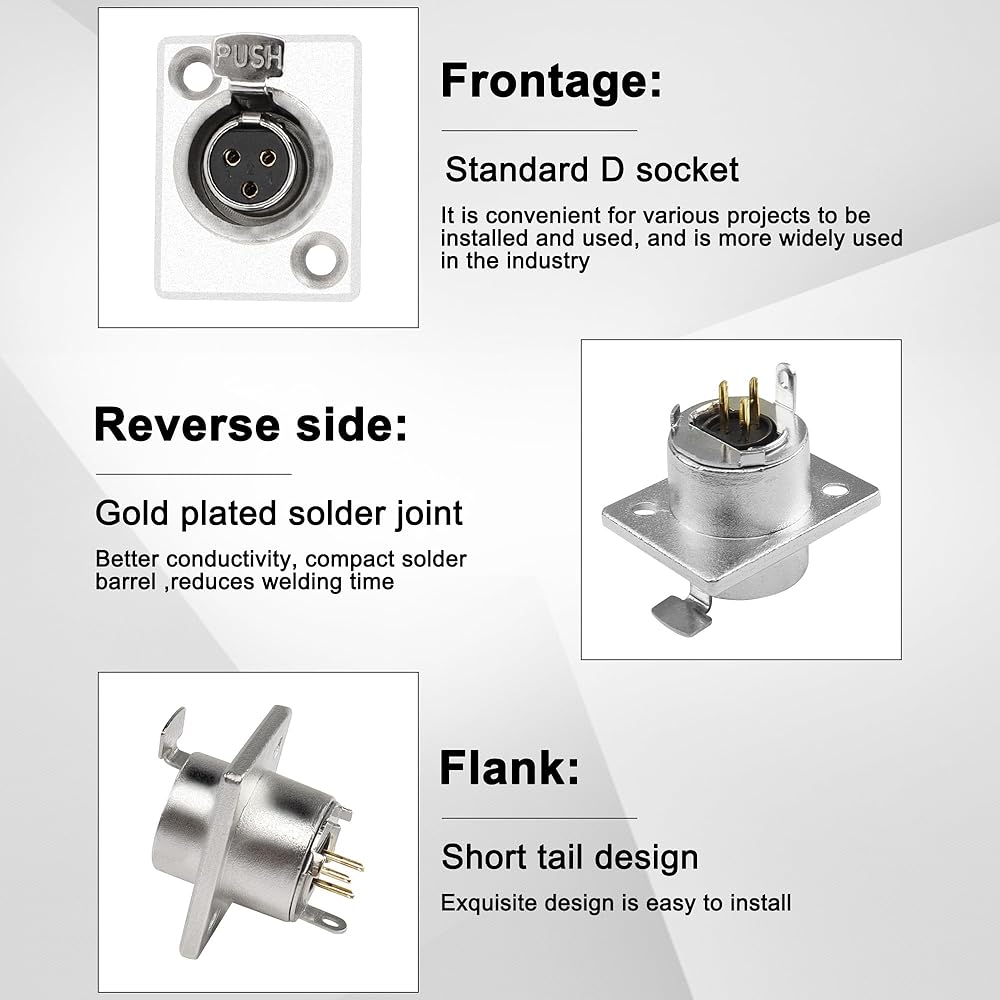

  • This Mini XLR female socket is designed with a zinc alloy housing with a strong metallic feel, excellent electrical conductivity, and a true hi-fi design that ensures a strong transmission of the perfect signal. Beautiful appearance, metal base with a unique welding cup contact, easy to weld.

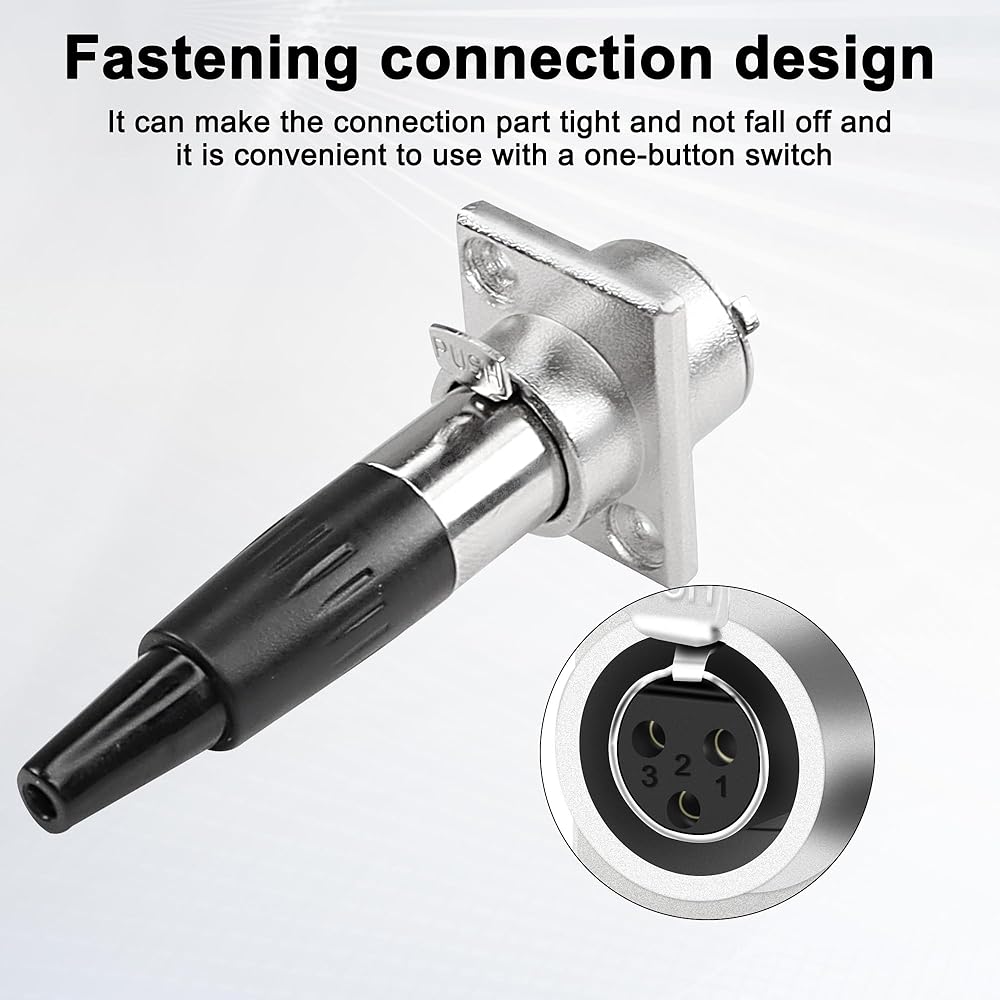

  • The mini XLR female connector has a locking function that keeps the connection part tight and does not fall off, and has a one-touch switch that is mounted above or below the panel for easy installation and reliable performance
  • Plastic mounting plate is firmly riveted to the housing, space saving and light weight
  • Applications for microphones, sound cards, video, mixers, consoles, amplifiers, stage lighting and audio peripherals signal connection, etc.

Description

This mini XLR panel mount connector is suitable for: mixing consoles, microphones, audio, professional cameras, professional stage lighting, microphone amplifiers, which can effectively reduce data loss and ensure high sensitivity of the signal. Adopt the copper core material in the field of audio transmission, nickel-plated interface. With strong conductivity, high fidelity design, to ensure a strong and perfect signal transmission.
Technical parameters:
1. Rated current / voltage: 3A 250VAC
2. Contact resistance: ≤ 5mΩ
3. Insulation resistance: ≥ 1GΩ
4. Test voltage: 1000VDC
5. Lifting diameter: Φ1.0mm
6. Single-leg separation force: 21g (standard gauge)
7. Plugging force: 5~30N
8. Plugging life: >1000 times
9. Ambient temperature: -30～+80℃
10.Applicable wire diameter: Φ1.5～Φ5mm
Package includes: 2*mini XLR female socket
