JST PH Connector Kit 2.0mm 2/3/ 4/5/ 6/7 Pin Housing Female and Male Adapter Cable Connector Plug, JST Connector Female Pin Head Connector Adapter Plug 1170PCS

KWD 10.500
Brand
Zovfam
Weight
222 g
– 1 +

Special Features

  • PRODUCT TYPE: 2/ 3/ 4/ 5/ 6/ 7 Pin 2.0mm pitch jst-ph connector. For PH micro connector fits well with plug. Terminal spacing is 2.0 mm/ 0.08 inch, the pins are sturdy, will not loose easily
  • MATERIAL: JST connector made of durable plastic and metal, tin plating, internal pure copper to increase the conductivity, plastic head at each end. The surface coating antioxidant, increase the life
  • EASY TO USY: This set of connector is easy to install, Just put the crimps in the tool and press them, make the crimp the insulation are all the way toward the wire, Compatible with Arduino and breadboard style pin connectors and sockets.
  • WIDEIL APPLICATION: JST PH connector widely used for speakers, monitors, household appliances, LED lighting, copiers, FAX machines, medical equipment, computers, electronic toys, batteries, circuit boards

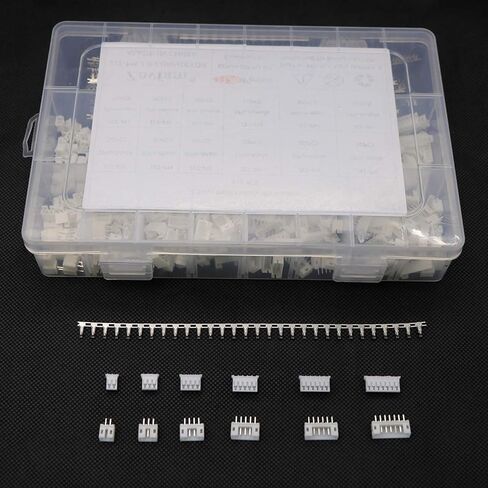

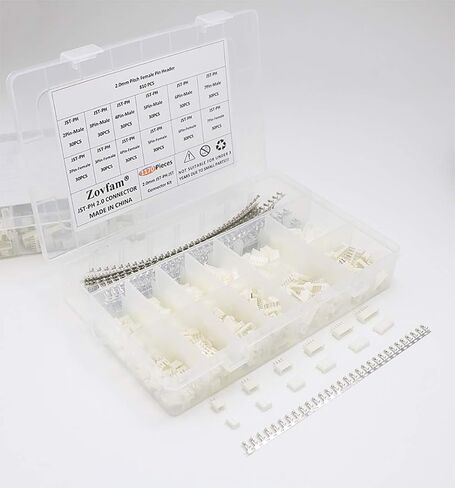

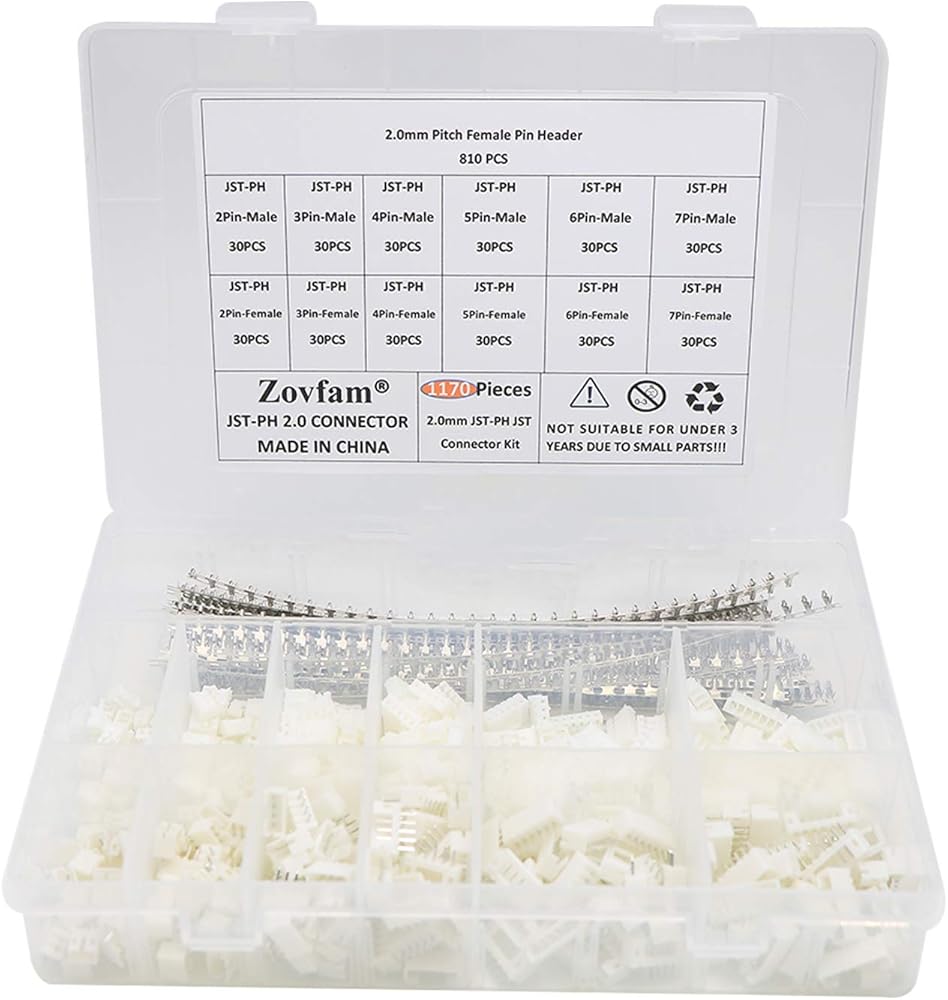

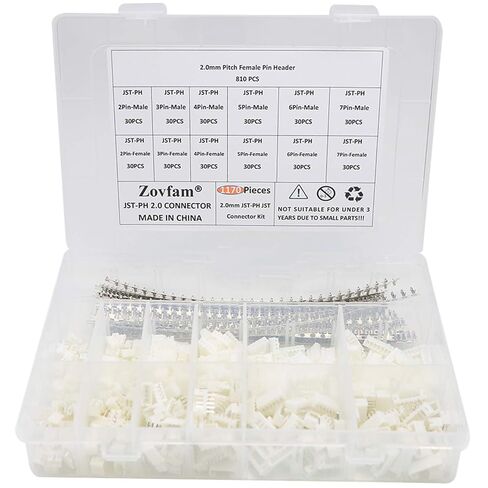

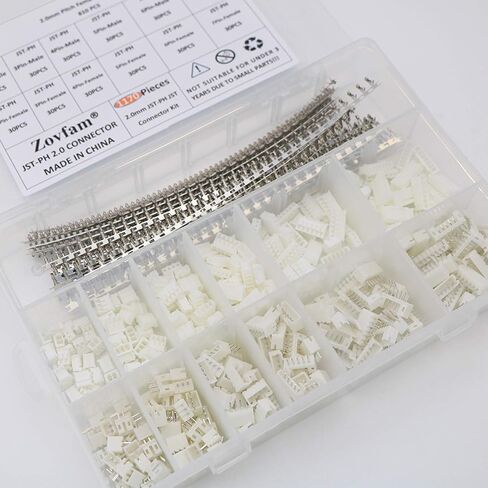

  • PACKAGE: This jst connector kit include 2/3/4/5/6/7 pin male and female housing each 30pcs total 360pcs, with 2.0mm female pin header which are 810pcs, stored in a transparent plastic box

Description

1170 Pieces JST Connector 2.0mm 2/ 3/ 4/ 5/ 6/ 7 Pin Housing Adapter Cable Connector Socket Male and Female with 2.0mm Female Pin Header Connector Perfectly Compatible with JST-PH Connector Kit

Specifications:
-- Pitch: 2.0 mm (0.079 inch)
-- Current Rating: 2A AC,DC (AWG #24)
-- Voltage Rating: 100V AC,DC
--Temperature Range: -25 Degree Celsius to 85 Degree
Celsius(including temperature rise in applying electrical current)
-- Contact Resistance: Initial value/10m Ohm max
-- After Environmental Testing/20 m Ohm max
-- Insulation Resistance: 1000 M Ohm min
-- Withstanding Voltage: 800V AC/minute
-- Applicable Wire: AWG#32 to #24
-- Applicable PC Board Thickness: 0.8 mm to 1.6 mm (0.03 inch to 0.06 inch)

Application:
-- Speakers, Monitors
-- Household Appliances, LED Lighting
-- Copiers, FAX Machines
-- Medical Equipment
-- Computers, Electronic Toys
-- Batteries, Circuit boards

Package Details:

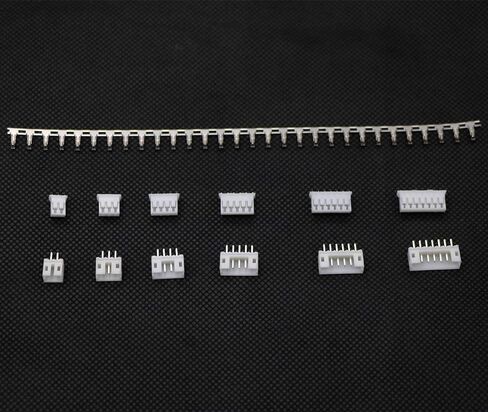

JST 2.0mm PH-2 housing x 30Pcs
JST 2.0mm PH-3 housing x 30Pcs
JST 2.0mm PH-4 housing x 30Pcs
JST 2.0mm PH-5 housing x 30Pcs
JST 2.0mm PH-6 housing x 30Pcs
JST 2.0mm PH-7 housing x 30Pcs

JST PH 2.0mm B2B-PH-Athrough-hole type shrouded header x 30Pcs
JST PH 2.0mm B3B-PH-Athrough-hole type shrouded header x 30Pcs
JST PH 2.0mm B4B-PH-Athrough-hole type shrouded header x 30Pcs
JST PH 2.0mm B5B-PH-Athrough-hole type shrouded header x 30Pcs
JST PH 2.0mm B6B-PH-Athrough-hole type shrouded header x 30Pcs
JST PH 2.0mm B7B-PH-Athrough-hole type shrouded header x 30Pcs
JST-PH Female Pin Connector 810Pcs(2.0mm)
