AITRIP 5pcs Pro Mini ATmega328P 3.3V 8M Module Board with Crystal Oscillator Compatible Arduino Pro Mini Replace ATmega128

KWD 7.500
Brand
AITRIP
Weight
26 g
Color5PCS 3.3V 8MHZ
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • you will get 5PCS Pro Mini Atmega328 3.3V 8Mhz
  • It has been programmed for its bootloader, without the user to buy ISP burner for programming, user-friendly.
  • This board connects directly to the FTDI Basic Breakout board and supports auto-reset.
  • Low-voltage board needs no interfacing circuitry to popular 3.3V devices and modules (GPS, accelerometers, sensors, etc)
  • This is a 3.3V board running the 8MHz bootloader.
  • Note: Pro mini modules have a lower max current draw than the bigger UNOs and MEGAs, so do not run too many things off of VCC.

Description

Specifications:
Main Chip: Atmega328P-AU.
The bootloader is already installed in the board.
Flash Memory: 32 KB of which 2 KB used by bootloader.
8MHz clock frequency.
USB connection off board.
Supports auto-reset.
Max 150mA output.
Over current protected.
Support external power supply 3.3V.
Size: 33mm*18mm*6mm.
14 digital input / output port: RX, TX, D2 ~ D13.
8 analog input ports: A0 ~ A7.
1 pair TTL level serial transceiver port: RX / TX.
6 PWM ports: D3, D5, D6, D9, D10, D11.

Package included:

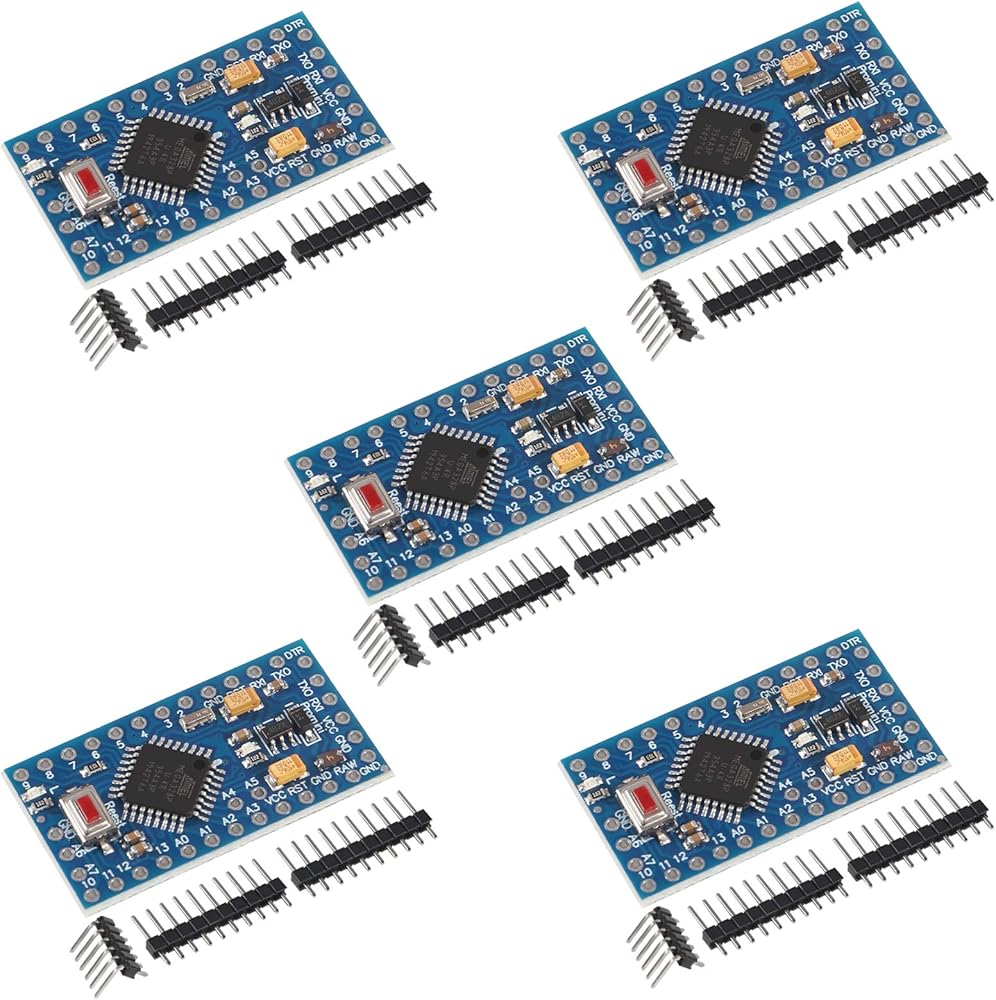

5PCS* Pro Mini ATMEGA328P 3.3V 8MHz Module
