Specifications:
Model: 8102-T2
Main control chip: RTL8111G*2
Bus interface: PCI-E (supports PCI-EX1x4x8x16)
Network interface: RJ-45*2
Transmission rate: 10/100/1000Mbps
Support system: for XP for WIN7 for WIN8 for WIN8.1 for WIN10, for LINUX and other 99% of the operating system on the market
Soft routing, for NAS, virtualization and other special applications
Compliant with PCI Express Base Specification 2.0 (5GTs) and backwards compatible with Specification 1.1 and 1.0A PC Power Management Specification 1.2.
Support 10/100/1000 automatic configuration.
Supports exchange/polarity/skew correction, cross detection and automatic correction.
Support wake up LAN and remote call.
Support NDIS5, NDIS6 checksum offload (IPV4, IPv6, TCP, UDP) and split tasks, offload (large transfer v1 and mass transfer v2).
Support EMAC-393 ECMA ProxZzzy host sleep standard.
Support full duplex flow control (IEEE802.3X).
Support for jumbo frames.
Fully compliant with IEEE802.3, IEEE802.3u standard, IEEE802.3ab standard.
Support IEEE802.1p Layer 2 priority coding (prioritization).
Support IEEE802.1QVIAN mark (virtual local area network).
Support IEEE802.3az-2010 (EEE).
Support power off / offline power save / PHY disable mode.
Support PCI message signal interruption (MSI and MSI-X).
Support for quad-core receiver adjustment (RSS).
Support for protocol offload function (ARP&NS).
Supports two 1-channel 2.5Gbps PCI Express buses.
Support for hardware error correction code (ECC) function.
Support for hardware cyclic redundancy check (CRC) function.

Package List:
1 * Network card

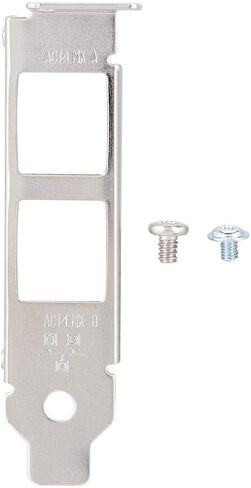

1 * Half height baffle
1 * Screw Bag
